RAM Handlebar U-Bolt Double Ball Mount
RAM Handlebar U-Bolt Double Ball Mount
Regular price
$52.49 USD
Regular price
Sale price
$52.49 USD
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
Ball Size:
B Size 1"
UPC:
793442943614
Mfg Part #:
RAM-B-149Z-AP11
Availability:
Out Of Stock
Part Number:
RAM-B-149Z-AP11
Quantity
Couldn't load pickup availability
Share
- Description
- Additional Info
- Components

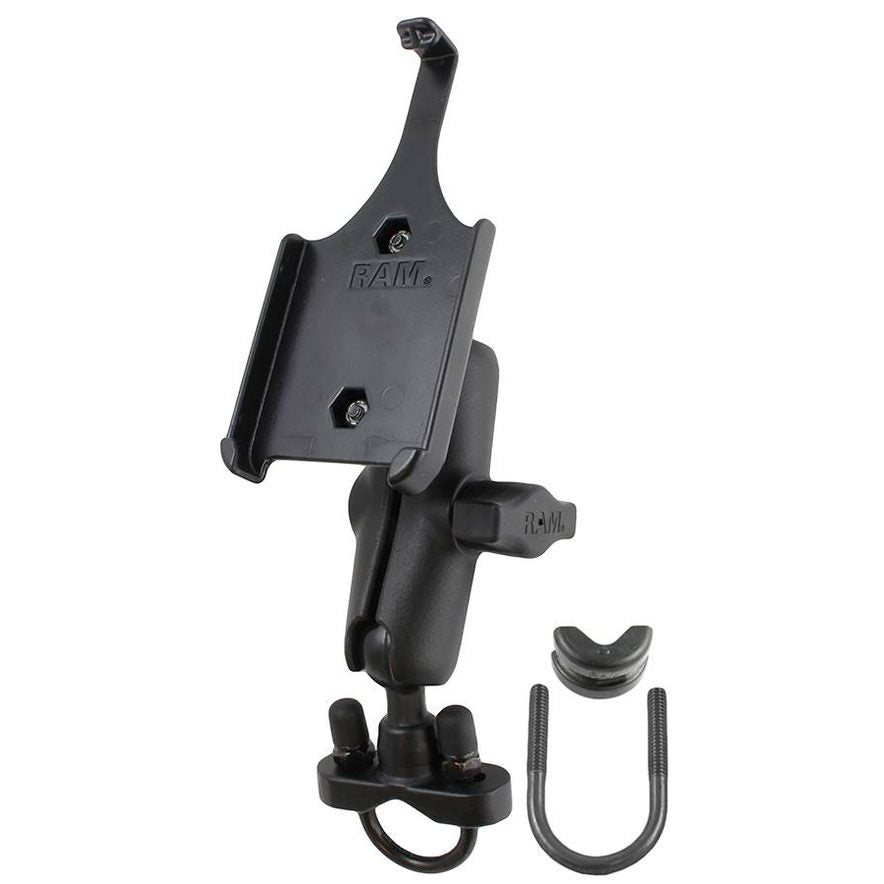

The RAM-B-149Z-AP11 consists of a zinc coated u-bolt base, double socket arm and high strength
composite cradle. Included in this package is hardware that will accommodate rails from 0.50" to
1.25" in diameter. The base includes black cover caps to be placed over the exposed ends of the
u-bolt. The included composite rail adapter can narrow the rail to a minimum width of 0.5". The
mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment
points at both ends of the double socket arm; this allowing for almost infinite adjustment and
perfect viewing angles.
HARDWARE INCLUDED
Assembly Hardware
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
CLAMP RANGE
.5" - 1.25" diameter
SOCKET-TO-SOCKET LENGTH
3"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
High strength composite
PACKAGING TYPE
Retail Bag
WEIGHT
0.72 lbs.
composite cradle. Included in this package is hardware that will accommodate rails from 0.50" to
1.25" in diameter. The base includes black cover caps to be placed over the exposed ends of the
u-bolt. The included composite rail adapter can narrow the rail to a minimum width of 0.5". The
mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment
points at both ends of the double socket arm; this allowing for almost infinite adjustment and
perfect viewing angles.
HARDWARE INCLUDED
Assembly Hardware
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
CLAMP RANGE
.5" - 1.25" diameter
SOCKET-TO-SOCKET LENGTH
3"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
High strength composite
PACKAGING TYPE
Retail Bag
WEIGHT
0.72 lbs.
U-Bolt Dimensions:
- Accommodates rails from 0.5" to 1.25" in diameter
- Material:High Strength Composite and Powder Coated Marine Grade Aluminum
- Ball Size:B Size 1" Rubber Ball
- Note:Part number reflects product packaged in clear clam shell for store shelf display.
- Weight:0.72 lbs.
