RAM Handlebar U-Bolt Double Ball Moun

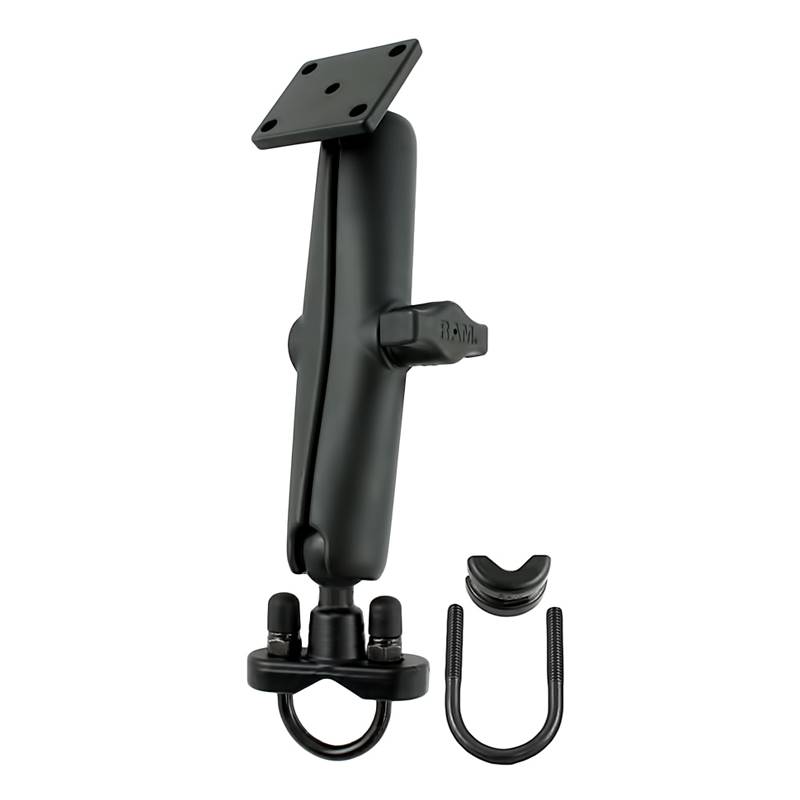

The RAM-B-149Z-C-347U consists of a zinc coated u-bolt base, LONG double socket arm and square
adapter base that contains the universal AMPs hole pattern.. Included in this package is hardware
that will accommodate rails from 0.50" to 1.25" in diameter. The base includes black cover caps to
be placed over the exposed ends of the u-bolt. The included composite rail adapter can narrow the
rail to a minimum width of 0.5". The square adapter base contains four pre-drilled holes at each
corner, making the universal 1.5 x 1.188 (hole spacing) AMPS hole pattern. The mount is designed
with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both
ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing
angles.

HARDWARE INCLUDED
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

CLAMP RANGE
.5" - 1.25" diameter

SOCKET-TO-SOCKET LENGTH
5.31"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum

PACKAGING TYPE
Poly Bag

WEIGHT
0.87 lbs.
