RAM Handlebar U-Bolt Double Ball Mount 1

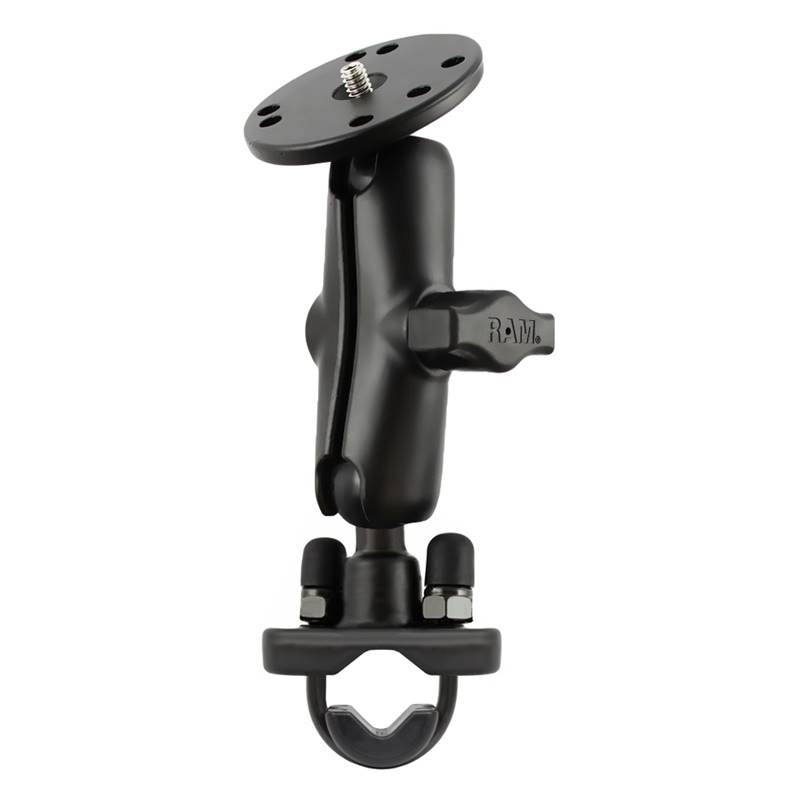

The RAM-B-149Z-C1U consists of a zinc coated u-bolt base, standard size double socket arm and
universal 1/4"-20 thread, centered on a 2.5" diameter plate. The male 1/4" long, 1/4"-20 thread in
the middle of the 2.5" diameter plate will connect to the standard female thread found at the bottom
of most still and video cameras. Included in this package is hardware that will accommodate rails
from 0.50" to 1.25" in diameter. The base includes black cover caps to be placed over the exposed
ends of the u-bolt. The included composite rail adapter can narrow the rail to a minimum width of
0.5". The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has
adjustment points at both ends of the double socket arm; this allowing for almost infinite
adjustment and perfect viewing angles.

HARDWARE INCLUDED
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

CLAMP RANGE
.5" - 1.25" diameter

SOCKET-TO-SOCKET LENGTH
3"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum

PACKAGING TYPE
Poly Bag

WEIGHT
0.67 lbs.
