RAM Handlebar U-Bolt Mount for Garmin

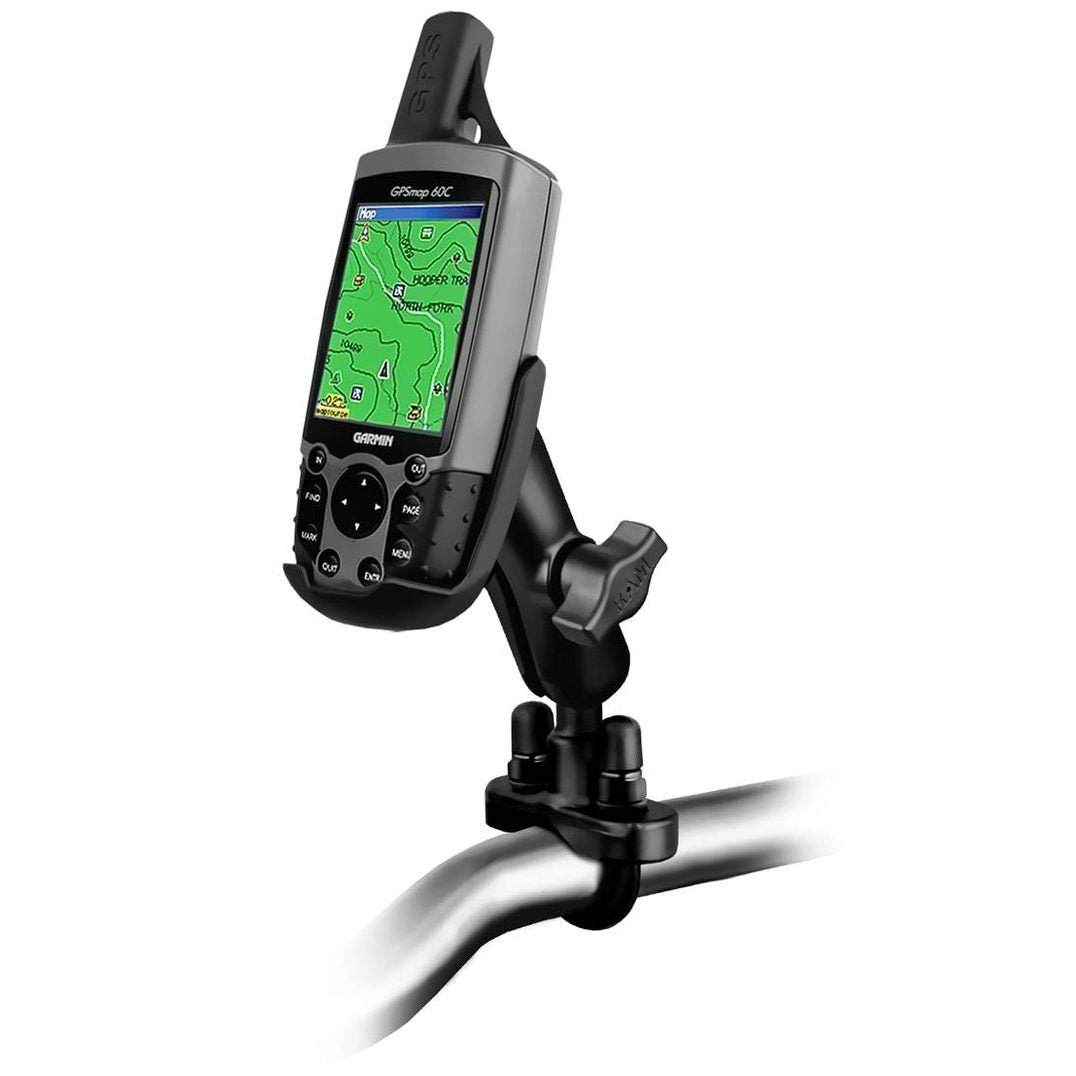

The RAM-B-149Z-GA12U consists of a zinc coated u-bolt base, double socket arm, diamond adapter base
and custom high strength composite cradle for the Garmin GPSMAP. Designed into the mount is a 1"
diameter patented rubber ball and socket system with adjustment points at the base and cradle. With
a twist of the arm knob, you can move the Garmin GPSMAP mount to your optimum viewing position.
Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter.

HARDWARE INCLUDED
Assembly Hardware
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

CLAMP RANGE
.5" - 1.25" diameter

SOCKET-TO-SOCKET LENGTH
3"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag

ADDITIONAL INFORMATION
This mount requires the standard belt clip button which is included with the purchase of the GPS
unit from Garmin.

WEIGHT
0.63 lbs.
