RAM U-Bolt Double Ball Mount for Garmi
RAM U-Bolt Double Ball Mount for Garmi
Regular price
$52.49 USD
Regular price
Sale price
$52.49 USD
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
Ball Size:
B Size 1"
UPC:
793442000812
Mfg Part #:
RAM-B-149Z-GA16U
Availability:
Out Of Stock
Part Number:
RAM-B-149Z-GA16U
Quantity
Couldn't load pickup availability
Share
- Description
- Additional Info
- Components

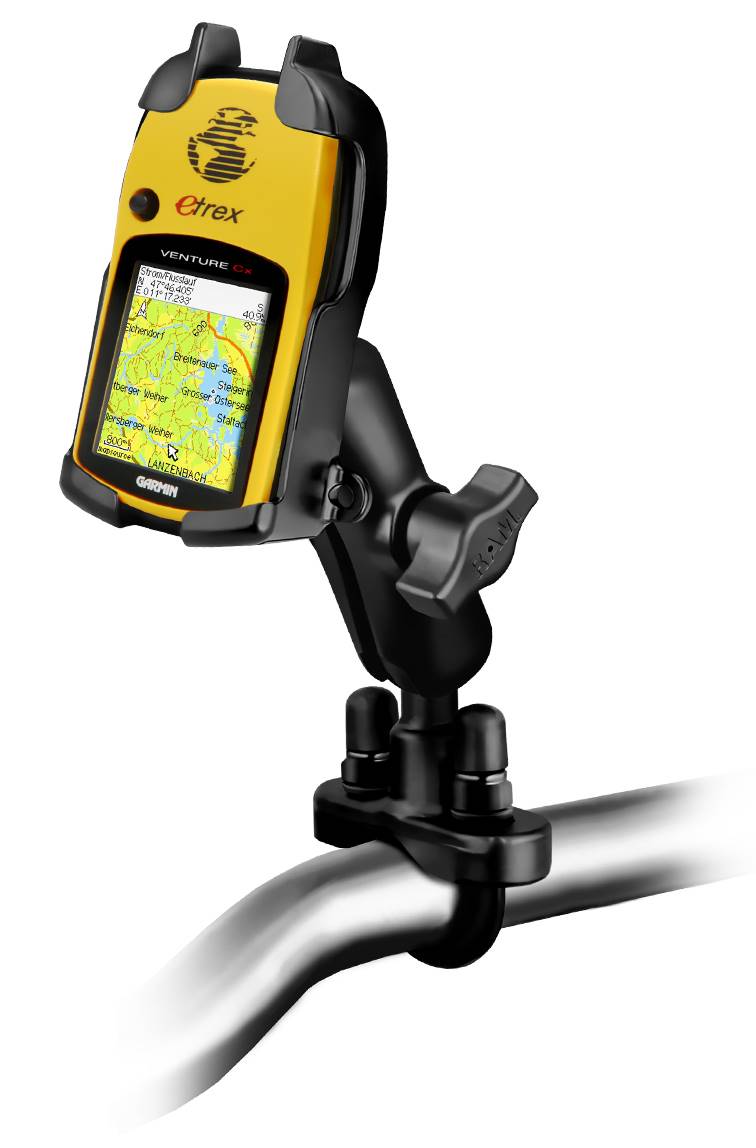

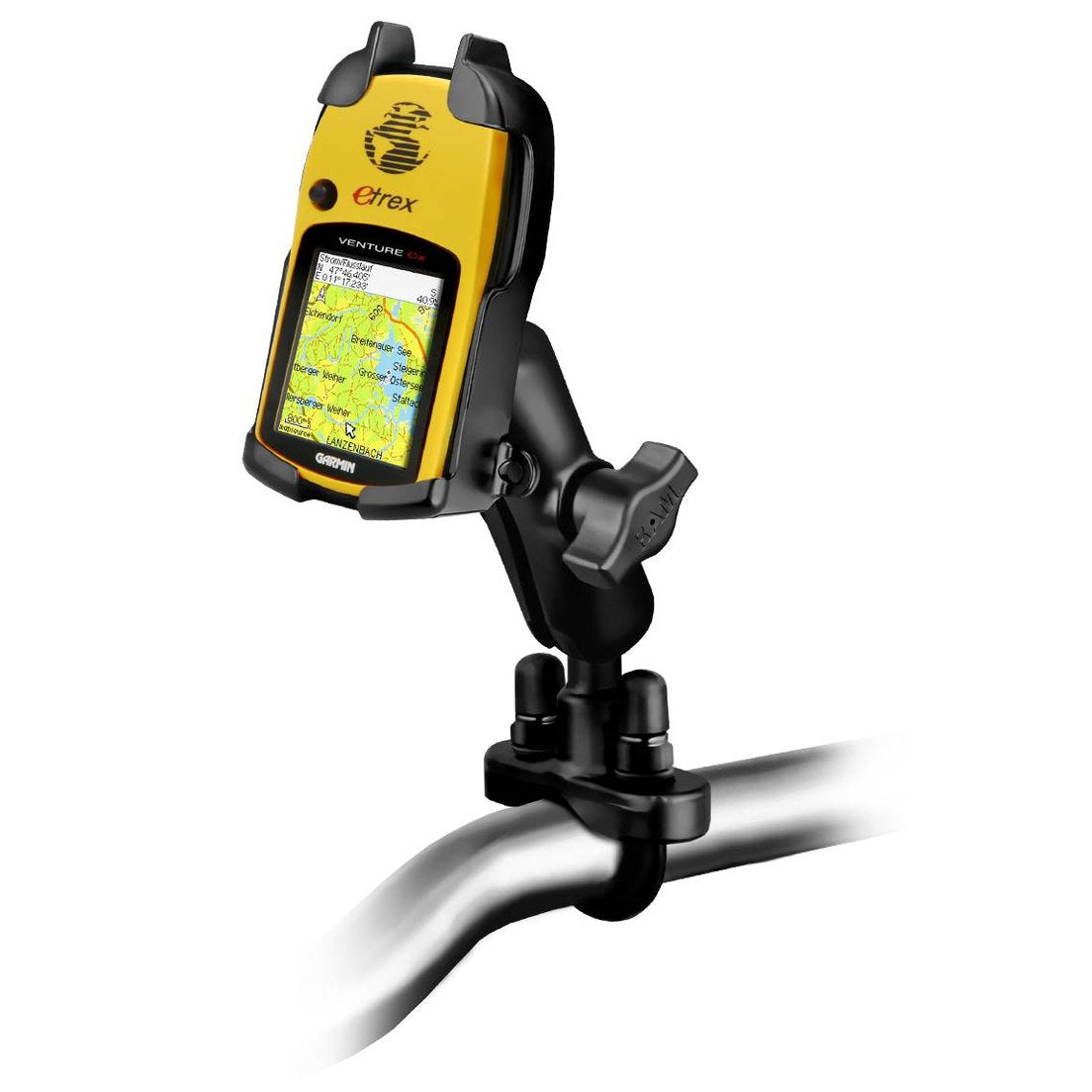

The RAM-B-149Z-GA16U consists of a zinc coated u-bolt base, double socket arm, diamond adapter base
and custom high strength composite cradle for the Garmin eTrex. Designed into the mount is a 1"
diameter patented rubber ball and socket system with adjustment points at the base and cradle. With
a twist of the arm knob, you can move the Garmin eTrex mount to your optimum viewing position.
Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter.
HARDWARE INCLUDED
Assembly Hardware
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
CLAMP RANGE
.5" - 1.25" diameter
SOCKET-TO-SOCKET LENGTH
3"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
High strength composite
PACKAGING TYPE
Poly Bag
WEIGHT
0.65 lbs.
and custom high strength composite cradle for the Garmin eTrex. Designed into the mount is a 1"
diameter patented rubber ball and socket system with adjustment points at the base and cradle. With
a twist of the arm knob, you can move the Garmin eTrex mount to your optimum viewing position.
Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter.
HARDWARE INCLUDED
Assembly Hardware
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
CLAMP RANGE
.5" - 1.25" diameter
SOCKET-TO-SOCKET LENGTH
3"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
High strength composite
PACKAGING TYPE
Poly Bag
WEIGHT
0.65 lbs.
U-Bolt Dimensions:
- 0.50" to 1.25"
- Material:High Strength Composite and Powder Coated Marine Grade Aluminum
- Ball Size:B Size 1" Rubber Ball
- Note:The "U" in the part number reflects product packaged in poly bag.
- Weight:0.65 lbs.
