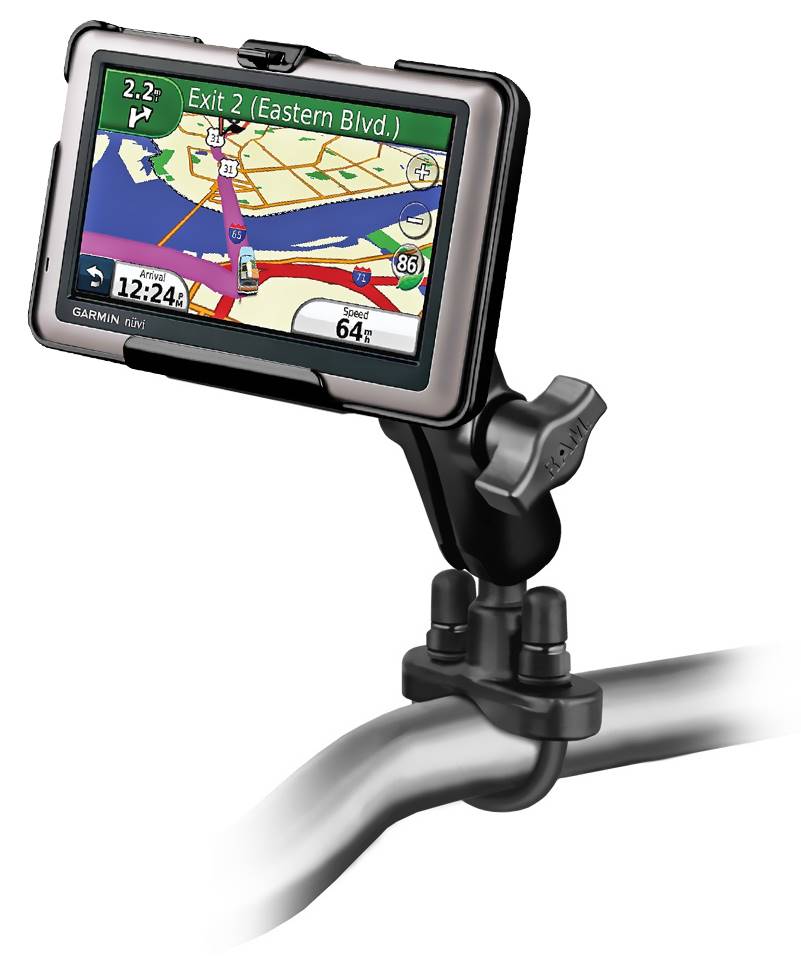

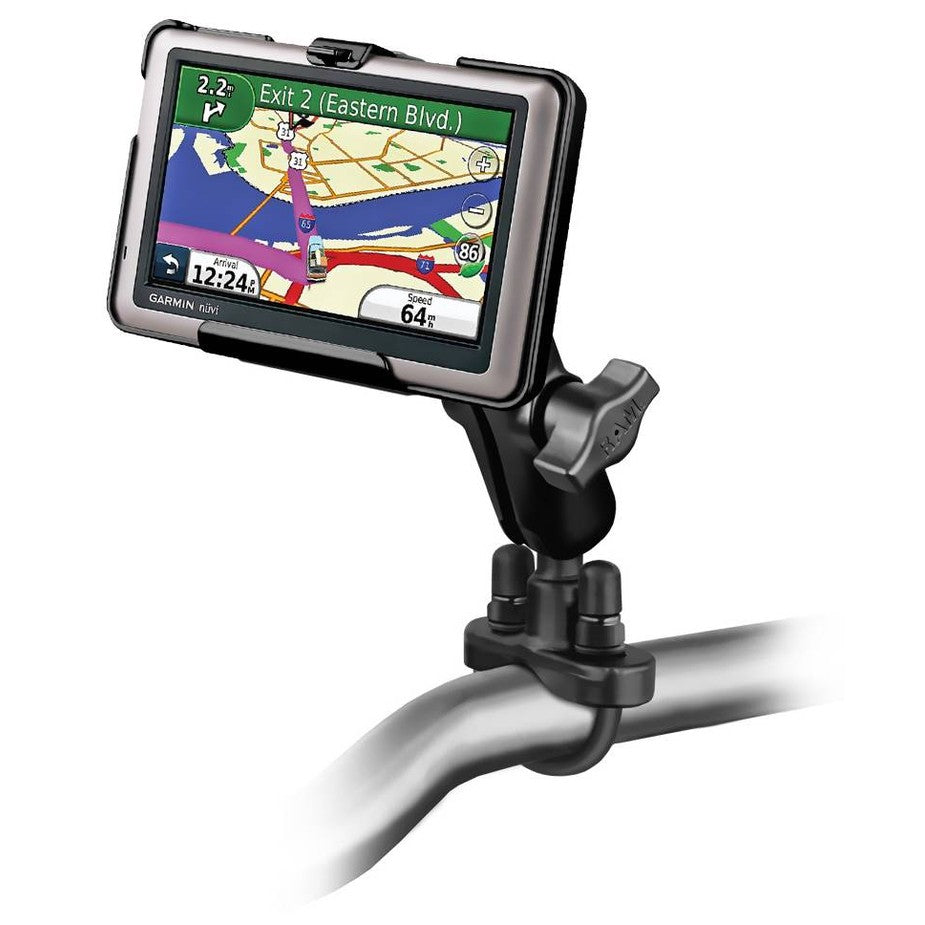

RAM Handlebar U-Bolt Double Ball Mount

The RAM-B-149Z-GA35U consists of a zinc coated u-bolt base, double socket arm, diamond base adapter
and custom form-fitted cradle. Included in this package is hardware that will accommodate rails from
0.50" to 1.25" in diameter. The base includes black cover caps to be placed over the exposed ends of
the u-bolt. The included composite rail adapter can narrow the rail to a minimum width of 0.5". The
mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment
points at both ends of the double socket arm, allowing for almost infinite adjustment and perfect
viewing angles.

HARDWARE INCLUDED
Assembly Hardware
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

CLAMP RANGE
.5" - 1.25" diameter

SOCKET-TO-SOCKET LENGTH
3"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag

WEIGHT
0.68 lbs.
