RAM Handlebar U-Bolt Double Ball Mount

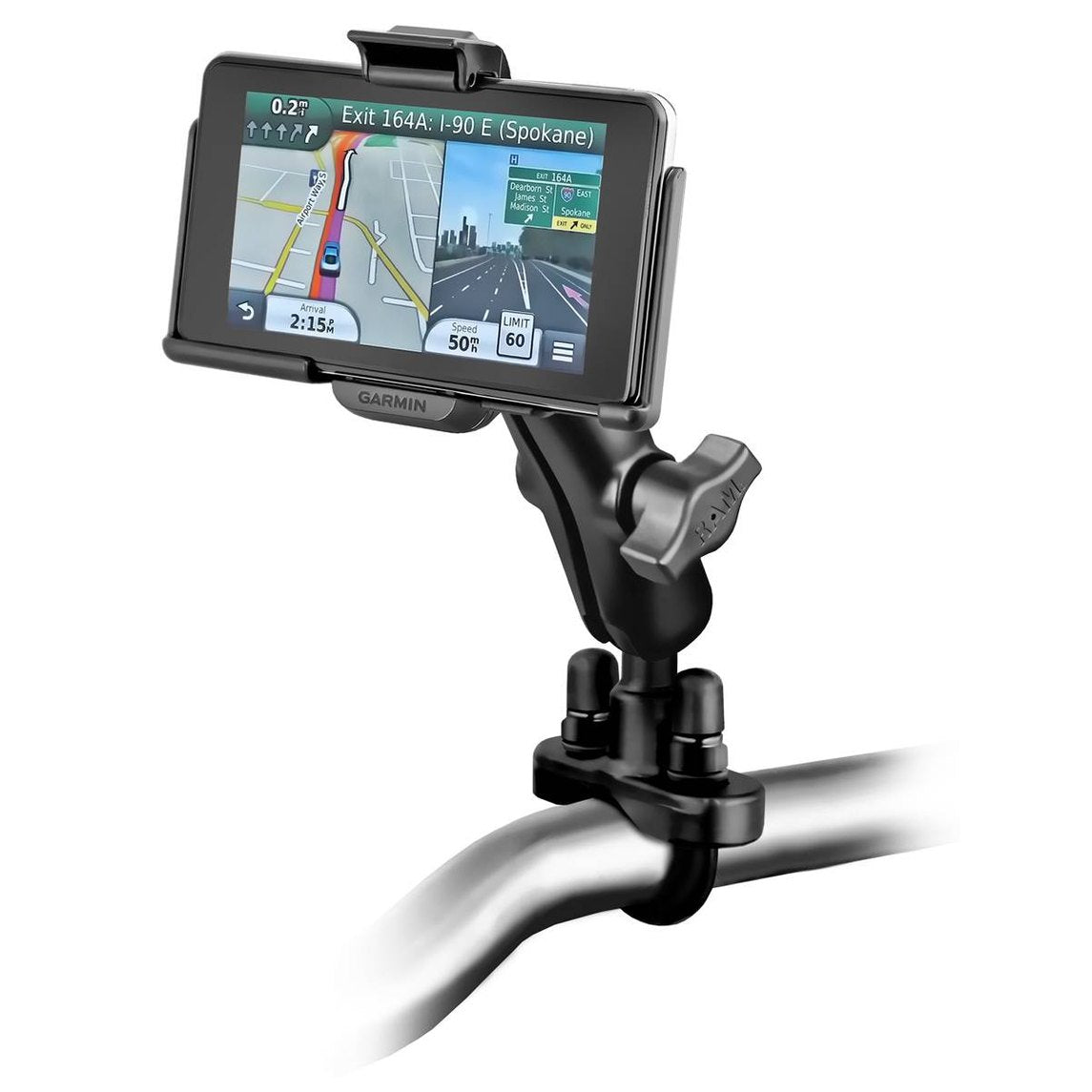

The RAM-B-149Z-GA39U consists of a zinc coated u-bolt base, double socket arm, diamond adapter base
and high strength composite cradle for Garmin nuvi 3000 series GPS devices. The mount is designed
with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both
ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing
angles. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in
diameter. Also included are black cover caps to be placed over the exposed ends of the u-bolt and a
composite adapter that can narrow the rail to a minimum width of 0.5".

HARDWARE INCLUDED
Assembly Hardware
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

CLAMP RANGE
.5" - 1.25" diameter

SOCKET-TO-SOCKET LENGTH
3"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag

WEIGHT
0.68 lbs.
