RAM Handlebar U-Bolt Mount for Garmin

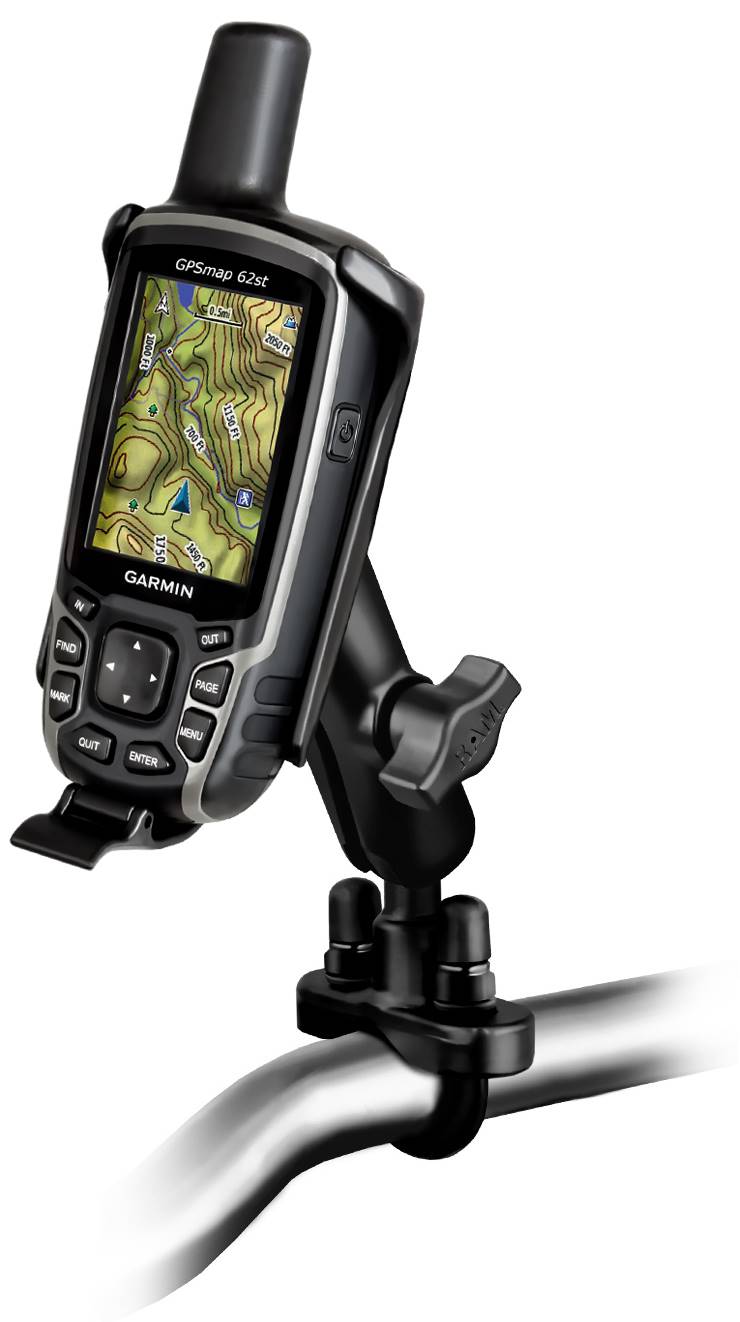

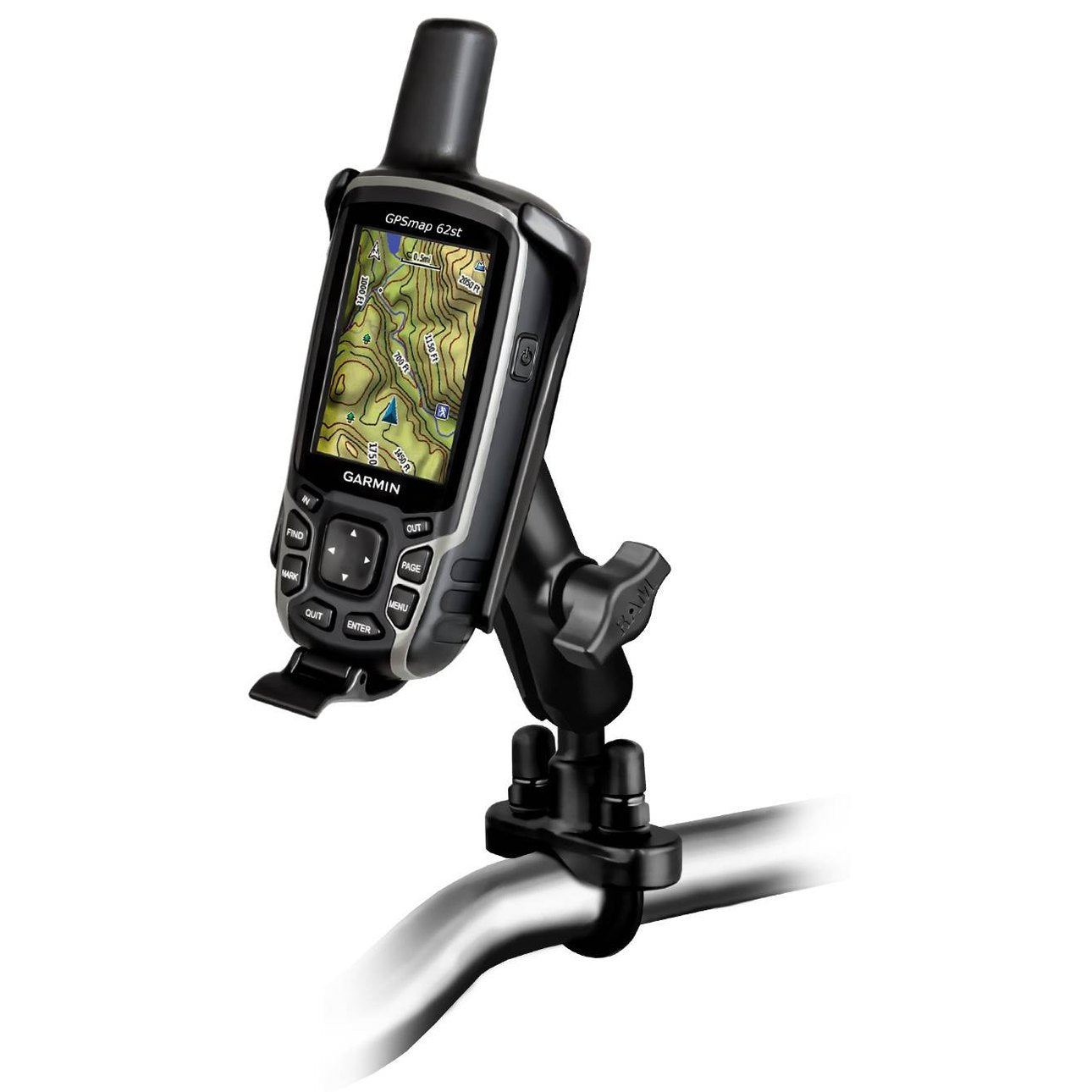

The RAM-B-149Z-GA41U consists of a zinc-coated U-bolt base, medium length double socket arm, and
high-strength composite cradle with diamond ball base. Included in this kit is hardware that will
accommodate rails from 0.5" to 1.25" in diameter. The base includes black cover caps to be placed
over the exposed ends of the U-bolt. The included composite rail adapter can narrow the rail to a
minimum width of 0.5". The mount is designed with a B size 1" rubber ball and socket system that has
adjustment points at both ends of the double socket arm, allowing for near-infinite adjustability
and ideal viewing angles.

HARDWARE INCLUDED
Assembly Hardware
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

CLAMP RANGE
.5" - 1.25" diameter

SOCKET-TO-SOCKET LENGTH
3"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag

FEATURES:
Complete GPS mounting kit for handlebars includes zinc-coated U-bolt base that accommodates rails
from .5" to 1.25" in diameter, medium length B size RAM double socket arm, diamond base ball
adapter, and form-fit GPS cradle

RAM Mounts ball and socket technology allows for near-infinite adjustability on bicycle and
motorcycle handlebars

Made of powder-coated, marine-grade aluminum and high-strength composite for durability and
reliability in the most demanding environments

Backed by a lifetime warranty


WEIGHT
0.73 lbs.
