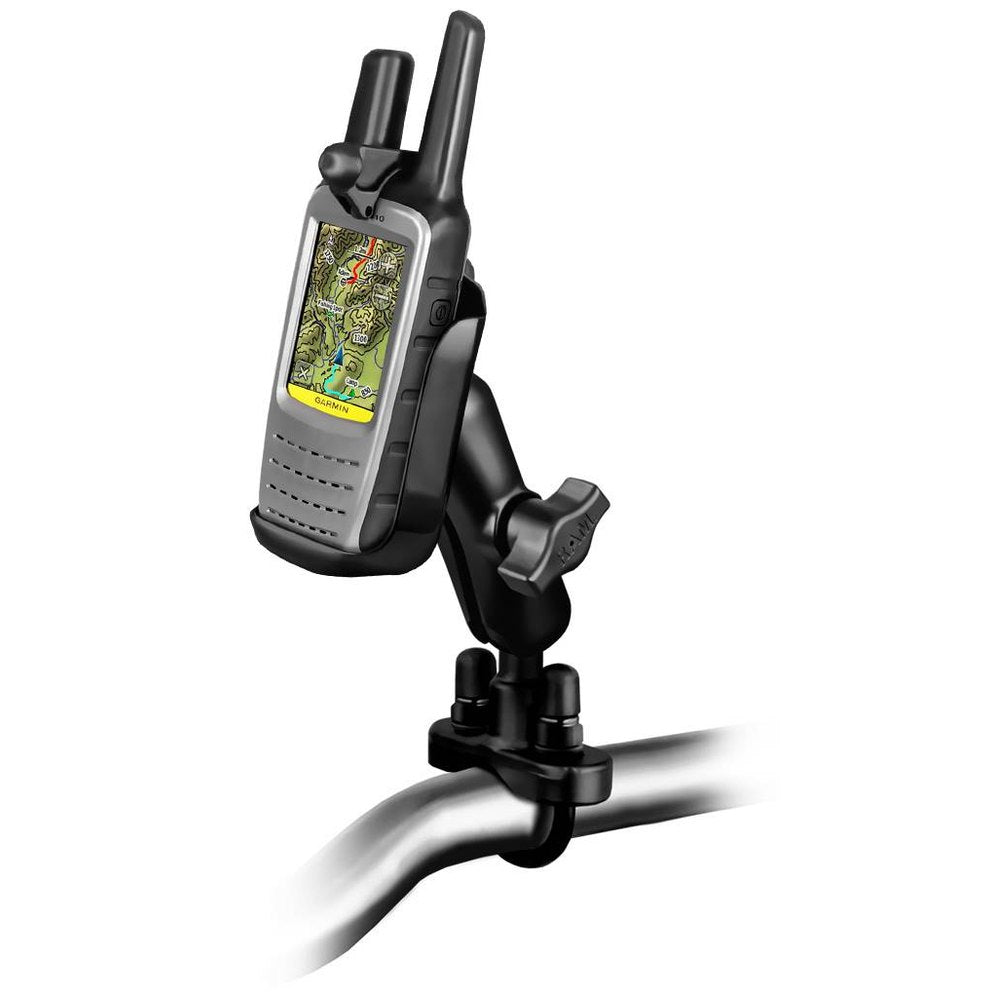

RAM Handlebar U-Bolt Double Ball Mount

The RAM-B-149Z-GA47 consists of a double socket arm, zinc coated u-bolt base, diamond adapter base
and custom high strength composite cradle for the Garmin Rino 600 series. Designed into the mount is
a 1" diameter patented rubber ball and socket system with adjustment points at the base and cradle.
With a twist of the arm knob, you can move the motorcycle Rino mount to your optimum viewing
position. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in
diameter. Also included are black cover caps to be placed over the exposed ends of the u-bolt and a
composite adapter that can narrow the rail to a minimum width of 0.5".

HARDWARE INCLUDED
Assembly Hardware
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

CLAMP RANGE
.5" - 1.25" diameter

SOCKET-TO-SOCKET LENGTH
3"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Retail Bag

WEIGHT
0.68 lbs.
