RAM U-Bolt Double Ball Mount with Acti

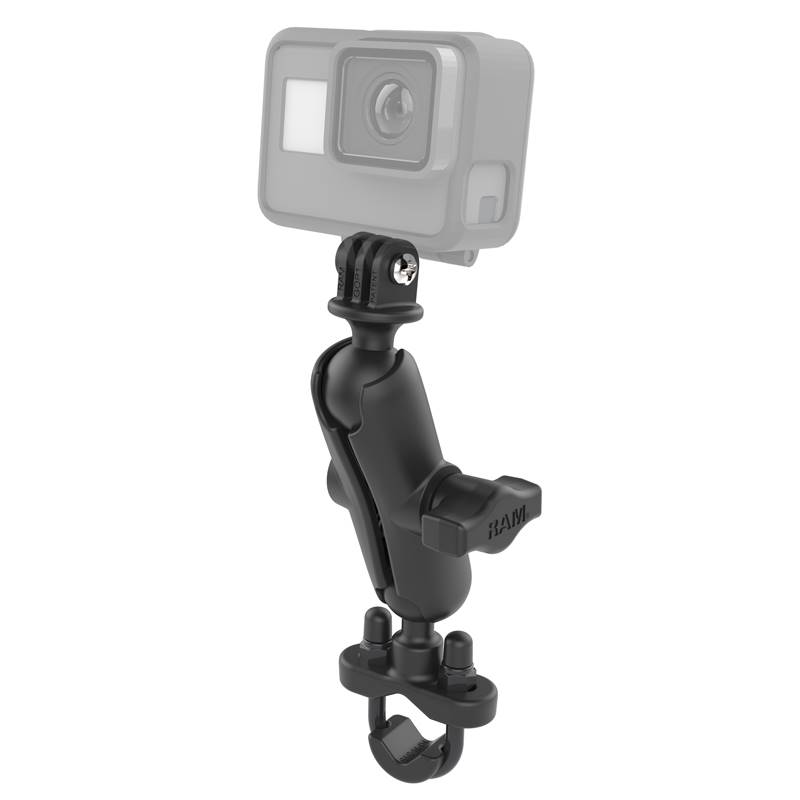

The RAM-B-149Z-GOP1U consists of a zinc coated u-bolt base, standard size double socket arm and 1"
diameter ball with custom GoPro Hero adapter. The mount is designed with a RAM 1" diameter patented
rubber ball and socket system that has adjustment points at both ends of the double socket arm; this
allowing for almost infinite adjustment and perfect viewing angles. Included in this package is
hardware that will accommodate rails from 0.50" to 1.25" in diameter. The base includes black cover
caps to be placed over the exposed ends of the u-bolt. The included composite rail adapter can
narrow the rail to a minimum width of 0.5". The GoPro Hero adapter attaches directly to the under-
side of the camera, replacing the factory mounting bracket.

HARDWARE INCLUDED
Assembly Hardware
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

CLAMP RANGE
.5" - 1.25" diameter

SOCKET-TO-SOCKET LENGTH
3"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag

WEIGHT
0.6 lbs.
