RAM Handlebar U-Bolt Base with Double S
RAM Handlebar U-Bolt Base with Double S
Regular price
$33.49 USD
Regular price
Sale price
$33.49 USD
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
Ball Size:
B Size 1"
UPC:
793442907012
Mfg Part #:
RAM-B-149Z-QU1U
Availability:
In Stock
Part Number:
RAM-B-149Z-QU1U
Quantity
Couldn't load pickup availability
Share
- Description
- Additional Info
- Components

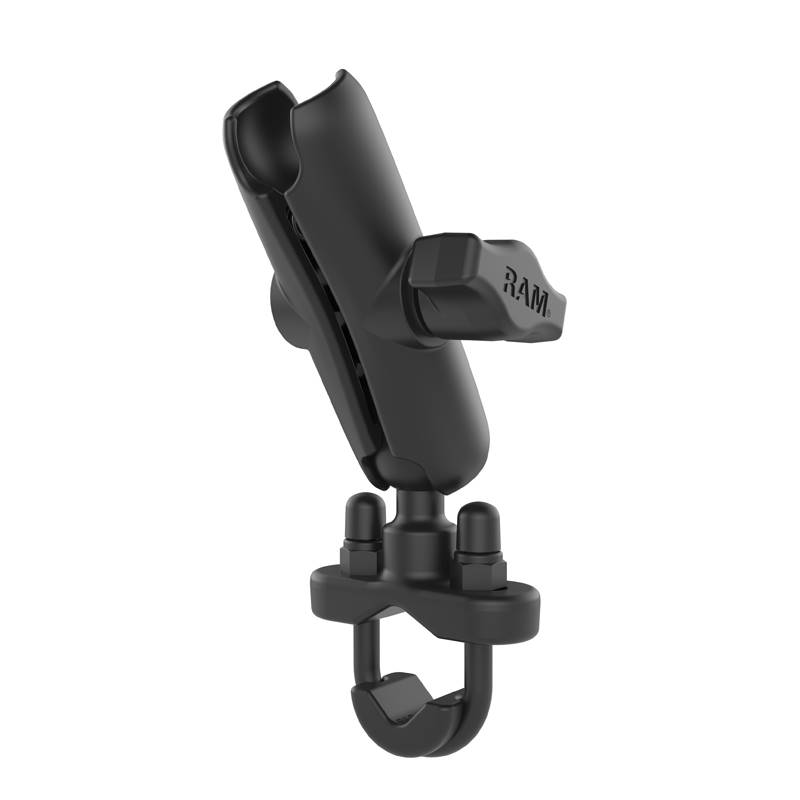

The RAM-B-149Z-QU1 consists of a zinc coated u-bolt base and double socket arm. The mount is
designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at
both ends of the double socket arm. The zinc coated u-bolt base Accommodates rails from 0.5" to 1"
in diameter and includes black cover caps to be placed over the exposed ends of the u-bolt. This is
a universal mounting solution for the RAM cradles with a 1 inch ball.
HARDWARE INCLUDED
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
CLAMP RANGE
.5" - 1.25" diameter
SOCKET-TO-SOCKET LENGTH
3"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
0.55 lbs.
designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at
both ends of the double socket arm. The zinc coated u-bolt base Accommodates rails from 0.5" to 1"
in diameter and includes black cover caps to be placed over the exposed ends of the u-bolt. This is
a universal mounting solution for the RAM cradles with a 1 inch ball.
HARDWARE INCLUDED
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
CLAMP RANGE
.5" - 1.25" diameter
SOCKET-TO-SOCKET LENGTH
3"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
0.55 lbs.
U-Bolt Dimensions:
- 0.50" to 1.25"
- Material:High Strength Composite and Powder Coated Marine Grade Aluminum
- Ball Size:B Size 1" Rubber Ball
- Note:The "U" in the part number reflects product packaged in poly bag.
- Weight:0.55 lbs.
