RAM Tab-Tite Handlebar U-Bolt Mount f

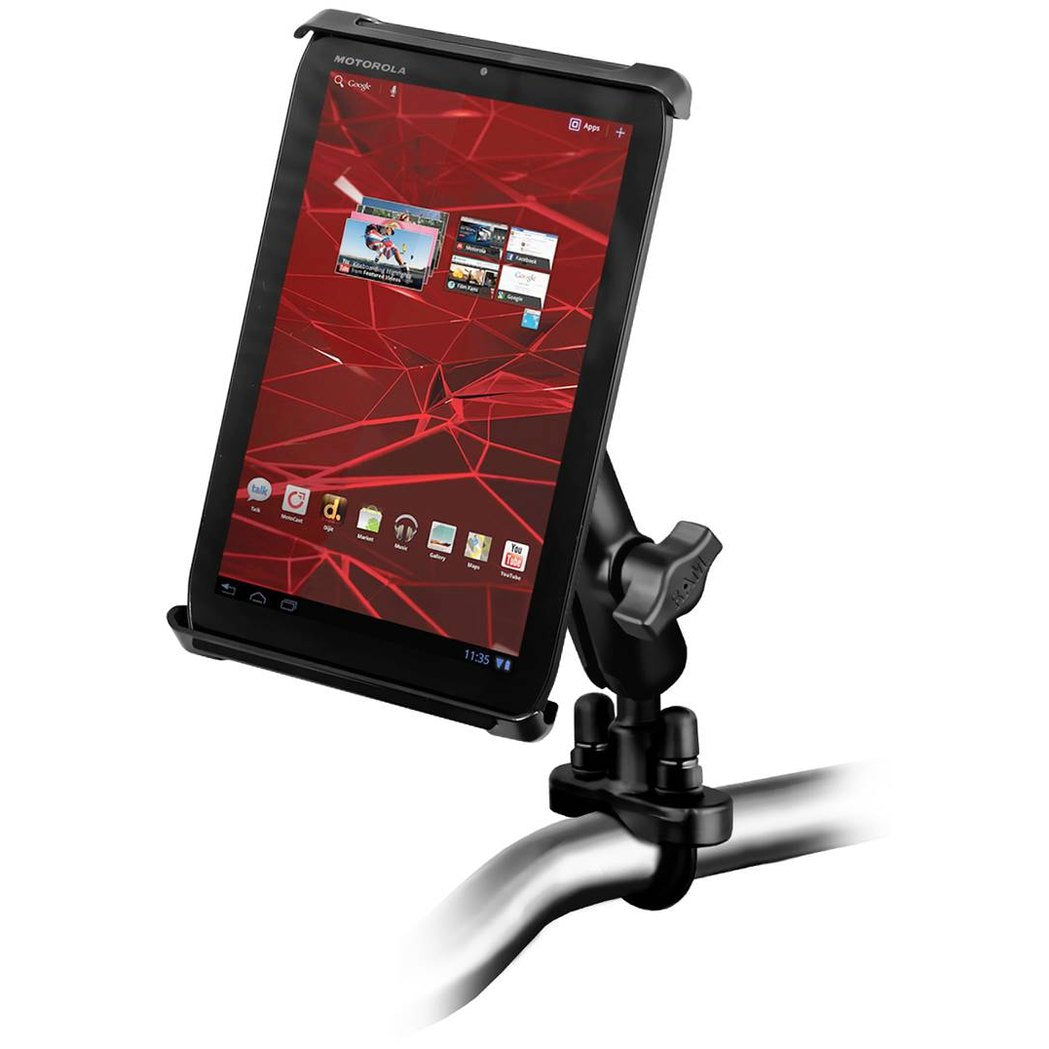

The RAM-B-149Z-TAB-SM consists of a zinc coated u-bolt base, standard length double socket arm,
diamond adapter base and universal Tab-Tite cradle. Included in this package is hardware that will
accommodate rails from 0.50" to 1.25" in diameter. A composite rail adapter can narrow the rail to a
minimum width of 0.5”. The mount is designed with a RAM 1" diameter patented rubber ball and socket
system that has adjustment points at both ends of the double socket arm; this allowing for almost
infinite adjustment and perfect viewing angles. With 3 sets of interchangeable cup ends, ranging
from different sizes and features, you can fit the cradle to your tablet for a near custom fit. This
spring loaded design makes it easy to load and unload your tablet, along with keeping it secure
while on the go. Cup ends are designed to optimize the functionality of your tablet, allowing access
to audio jacks, usb, power, and other ports, your tablet can be used just as it was intended.
Perfect for stationary or on the go applications, this new RAM product is just what you need to get
the most out of your mobile device.

HARDWARE INCLUDED
Assembly Hardware
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

HOLDER DIMENSIONS
Height Range: 7" - 10"
Width Range: 4" - 5.31"
Depth Range: .44" - 1.06"

CLAMP RANGE
.5" - 1.25" diameter

SOCKET-TO-SOCKET LENGTH
3"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Retail Bag

WEIGHT
1.1 lbs.
