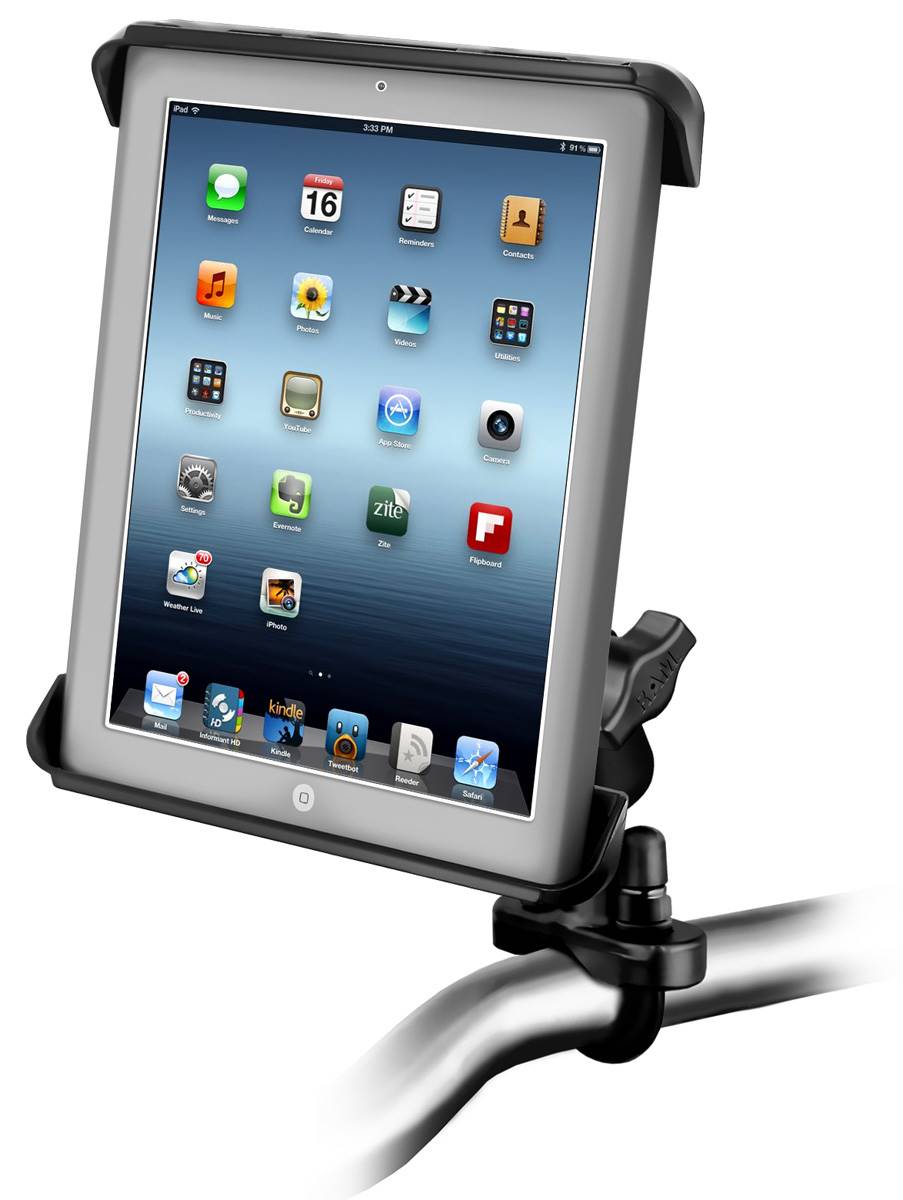

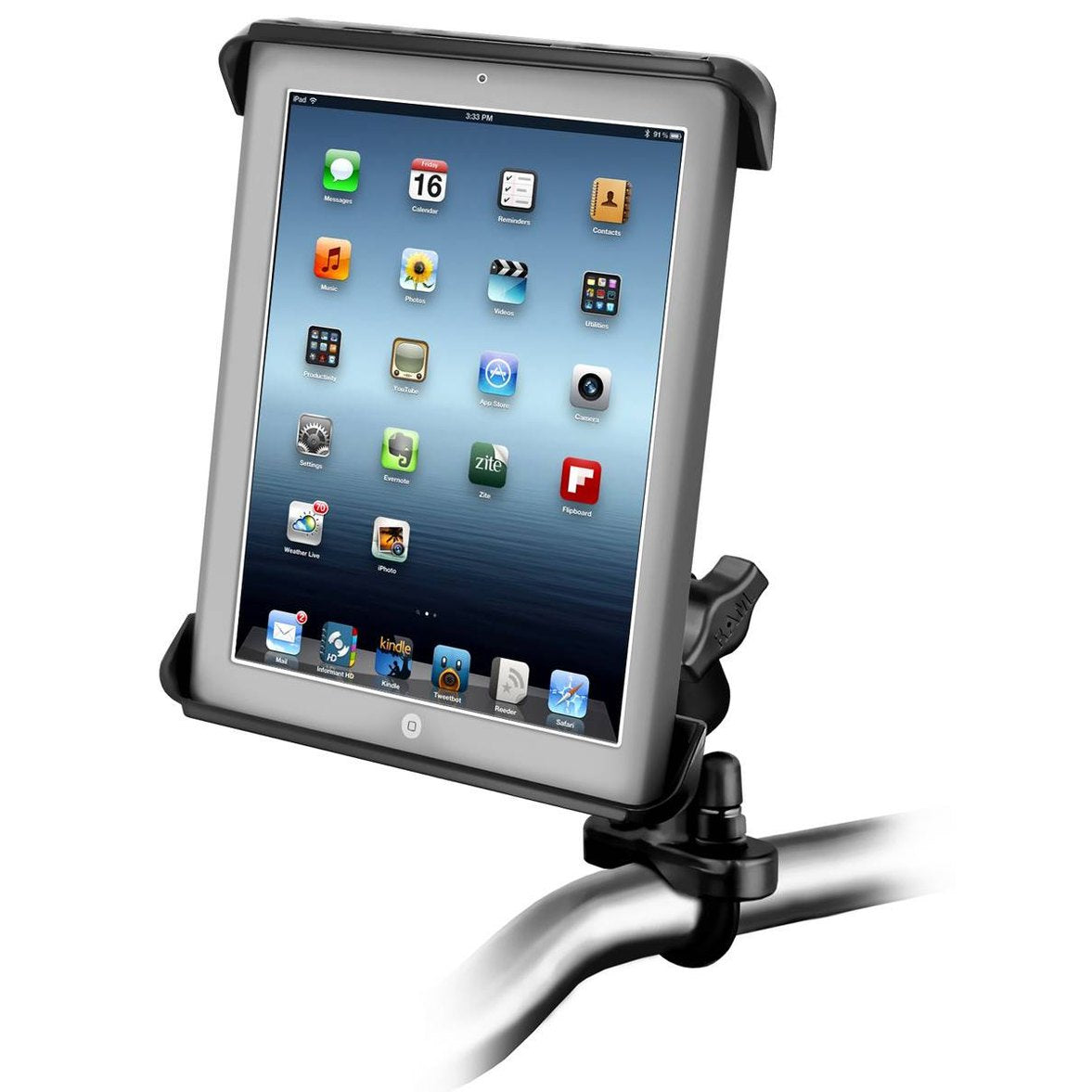

RAM Tab-Tite Handlebar U-Bolt Mount fo

The RAM-B-149Z-TAB3U consists of a zinc coated u-bolt base, double socket arm, round base adapter
and Tab-Tite universal clamping cradle. Included in this package is hardware that will accommodate
rails from 0.50" to 1.25" in diameter. The base includes black cover caps to be placed over the
exposed ends of the u-bolt. The included composite rail adapter can narrow the rail to a minimum
width of 0.5". The mount is designed with a RAM 1" diameter patented rubber ball and socket system
that has adjustment points at both ends of the double socket arm; this allowing for almost infinite
adjustment and perfect viewing angles. The spring loaded Tab-Tite cradle makes it easy to load and
unload your tablet, along with keeping it secure while on the go. Interchangeable cup ends are
designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power,
and other ports, your tablet can be used just as it was intended. The included backplate is
interchangeable with various size support cups, making it compatible with numerous tablet models.
New detachable support cups are the only components needed for purchase, attach to the backplate for
support of your new tablet. The Tab-Tite cradle is compatible with any tablet that will fit the
dimensions listed below. It is important to verify the dimensions of your tablet when determining
the overall size.

HARDWARE INCLUDED
Assembly Hardware
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

HOLDER DIMENSIONS
Height Range: 8.5" - 11.125"
Width Range: 6.38" - 7.75"
Depth Range: .13" - .56"

CLAMP RANGE
.5" - 1.25" diameter

SOCKET-TO-SOCKET LENGTH
3"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag

WEIGHT
1.1 lbs.
