RAM Tab-Tite Handlebar U-Bolt Mount fo

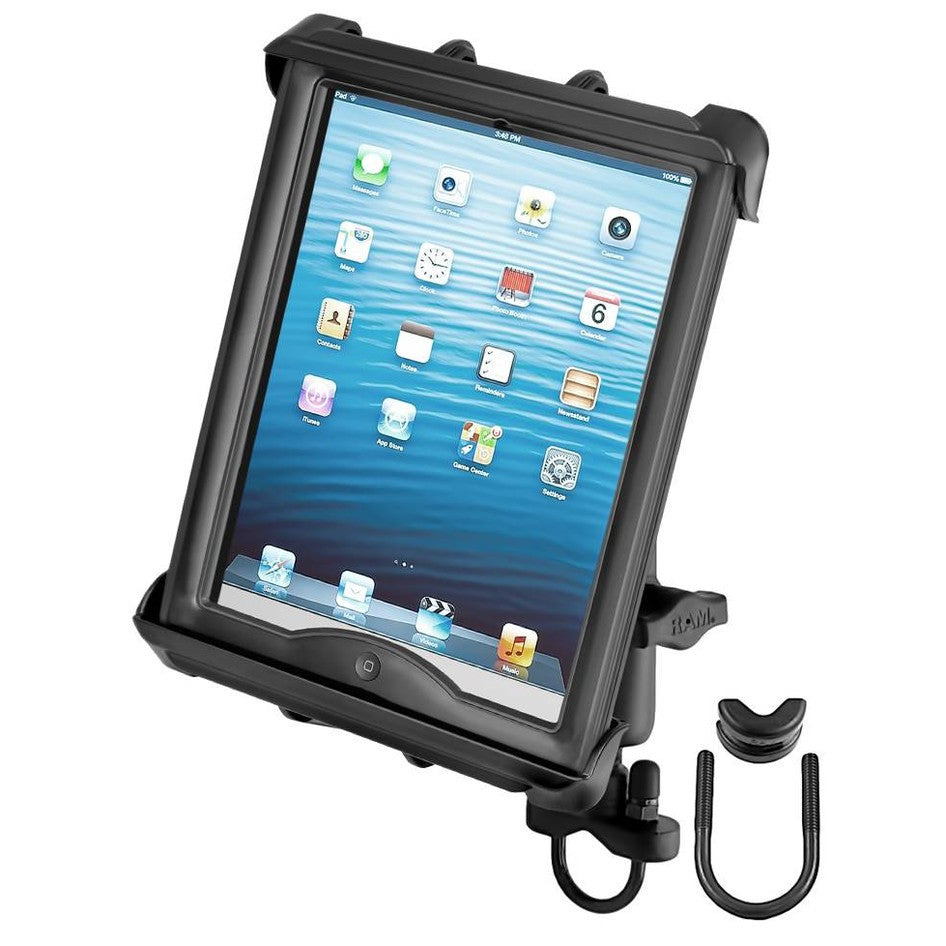

The RAM-B-149Z-TAB8U consists of a zinc coated u-bolt base, standard length double socket arm, round
base adapter and Tab-Tite universal clamping cradle. Included in this package is hardware that will
accommodate rails from 0.50" to 1.25" in diameter. The base includes black cover caps to be placed
over the exposed ends of the u-bolt. The included composite rail adapter can narrow the rail to a
minimum width of 0.5". The mount is designed with a RAM 1" diameter patented rubber ball and socket
system that has adjustment points at both ends of the double socket arm; this allowing for almost
infinite adjustment and perfect viewing angles. The included Tab-Tite cradle includes a spring
loaded back plate and custom support cups for 10" screen tablets WITH heavy duty cases. The spring
loaded design makes it easy to load and unload your tablet, along with keeping it secure while on
the go. Interchangeable cup ends are designed to optimize the functionality of your tablet, allowing
access to audio jacks, usb, power, and other ports, your tablet can be used just as it was intended.
The Tab-Tite cradle is compatible with any tablet that will fit the dimensions listed below. It is
important to verify the dimensions of your tablet when determining the overall size.

HARDWARE INCLUDED
Assembly Hardware
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

HOLDER DIMENSIONS
Height Range: 9" - 11.5"
Width Range: 6.38" - 8.31"
Depth Range: .13" - 1.12"

CLAMP RANGE
.5" - 1.25" diameter

SOCKET-TO-SOCKET LENGTH
3"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag

WEIGHT
1.46 lbs.
