RAM Handlebar U-Bolt Mount for TomTom

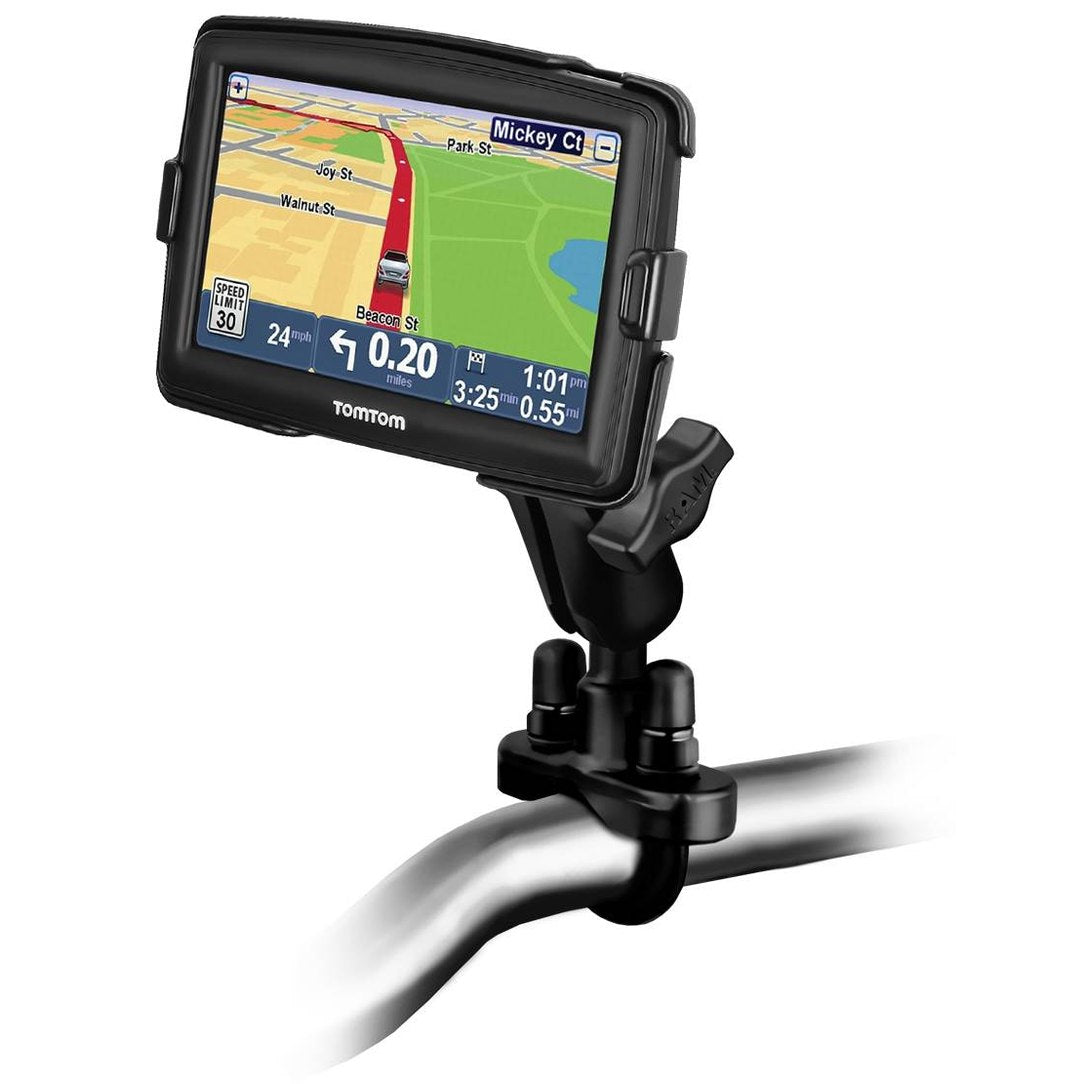

The RAM-B-149Z-TO10U consists of a zinc coated u-bolt base, double socket arm, diamond adapter base
and high strength composite cradle for the TomTom XXL series GPS. The mount is designed with a RAM
1" diameter patented rubber ball and socket system that has adjustment points at both ends of the
double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. Included
in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter. Also
included are black cover caps to be placed over the exposed ends of the u-bolt and a composite
adapter that can narrow the rail to a minimum width of 0.5".

HARDWARE INCLUDED
Assembly Hardware
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

CLAMP RANGE
.5" - 1.25" diameter

SOCKET-TO-SOCKET LENGTH
3"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag

WEIGHT
1.43 lbs.
