RAM Handlebar U-Bolt Mount for TomTom G

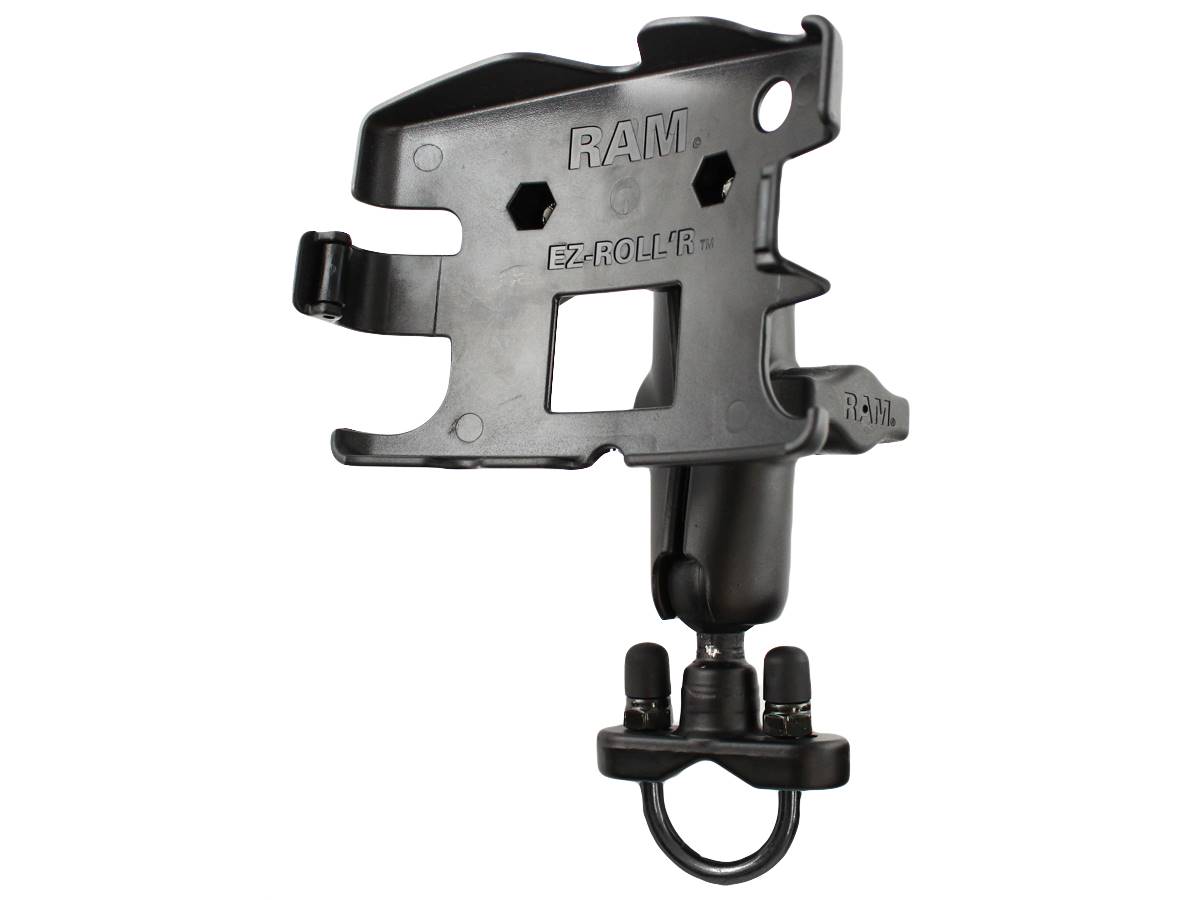

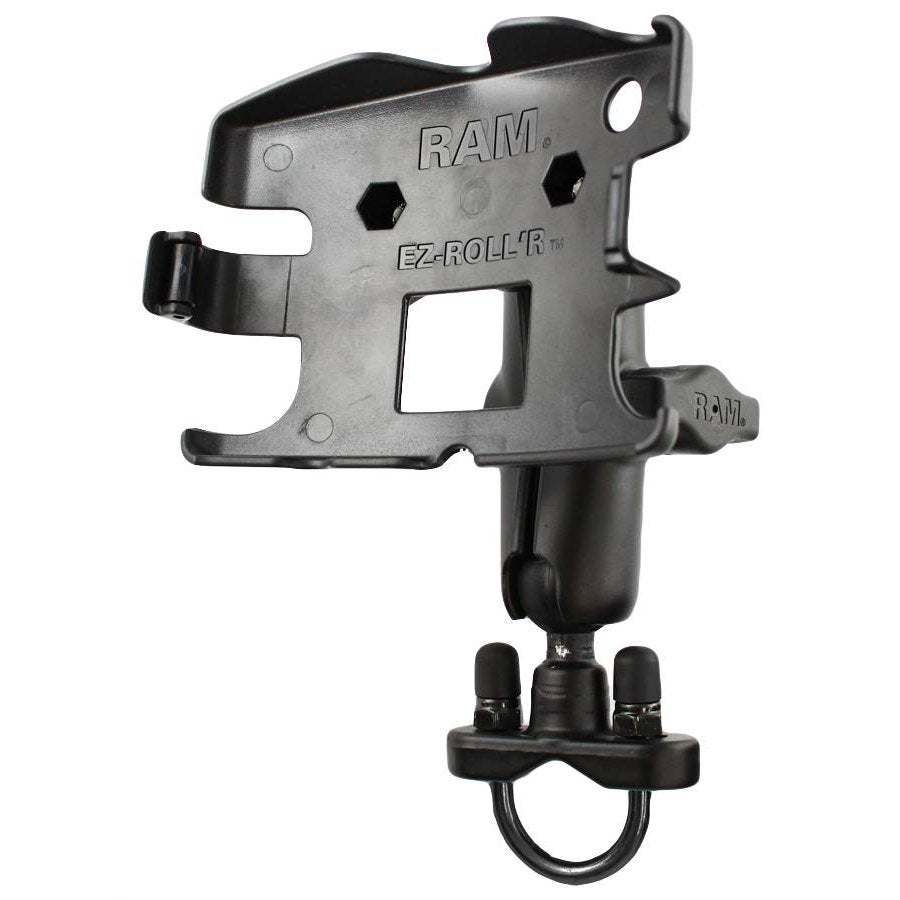

The RAM-B-149Z-TO6 consists of a zinc coated u-bolt base, double socket arm, diamond adapter base
and high strength composite cradle for the TomTom GO. The mount is designed with a RAM 1" diameter
patented rubber ball and socket system that has adjustment points at both ends of the double socket
arm; this allowing for almost infinite adjustment and perfect viewing angles. Included in this
package is hardware that will accommodate rails from 0.50" to 1.25" in diameter. Also included are
black cover caps to be placed over the exposed ends of the u-bolt and a composite adapter that can
narrow the rail to a minimum width of 0.5".

HARDWARE INCLUDED
Assembly Hardware
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

CLAMP RANGE
.5" - 1.25" diameter

SOCKET-TO-SOCKET LENGTH
3"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag

ADDITIONAL INFORMATION
This cradle is not compatible with the newer TomTom Go 520 GPS Navigator with WiFi. See images to
reference compatible GPS body style.

WEIGHT
0.68 lbs.
