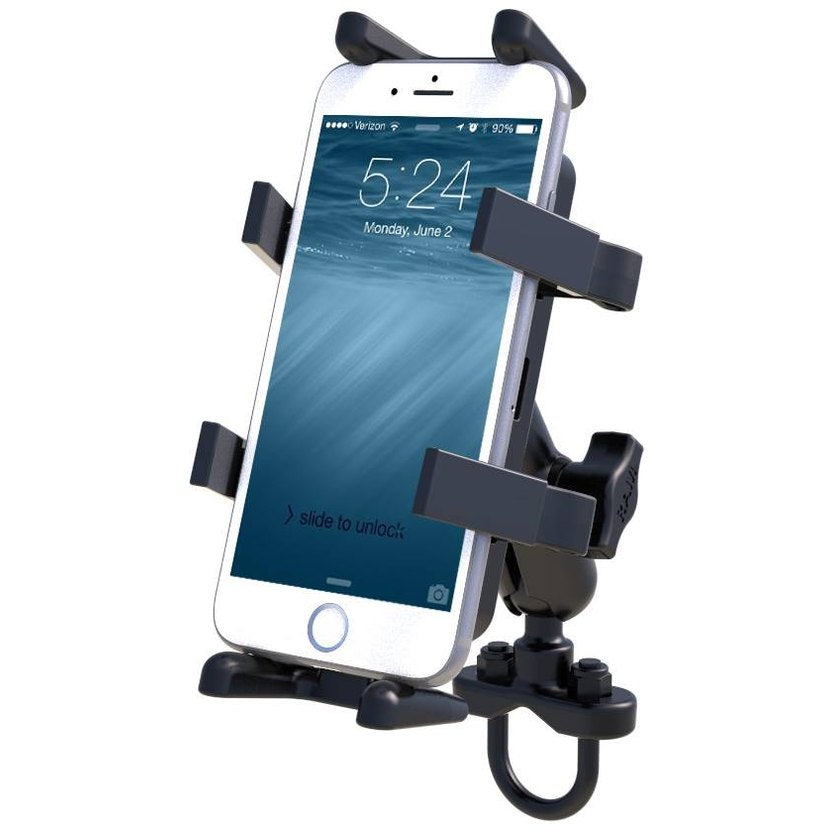

The RAM-B-149Z-UN4U consists of a zinc coated u-bolt base, double socket arm and universal Finger
Grip cradle. The mount is designed with a RAM 1" diameter patented rubber ball and socket system
that has adjustment points at both ends of the double socket arm; this allowing for almost infinite
adjustment and perfect viewing angles. The RAM Composite Universal Finger Grip cradle is designed
to hold a large amount of cell phones and electronic devices. The cradle comes with (3 sets) of four
flexible rubber coated fingers placed along sides to grip your device. The fingers open by squeezing
the ends to open the small finger arms. The bottom of the cradle includes a back plate that adds
support to the device being held by the mount. The spine plate contains the universal AMPs and 1.5"
x 2" hole patterns.
HARDWARE INCLUDED
Assembly Hardware
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
HOLDER DIMENSIONS
Height Range: 7.25" max (using optional supports)
Width Range: 1.25" - 3.5"
Max Depth: 1.5"
CLAMP RANGE
.5" - 1.25" diameter
SOCKET-TO-SOCKET LENGTH
3"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
High strength composite
PACKAGING TYPE
Poly Bag
ADDITIONAL INFORMATION
WEIGHT
1.05 lbs.
Grip cradle. The mount is designed with a RAM 1" diameter patented rubber ball and socket system
that has adjustment points at both ends of the double socket arm; this allowing for almost infinite
adjustment and perfect viewing angles. The RAM Composite Universal Finger Grip cradle is designed
to hold a large amount of cell phones and electronic devices. The cradle comes with (3 sets) of four
flexible rubber coated fingers placed along sides to grip your device. The fingers open by squeezing
the ends to open the small finger arms. The bottom of the cradle includes a back plate that adds
support to the device being held by the mount. The spine plate contains the universal AMPs and 1.5"
x 2" hole patterns.
HARDWARE INCLUDED
Assembly Hardware
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
HOLDER DIMENSIONS
Height Range: 7.25" max (using optional supports)
Width Range: 1.25" - 3.5"
Max Depth: 1.5"
CLAMP RANGE
.5" - 1.25" diameter
SOCKET-TO-SOCKET LENGTH
3"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
High strength composite
PACKAGING TYPE
Poly Bag
ADDITIONAL INFORMATION
WEIGHT
1.05 lbs.
Dimensions:
- Minimum with Top and Bottom Supports: 5.25"
- Maximum with Top and Bottom Supports: 7.25"
- The top and bottom plates can be removed for larger devices.
Dimensions using Short Arm Clamps:
- Maximum Depth: 0.75"
- Minimum Width: 1.25"
- Maximum Width: 3.0"
Dimensions using Medium Arm Clamps:
- Maximum Depth: 1.25"
- Minimum Width: 1.5"
- Maximum Width: 3.5"
Dimensions using Long Arm Clamps:
- Maximum Depth: 1.6"
- Minimum Width: 2.25"
- Maximum Width: 3.5"
- Material:High Strength Composite and Powder Coated Marine Grade Aluminum
- Ball Size:B Size 1" Rubber Ball
- Plate Dimensions:3" Width x 3" Height
- Note:The "U" in the part number reflects product packaged in poly bag.
- Weight:1.05 lbs.
