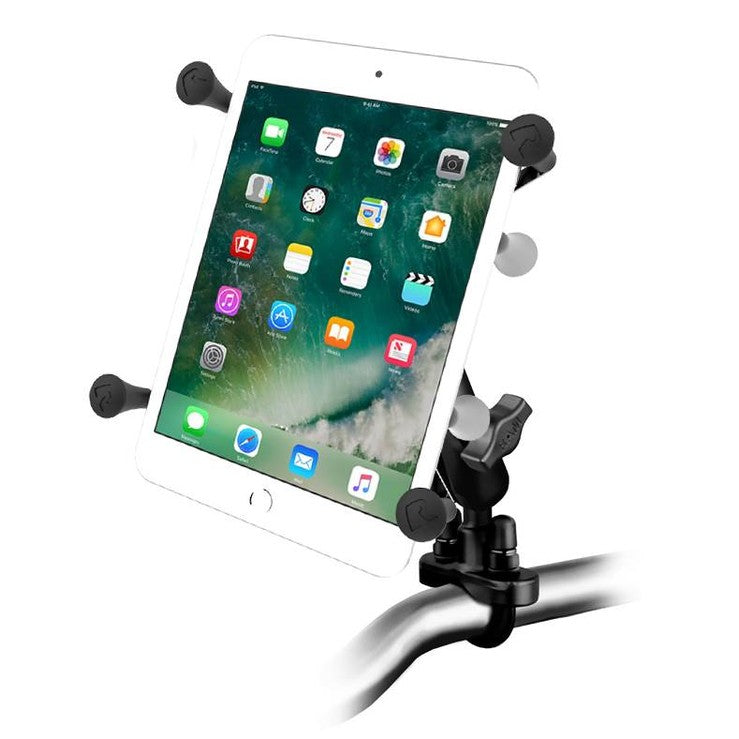

The RAM-B-149Z-UN8U consists of a zinc coated u-bolt base, double socket arm and universal X-Grip
clamping cradle for 7"-8" tablets. Included in this package is hardware that will accommodate rails
from 0.50" to 1.25" in diameter. The base includes black cover caps to be placed over the exposed
ends of the u-bolt. The included composite rail adapter can narrow the rail to a minimum width of
0.5". The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has
adjustment points at both ends of the double socket arm; this allowing for almost infinite
adjustment and perfect viewing angles. The spring loaded X-Grip cradle expands and contracts,
allowing for a perfect custom fit of your 7"-8" tablet. Included are extra easy access grip knobs,
located on the back of the cradle for quick release of your tablet. The X-Grip includes a device
tether recommended for outdoor applications. The cradle is compatible with handheld devices that
will fit the dimensions listed below. It is important to verify the dimensions of your handheld
device with a case/sleeve/skin when determining the overall size.
HARDWARE INCLUDED
(1) Optional Tether
(1) Glue Tube for Rubber Caps
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
HOLDER DIMENSIONS
Width Range: 2.5" - 5.75"
Depth Range: .875" max
CLAMP RANGE
.5" - 1.25" diameter
SOCKET-TO-SOCKET LENGTH
3"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
High strength composite
Stainless steel
PACKAGING TYPE
Poly Bag
ADDITIONAL INFORMATION
WEIGHT
0.8 lbs.
clamping cradle for 7"-8" tablets. Included in this package is hardware that will accommodate rails
from 0.50" to 1.25" in diameter. The base includes black cover caps to be placed over the exposed
ends of the u-bolt. The included composite rail adapter can narrow the rail to a minimum width of
0.5". The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has
adjustment points at both ends of the double socket arm; this allowing for almost infinite
adjustment and perfect viewing angles. The spring loaded X-Grip cradle expands and contracts,
allowing for a perfect custom fit of your 7"-8" tablet. Included are extra easy access grip knobs,
located on the back of the cradle for quick release of your tablet. The X-Grip includes a device
tether recommended for outdoor applications. The cradle is compatible with handheld devices that
will fit the dimensions listed below. It is important to verify the dimensions of your handheld
device with a case/sleeve/skin when determining the overall size.
HARDWARE INCLUDED
(1) Optional Tether
(1) Glue Tube for Rubber Caps
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
HOLDER DIMENSIONS
Width Range: 2.5" - 5.75"
Depth Range: .875" max
CLAMP RANGE
.5" - 1.25" diameter
SOCKET-TO-SOCKET LENGTH
3"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
High strength composite
Stainless steel
PACKAGING TYPE
Poly Bag
ADDITIONAL INFORMATION
WEIGHT
0.8 lbs.
U-Bolt Dimensions:
- 0.50" to 1.25"
Cradle Dimensions:
- Minimum Width = 2.5" (Minimum Height = 7")
- Maximum Width = 5.75" (Minimum Height = 4")
- Depth = 0.875"
- Material:Powder Coated Marine Grade Aluminum, Marine Grade Stainless Steel Components and High Strength Composite
- Ball Size:B Size 1" Rubber Ball
- Note:The "U" in the part number reflects product packaged in poly bag.
- Weight:0.8 lbs.
