RAM X-Grip Handlebar U-Bolt Mount for 9

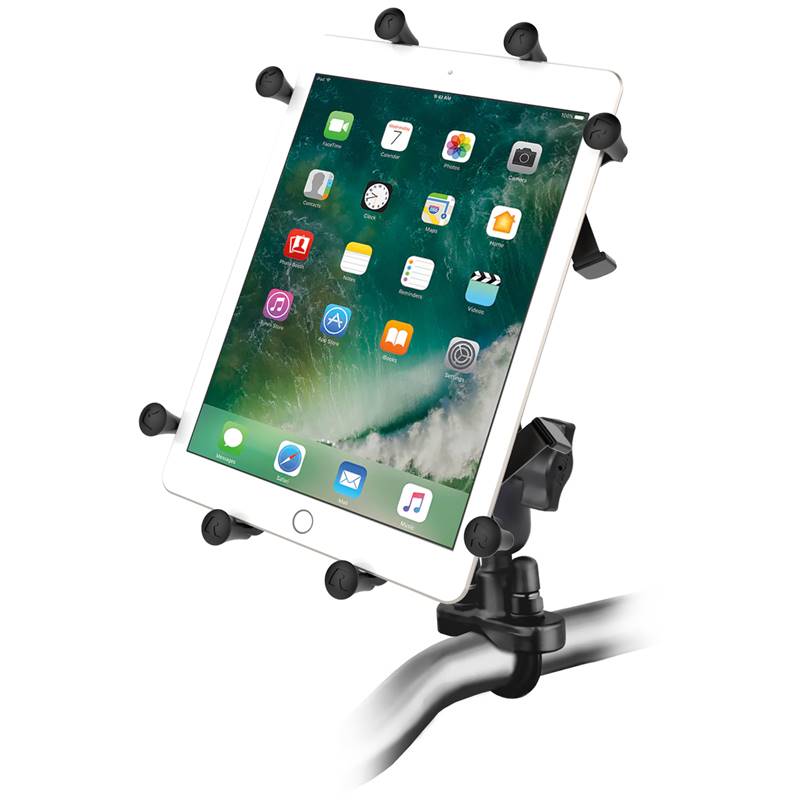

The RAM-B-149Z-UN9U consists of a zinc coated u-bolt base, double socket arm, round base adapter and
universal X-Grip clamping cradle for 10" tablets. Included in this package is hardware that will
accommodate rails from 0.50" to 1.25" in diameter. The base includes black cover caps to be placed
over the exposed ends of the u-bolt. The included composite rail adapter can narrow the rail to a
minimum width of 0.5". The mount is designed with a RAM 1" diameter patented rubber ball and socket
system that has adjustment points at both ends of the double socket arm; this allowing for almost
infinite adjustment and perfect viewing angles. The X-Grip clamping cradle consists of a composite
spring loaded cradle, expandable grip arms and additional bottom support keeper. Included are extra
easy access grip knobs, located on the back of the cradle for quick release of your tablet. The
X-Grip clamping cradle expands and contracts for perfect fit of most 10" tablets with or without
sleeves, as well as some smaller tablets. Please verify dimensions of your tablet below for
compatibility with the X-Grip.

HARDWARE INCLUDED
Assembly Hardware
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

HOLDER DIMENSIONS
Max Height: 10.25" (using optional supports)
Width Range: 6.25" - 8.1"
Max Depth: .875"

CLAMP RANGE
.5" - 1.25" diameter

SOCKET-TO-SOCKET LENGTH
3"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag

WEIGHT
1.73 lbs.
