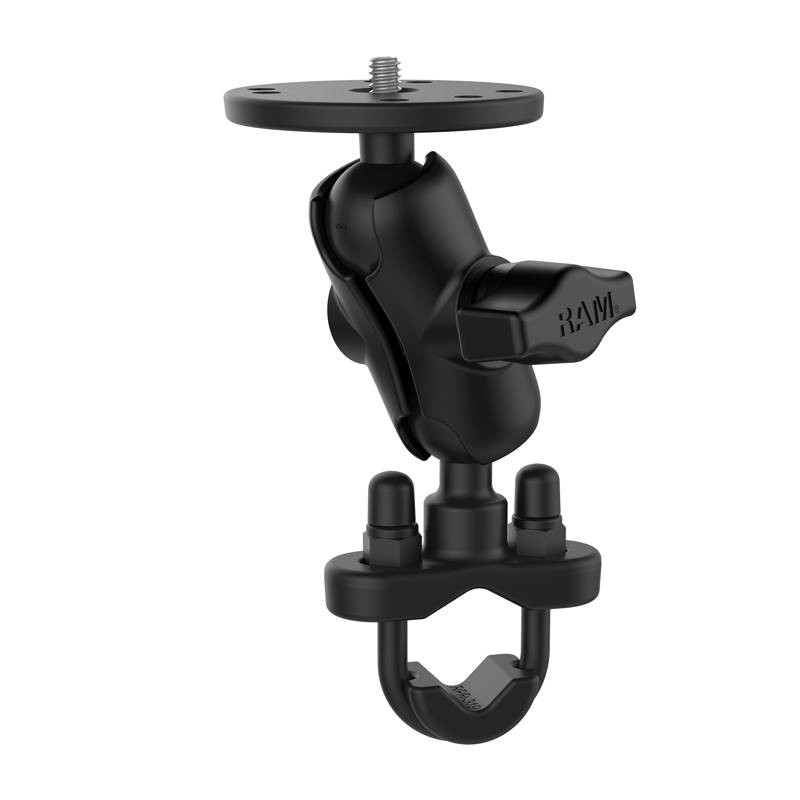

RAM Handlebar U-Bolt Double Ball Mount
RAM Handlebar U-Bolt Double Ball Mount
Regular price
$46.49 USD
Regular price
Sale price
$46.49 USD
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
Ball Size:
B Size 1"
UPC:
793442149191
Mfg Part #:
RAM-B-149ZA-C1U
Availability:
In Stock
Part Number:
RAM-B-149ZA-C1U
Quantity
Couldn't load pickup availability
Share
- Description
- Additional Info
- Components
The RAM zinc coated u-bolt rail base consists of the 1" diameter ball and socket system with RAM
Universal 1/4"-20 thread centered on a 2.5" diameter plate. This mount is designed to be a universal
mounting solution for both still and moving cameras. The base has a 1.0" diameter rubber ball
designed to sit at right angles to the mounting rail. The zinc coated metal u-bolt and nuts included
will fit a circular rail with diameter from 0.5" to 1.25". To mount the rail base, place the top of
the base on the rail and then slide the u-bolt around the rail, into the holes in the base top. Now
tighten the screws onto the u-bolt until the base is clamped firmly. If you desire, you can now slot
the black composite covers over the exposed ends of the u-bolt.
HARDWARE INCLUDED
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
CLAMP RANGE
.5" - 1.25" diameter
SOCKET-TO-SOCKET LENGTH
1.75"
HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
0.51 lbs.
Universal 1/4"-20 thread centered on a 2.5" diameter plate. This mount is designed to be a universal
mounting solution for both still and moving cameras. The base has a 1.0" diameter rubber ball
designed to sit at right angles to the mounting rail. The zinc coated metal u-bolt and nuts included
will fit a circular rail with diameter from 0.5" to 1.25". To mount the rail base, place the top of
the base on the rail and then slide the u-bolt around the rail, into the holes in the base top. Now
tighten the screws onto the u-bolt until the base is clamped firmly. If you desire, you can now slot
the black composite covers over the exposed ends of the u-bolt.
HARDWARE INCLUDED
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
CLAMP RANGE
.5" - 1.25" diameter
SOCKET-TO-SOCKET LENGTH
1.75"
HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
0.51 lbs.
U-Bolt Dimensions:
- 0.50" to 1.25"
- Material:Powder Coated Marine Grade Aluminum
- Ball Size:C Size 1.5" Rubber Ball
- Note:The "U" in the part number reflects product packaged in poly bag. The male 1/4" long, 1/4"-20 thread in the middle of the 2.5" diameter plate will connect to the standard female thread found at the bottom of most still and video cameras.
- Weight:0.51 lbs.
