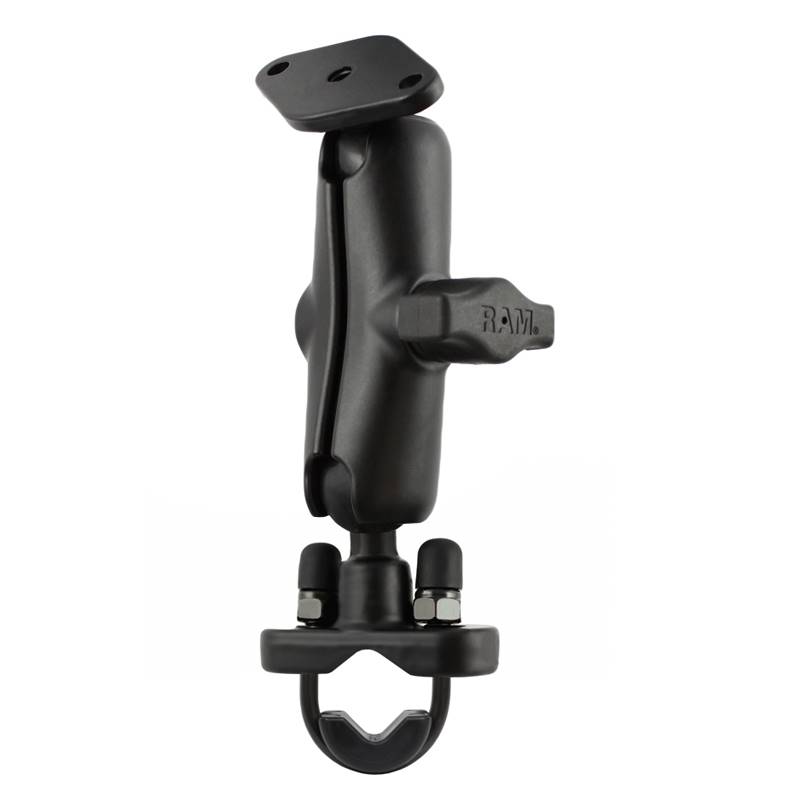

RAM Handlebar U-Bolt Double Ball Mount - B

The RAM-B-149ZU consists of a zinc-coated U-bolt base, double socket arm, and diamond adapter base.
The diamond adapter base has a hole pattern that matches the industry standard AMPS hole pattern and
will connect to a large variety of RAM components. Included is hardware that will accommodate rails
from .5" to 1.25" in diameter. A composite rail adapter can narrow the rail to a minimum width of
0.5”. Also included is a B size medium length double socket arm featuring adjustment points at both
ends, allowing for near-infinite adjustability.

HARDWARE INCLUDED
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

CLAMP RANGE
.5" - 1.25" diameter

SOCKET-TO-SOCKET LENGTH
3"

HOLE PATTERN
2-Hole AMPS: 1.912"

PLATE SIZE
2.43" x 1.31"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum

PACKAGING TYPE
Poly Bag

FEATURES:
Includes zinc-coated U-bolt base that accommodates rails from .5" to 1.25" in diameter, medium
length B size RAM double socket arm, and diamond adapter ball base for connecting to a wide variety
of device holders

RAM Mounts ball and socket technology allows for near-infinite adjustability on bicycle and
motorcycle handlebars

Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding
environments

Backed by a lifetime warranty


WEIGHT
0.63 lbs.
