RAM-B-166-202AU_RAM Twist-Lock Suction Cup Mount with R

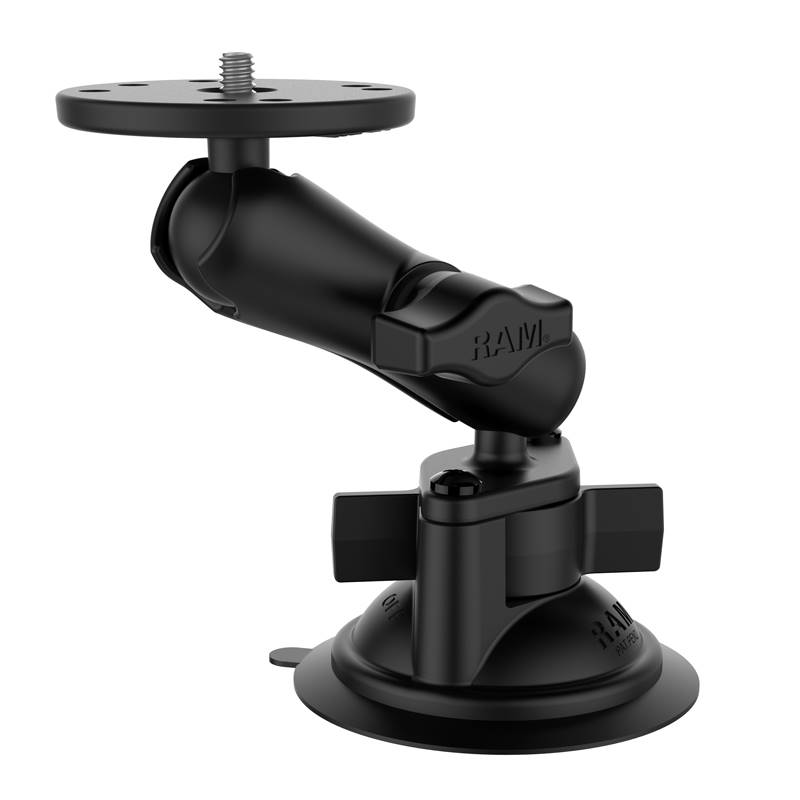

The RAM-B-166-202AU consists of a 3.3" diameter suction cup twist lock base, double socket arm and
round base adapter that contains a 1/4"-20 male camera thread. The suction cup base is designed to
have a strong hold on glass and non-porous plastic surfaces, including RAM adhesive disks. The mount
is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points
at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect
viewing angles. The camera base contains a 1" rubber ball that is connected to a 2.5" diameter round
base. Also, included is a 1/4"-20 threaded steel stud, centered, the round base provides support and
stability for cameras that rest on top of it. The male 1/4"-20 threaded steel stud will connect to
any standard female thread found on camcorders and digital cameras.

HARDWARE INCLUDED
Assembly Hardware

PRODUCT DIMENSIONS
Overall Height: 6.69"

SUCTION SIZE
3.3" Diameter

SOCKET-TO-SOCKET LENGTH
3"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

THREAD PITCH
1/4"-20 x .25"

PLATE SIZE
2.5" Diameter

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag

WEIGHT
0.65 lbs.
