RAM Twist-Lock Suction Cup Mount wit

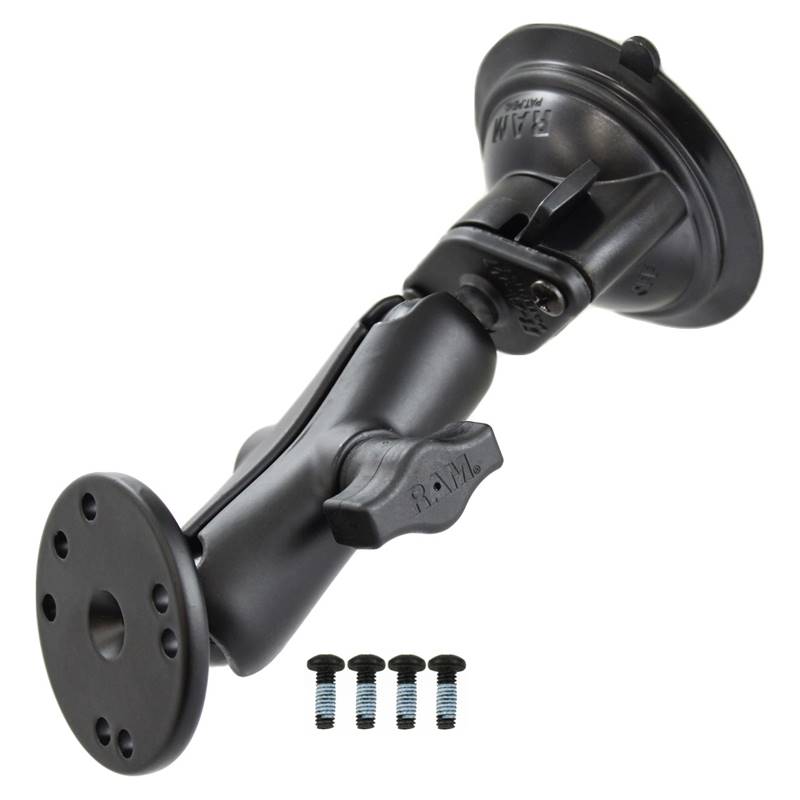

The RAM-B-166-202U-UK1 consists of a 3.3" suction cup twist lock base, standard length double socket
arm, round base adapter that contains the universal AMPs hole pattern and mounting hardware. The
mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment
points at both ends of the double socket arm; this allowing for almost infinite adjustment and
perfect viewing angles. The hole pattern found on the round base adapter will connect to many RAM
cradles. The suction cup base is designed to have a strong hold on glass and non-porous plastic
surfaces, including RAM adhesive disks. The included mounting hardware is used for attachment to all
RAM cradles that contain the universal AMPs hole pattern.

HARDWARE INCLUDED
(4) #8-32 x 1/2" Thread Locking Machine Screws

PRODUCT DIMENSIONS
Overall Height: 6.69"

SUCTION SIZE
3.3" Diameter

SOCKET-TO-SOCKET LENGTH
3"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag

WEIGHT
0.67 lbs.
