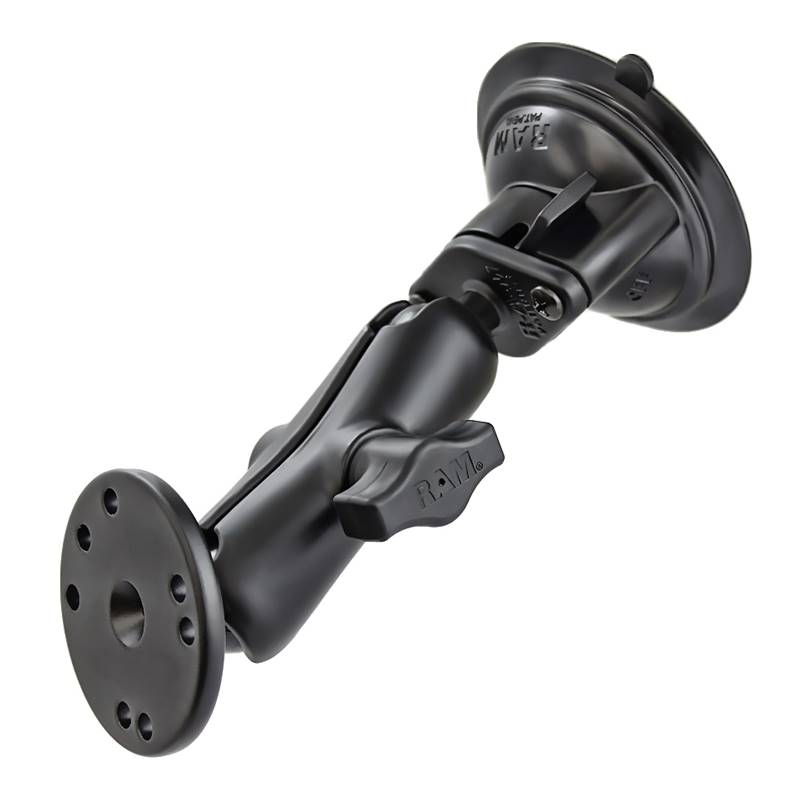

RAM-B-166-202U_RAM Twist-Lock Suction Cup Double Ball M

The RAM-B-166-202U consists of a 3.3" suction cup twist lock base, STANDARD length double socket arm
and round base adapter that contains the universal AMPs hole pattern. The mount is designed with a
RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of
the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The
suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces,
including RAM adhesive disks. The hole pattern found on the round base adapter will connect to most
RAM cradles and 3rd party cradles.

HARDWARE INCLUDED
Assembly Hardware

PRODUCT DIMENSIONS
Overall Height: 6.69"

SUCTION SIZE
3.3" Diameter

SOCKET-TO-SOCKET LENGTH
3"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

PLATE SIZE
2.5" Diameter

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag

FEATURES:
RAM Twist-Lock suction cup base is ideal for vehicle windshields and other nonporous surfaces

Includes B size medium length RAM double socket arm and 2.5" round base with B size 1" rubber ball;
ball and socket technology allows for near-infinite adjustability

Made of powder-coated, marine-grade aluminum and high-strength composite for durability and
reliability in the most demanding environments

Backed by a lifetime warranty


WEIGHT
0.65 lbs.
