RAM Twist-Lock Suction Cup for TomT

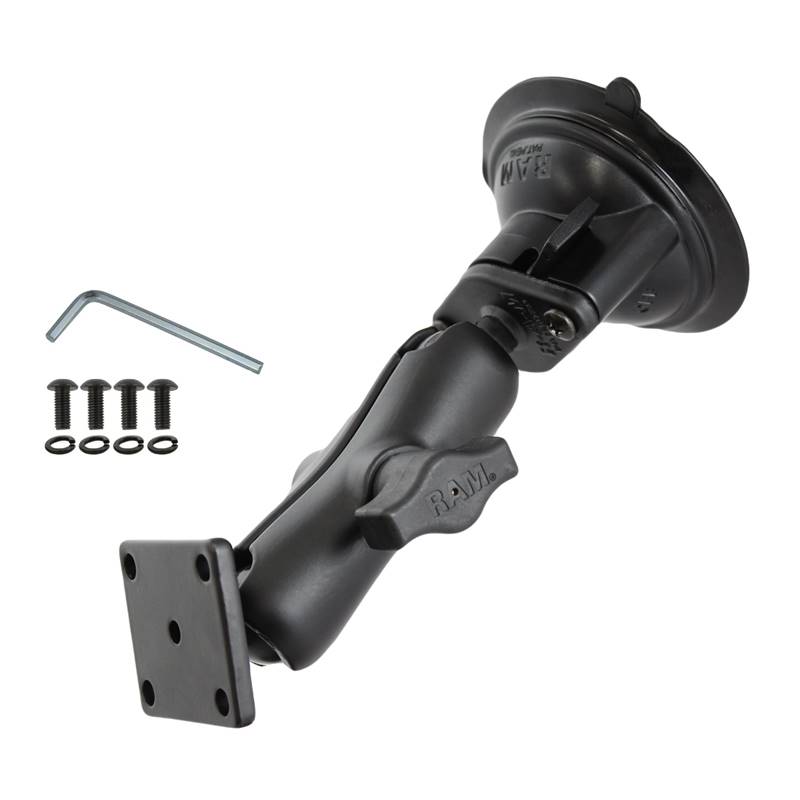

The RAM-B-166-347U-TOM1 consists of a 3.3" suction cup twist lock base, double socket arm, 2" x 1.7"
plate and custom hardware for the TomTom Rider 2/Urban Rider. The suction cup base is designed to
have a strong hold on glass and non-porous plastic surfaces, including RAM adhesive disks. The mount
is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points
at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect
viewing angles. The included hardware allows attachement of the TomTom Rider 2/Urban Rider to the
mount.

HARDWARE INCLUDED
Assembly Hardware
(4) M5 x 12mm Machine Screws
(4) M5 Stainless Steel Lock Washers
(1) M3 Hex Key Wrench

PRODUCT DIMENSIONS
Overall Height: 6.69"

SUCTION SIZE
3.3" Diameter

SOCKET-TO-SOCKET LENGTH
3"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag

WEIGHT
0.66 lbs.
