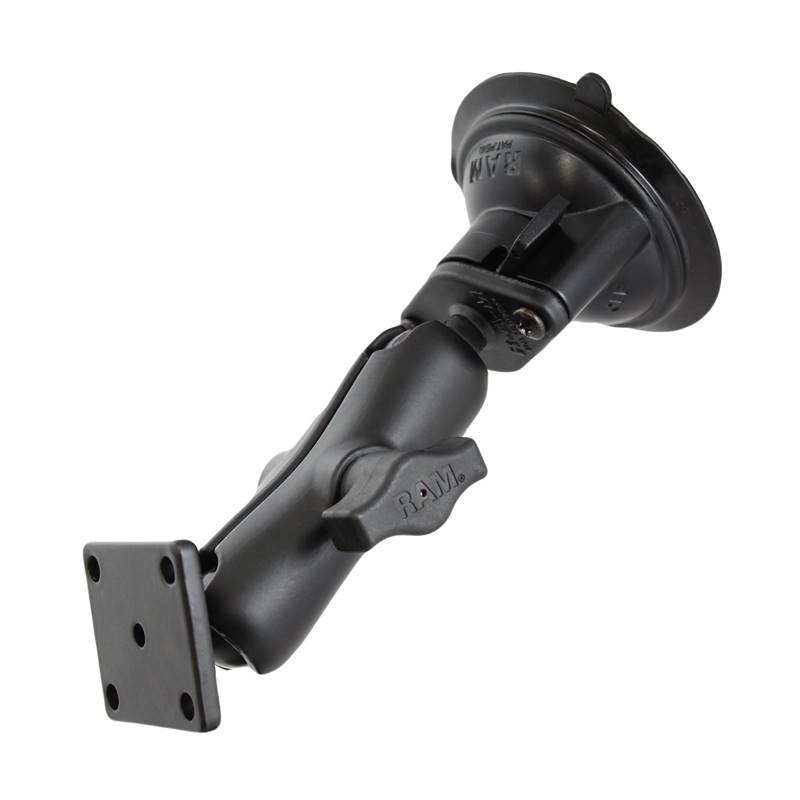

RAM-B-166-347U_RAM Twist-Lock Suction Cup with AMPS Hol

The RAM-B-166-347U, twist lock suction cup mount consists of a 3.3" suction cup locking base and 2"
x 1.7" square base end. The square base has four pre-drilled holes at each corner, making the
universal AMPs hole pattern. The mount is designed with a RAM 1" diameter patented rubber ball and
socket system that has adjustment points at both ends of the double socket arm; this allowing for
almost infinite adjustment and perfect viewing angles. Simply attach the suction cup base to the
windshield of your vehicle for an easy and safe way to view your handheld device in your vehicle.
High quality materials ensure your electronic device is safe, secure, and within easy reach. RAM’s
patented design also dampens shock and vibration helping to extend the life of your mobile device.

HARDWARE INCLUDED
Assembly Hardware

PRODUCT DIMENSIONS
Overall Height: 6.69"

SUCTION SIZE
3.3" Diameter

SOCKET-TO-SOCKET LENGTH
3"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag

WEIGHT
0.61 lbs.
