RAM Twist-Lock Suction Cup Mount with

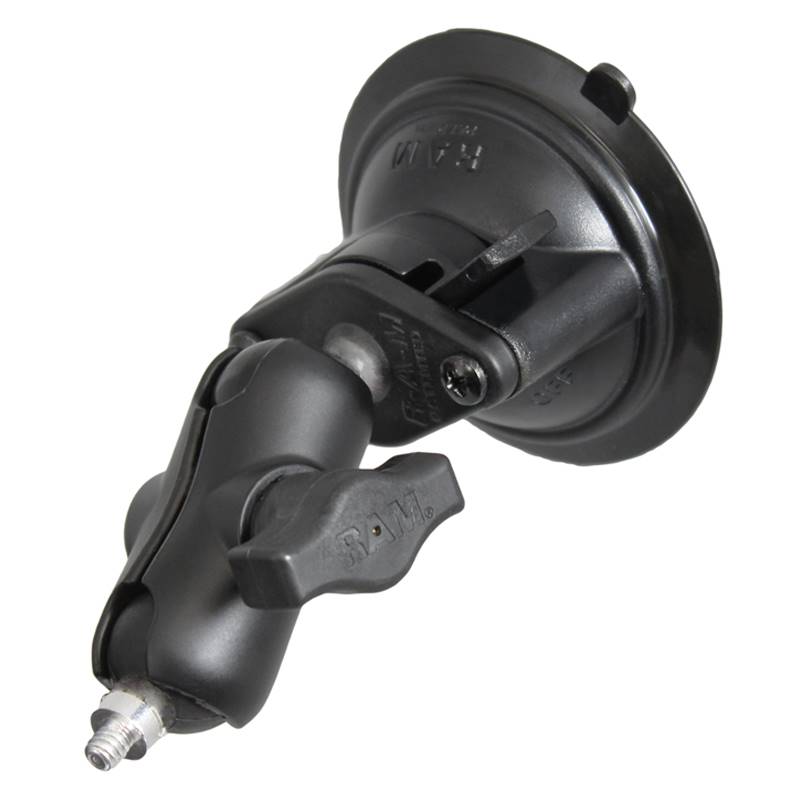

The RAM-B-166-A-237U consists of a 3.3" suction cup twist lock base, SHORT length double socket and
1" ball that contains a 1/4"-20 male camera thread. The suction cup base is designed to have a
strong hold on glass and non-porous plastic surfaces, including RAM adhesive disks. The mount is
designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at
both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing
angles. The male thread matches most standard camera and camcorder female threads found on the
bottom of the camera.

HARDWARE INCLUDED
Assembly Hardware

SUCTION SIZE
3.3" Diameter

SOCKET-TO-SOCKET LENGTH
1.75"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag

WEIGHT
0.5 lbs.
