RAM Twist-Lock Suction Cup Mount for Garmi

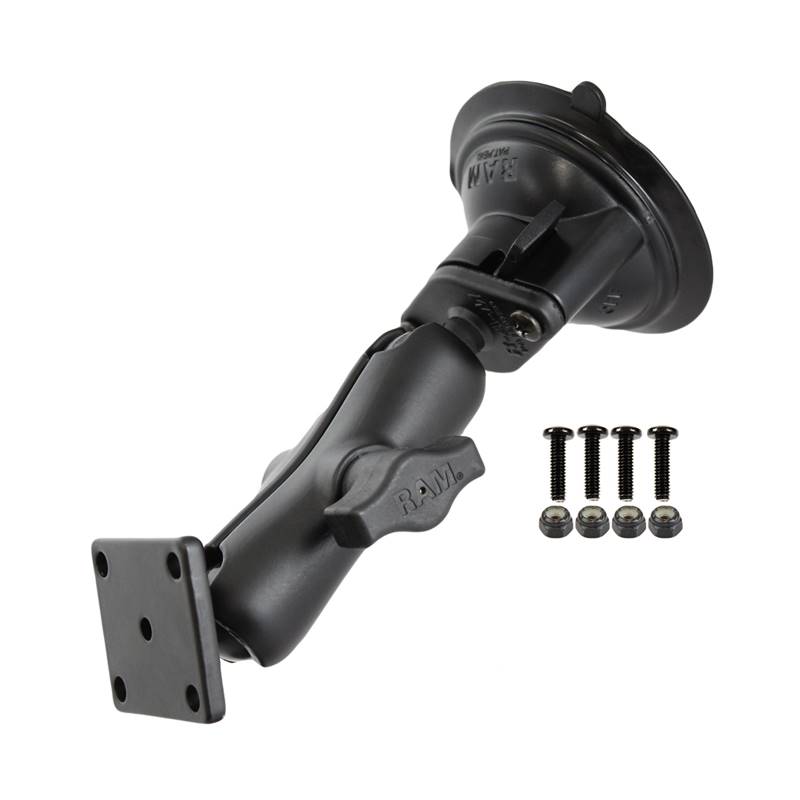

The RAM-B-166-G4 consists of a 3.3" suction cup twist lock base, double socket arm, 2" x 1.7" plate
and custom hardware for the Garmin GPSMAP. The mount is designed with a RAM 1" diameter patented
rubber ball and socket system that has adjustment points at both ends of the double socket arm; this
allowing for almost infinite adjustment and perfect viewing angles. Simply attach the suction cup
base to the windshield of your vehicle for an easy and safe way to view your handheld device in your
vehicle. The included hardware allows your device to attach directly to the mount.

HARDWARE INCLUDED
Assembly Hardware
(3) #8-32 x 5/8" Machine Screws
(3) #8-32 Nylock Nuts

PRODUCT DIMENSIONS
Overall Height: 6.69"

SUCTION SIZE
3.3" Diameter

SOCKET-TO-SOCKET LENGTH
3"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Retail Bag

WEIGHT
0.8 lbs.
