RAM Tab-Tite with RAM Twist-Lock Suct
RAM Tab-Tite with RAM Twist-Lock Suct
Regular price
$88.49 USD
Regular price
Sale price
$88.49 USD
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
Ball Size:
B Size 1"
UPC:
793442937828
Mfg Part #:
RAM-B-166-TAB-LGU
Availability:
In Stock
Part Number:
RAM-B-166-TAB-LGU
Quantity
Couldn't load pickup availability
Share
- Description
- Additional Info
- Components

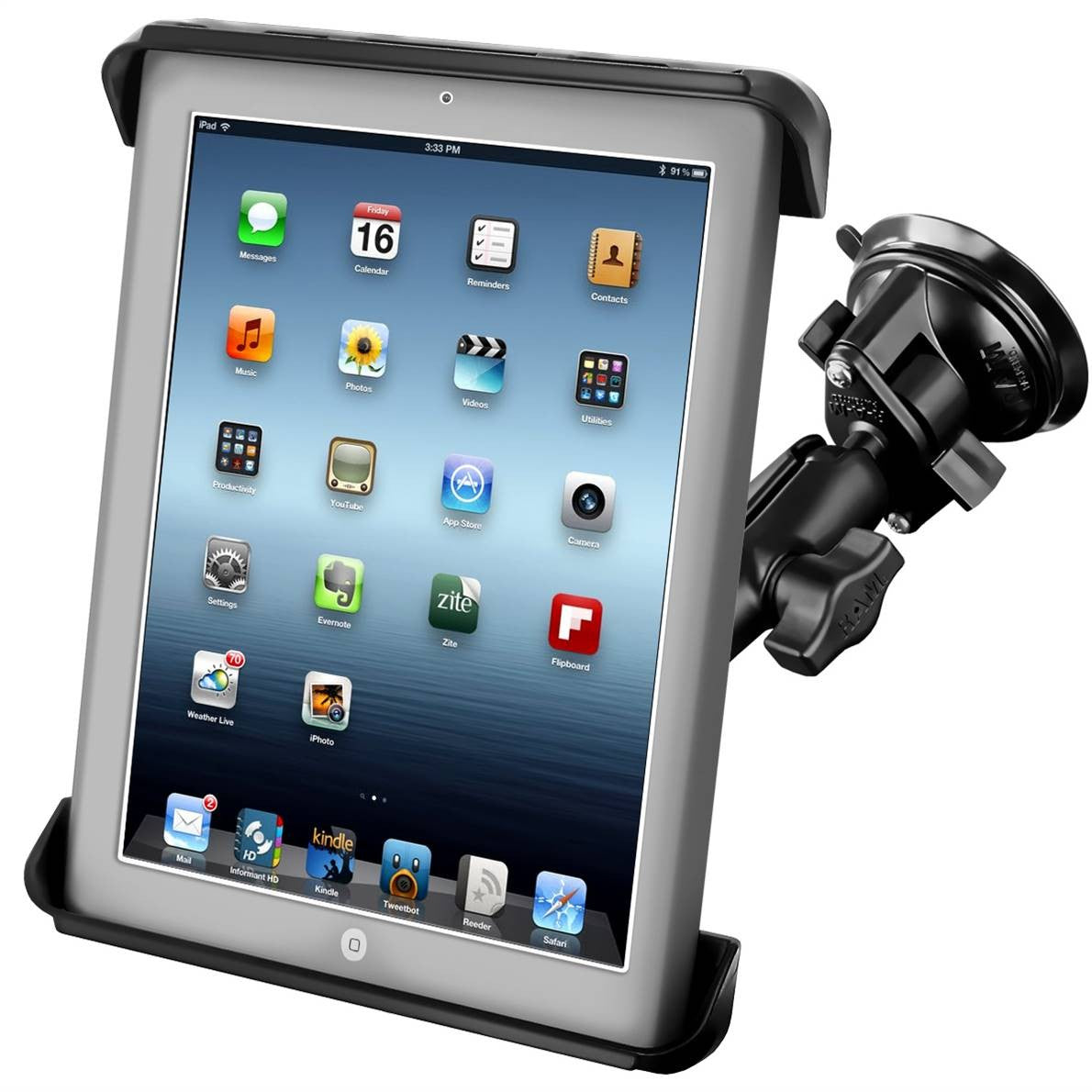

The RAM-B-166-TAB-LGU consists of a 3.3" suction cup twist lock base, double socket arm, diamond
adapter base, Tab-Tite cradle and 2 sets of cup ends to accommodate for tablets of various sizes.
The suction cup, twist lock base is designed to have a strong hold on glass and non-porous plastic
surfaces, including RAM adhesive disks. The mount is designed with a RAM 1" diameter patented rubber
ball and socket system that has adjustment points at both ends of the double socket arm; this
allowing for almost infinite adjustment and perfect viewing angles. The spring loaded, quick release
Tab-Tite cradle makes it easy to load and unload your tablet, along with keeping it secure while on
the go. Cup ends are designed to optimize the functionality of your tablet, allowing access to audio
jacks, usb, power, and other ports, your tablet can be used just as it was intended.
HARDWARE INCLUDED
Assembly Hardware
HOLDER DIMENSIONS
Height Range: 8.5" - 11.75"
Width Range: 7.75" - 8.25"
Depth Range: .56" - 1.1"
SUCTION SIZE
3.3" Diameter
SOCKET-TO-SOCKET LENGTH
3"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
High strength composite
PACKAGING TYPE
Poly Bag
WEIGHT
0.69 lbs.
adapter base, Tab-Tite cradle and 2 sets of cup ends to accommodate for tablets of various sizes.
The suction cup, twist lock base is designed to have a strong hold on glass and non-porous plastic
surfaces, including RAM adhesive disks. The mount is designed with a RAM 1" diameter patented rubber
ball and socket system that has adjustment points at both ends of the double socket arm; this
allowing for almost infinite adjustment and perfect viewing angles. The spring loaded, quick release
Tab-Tite cradle makes it easy to load and unload your tablet, along with keeping it secure while on
the go. Cup ends are designed to optimize the functionality of your tablet, allowing access to audio
jacks, usb, power, and other ports, your tablet can be used just as it was intended.
HARDWARE INCLUDED
Assembly Hardware
HOLDER DIMENSIONS
Height Range: 8.5" - 11.75"
Width Range: 7.75" - 8.25"
Depth Range: .56" - 1.1"
SUCTION SIZE
3.3" Diameter
SOCKET-TO-SOCKET LENGTH
3"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
High strength composite
PACKAGING TYPE
Poly Bag
WEIGHT
0.69 lbs.
Purchase Includes:
- (QTY. 1) Spring loaded back plate
- (QTY. 2) Support cups for thin tablets
- (QTY. 2) Support cups for thick tablets
- (QTY. 1) Set of mounting hardware
Cradle Dimensions for Thin Tablets:
- Height: 8.5" minimum to 10.75" maximum
- Width: Maximum to 7.75"
- Edge Depth: Maximum to 0.56"
Cradle Dimensions for Thick Tablets:
- Height: 8.75" minimum to 10.75" maximum
- Width: Maximum to 8.25"
- Edge Depth: Maximum to 1.10"
- Material:High Strength Composite
- Note:The Tab-Titeâ„¢ cradle is compatible with any tablet that will fit the dimensions listed above. It is important to verify the dimensions of your tablet with a case/sleeve/skin when determining the overall size. The "U" in the part number reflects product packaged in poly bag.
- Weight:0.69 lbs.
