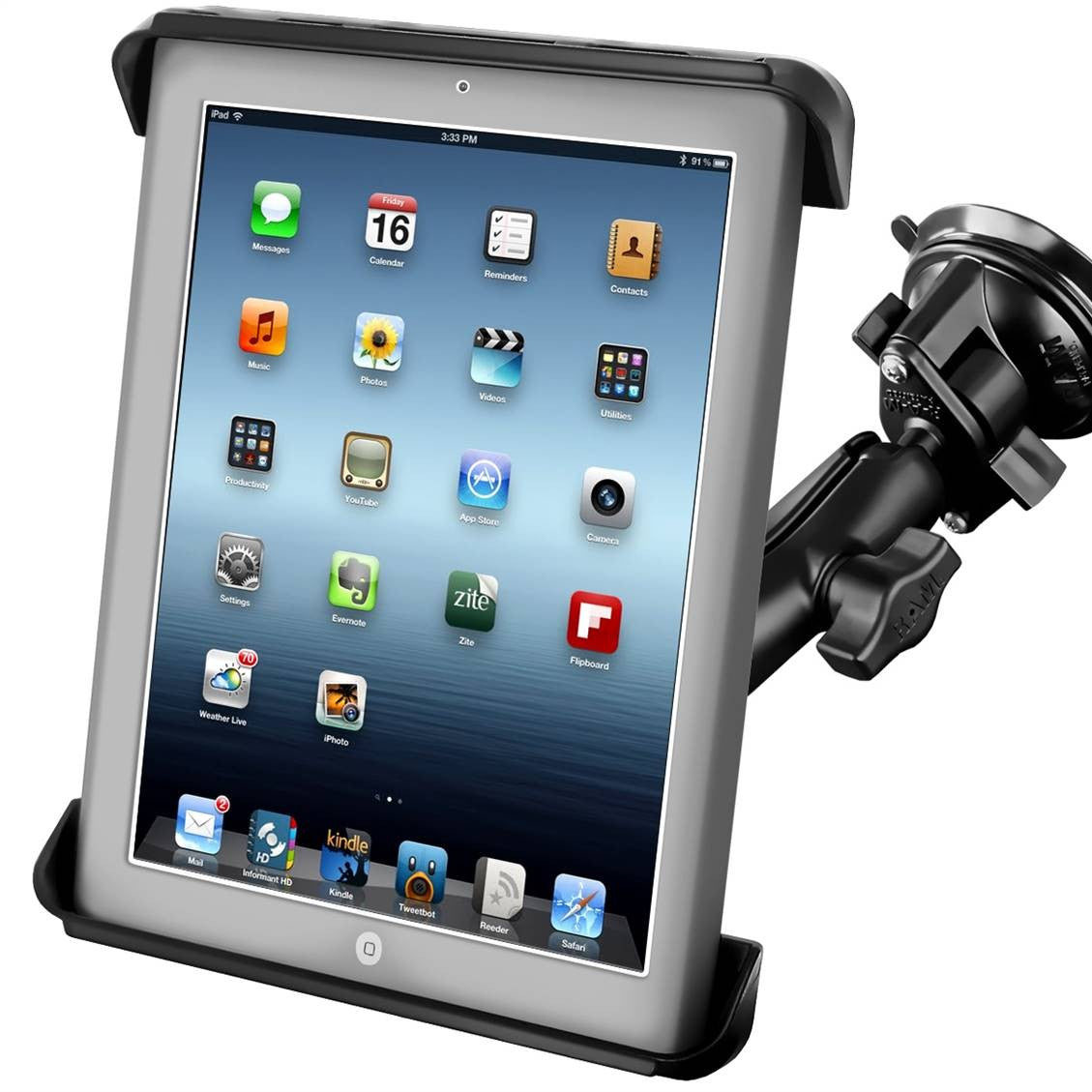

RAM Tab-Tite with RAM Twist-Lock Suctio

The RAM-B-166-TAB3U consists of a 3.3" diameter suction cup twist lock base, double socket arm,
round base adapter and Tab-Tite universal clamping cradle. The suction cup base is designed to have
a strong hold on glass and non-porous plastic surfaces, including RAM adhesive disks. The mount is
designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at
both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing
angles. The spring loaded Tab-Tite cradle makes it easy to load and unload your tablet, along with
keeping it secure while on the go. Interchangeable cup ends are designed to optimize the
functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your
tablet can be used just as it was intended. The Tab-Tite cradle is compatible with any tablet that
will fit the dimensions listed below. It is important to verify the dimensions of your tablet when
determining the overall size.

HARDWARE INCLUDED
Assembly Hardware

HOLDER DIMENSIONS
Height Range: 8.5" - 11.125"
Width Range: 6.38" - 7.75"
Depth Range: .13" - .56"

SUCTION SIZE
3.3" Diameter

SOCKET-TO-SOCKET LENGTH
3"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag

WEIGHT
1.2 lbs.
