RAM Tab-Tite with RAM Twist-Lock Suctio

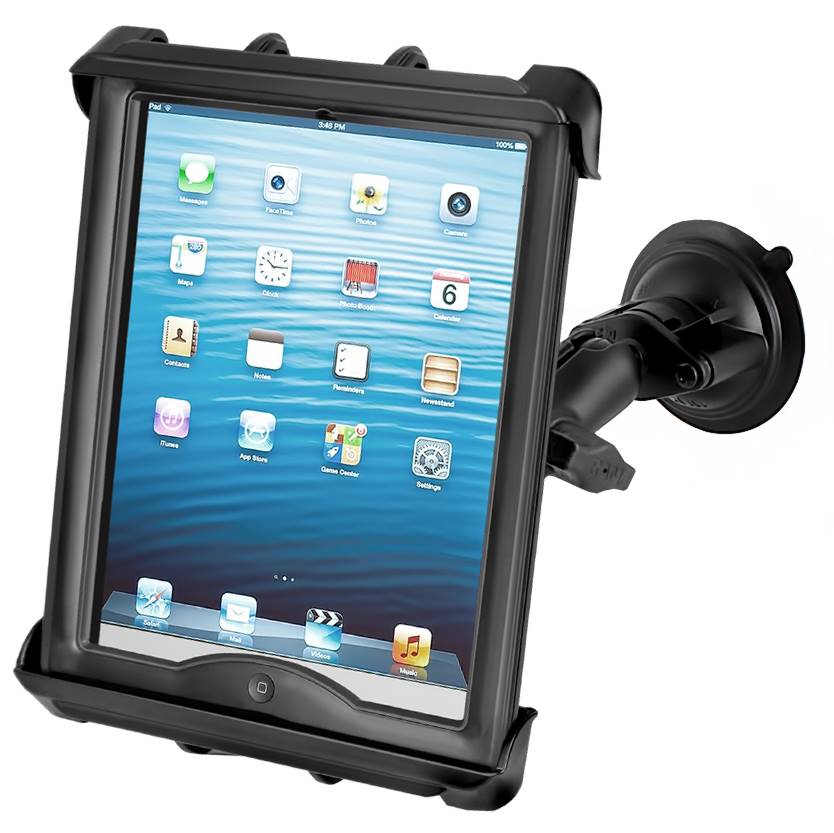

The RAM-B-166-TAB8U consists of a 3.3" diameter suction cup twist lock base, double socket arm,
round base adapter and Tab-Tite universal clamping cradle. The suction cup base is designed to have
a strong hold on glass and non-porous plastic surfaces, including RAM adhesive disks. The mount is
designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at
both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing
angles. The included Tab-Tite cradle includes a spring loaded back plate and custom support cups
for 10" screen tablets WITH heavy duty cases. The spring loaded design makes it easy to load and
unload your tablet, along with keeping it secure while on the go. Interchangeable cup ends are
designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power,
and other ports, your tablet can be used just as it was intended. The Tab-Tite cradle is compatible
with any tablet that will fit the dimensions listed below. It is important to verify the dimensions
of your tablet when determining the overall size.

HARDWARE INCLUDED
Assembly Hardware

HOLDER DIMENSIONS
Height Range: 9" - 11.5"
Width Range: 6.38" - 8.31"
Depth Range: .13" - 1.12"

SUCTION SIZE
3.3" Diameter

SOCKET-TO-SOCKET LENGTH
3"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag

WEIGHT
1.15 lbs.
