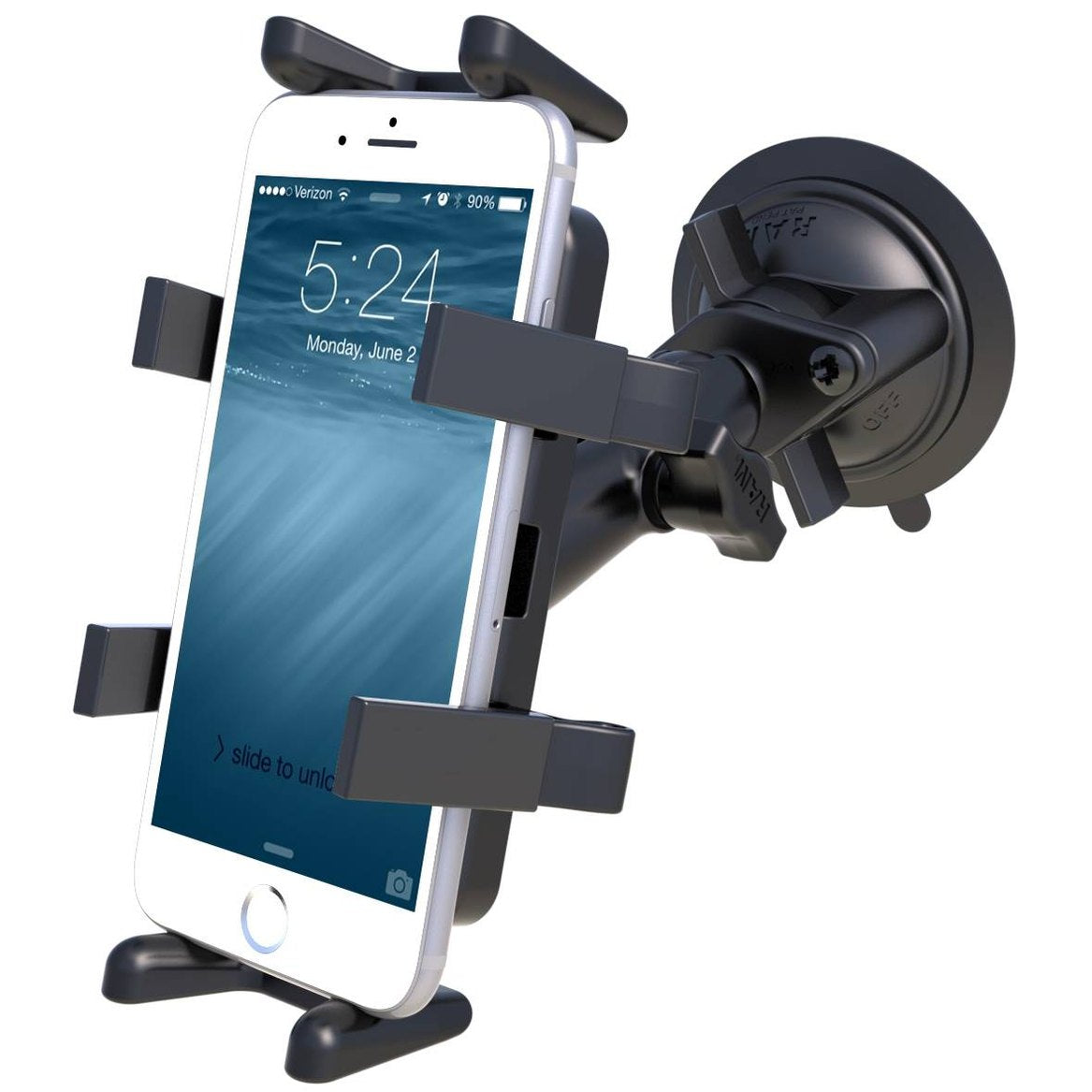

The RAM-B-166-UN4U consists of a 3.3" diameter suction cup twist lock base, double socket arm and
universal Finger Grip cradle. The suction cup, twist lock base is designed to have a strong hold on
glass and non-porous plastic surfaces, including RAM adhesive disks. The universal Finger Grip
cradle is designed to hold a large amount of cell phones and electronic devices. The cradle comes
with (3 sets) of four flexible rubber coated fingers placed along sides to grip your device. The
fingers open by squeezing the ends to open the small finger arms. The bottom of the cradle includes
a back plate that adds support to the device being held by the mount.
HARDWARE INCLUDED
Assembly Hardware
HOLDER DIMENSIONS
Height Range: 7.25" max (using optional supports)
Width Range: 1.25" - 3.5"
Max Depth: 1.5"
SUCTION SIZE
3.3" Diameter
SOCKET-TO-SOCKET LENGTH
3"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
High strength composite
PACKAGING TYPE
Poly Bag
ADDITIONAL INFORMATION
WEIGHT
1.03 lbs.
universal Finger Grip cradle. The suction cup, twist lock base is designed to have a strong hold on
glass and non-porous plastic surfaces, including RAM adhesive disks. The universal Finger Grip
cradle is designed to hold a large amount of cell phones and electronic devices. The cradle comes
with (3 sets) of four flexible rubber coated fingers placed along sides to grip your device. The
fingers open by squeezing the ends to open the small finger arms. The bottom of the cradle includes
a back plate that adds support to the device being held by the mount.
HARDWARE INCLUDED
Assembly Hardware
HOLDER DIMENSIONS
Height Range: 7.25" max (using optional supports)
Width Range: 1.25" - 3.5"
Max Depth: 1.5"
SUCTION SIZE
3.3" Diameter
SOCKET-TO-SOCKET LENGTH
3"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
High strength composite
PACKAGING TYPE
Poly Bag
ADDITIONAL INFORMATION
WEIGHT
1.03 lbs.
Height Dimensions:
- Minimum with Top and Bottom Supports: 5.25"
- Maximum with Top and Bottom Supports: 7.25"
- The top and bottom plates can be removed for larger devices.
Using Short Arm Side Clamps:
- Maximum Depth: 0.75"
- Minimum Width: 1.25"
- Maximum Width: 3.0"
Using Medium Arm Side Clamps:
- Maximum Depth: 1.25"
- Minimum Width: 1.5"
- Maximum Width: 3.5"
Using Long Arm Side Clamps:
- Maximum Depth: 1.6"
- Minimum Width: 2.25"
- Maximum Width: 3.5"
- Material:High Strength Composite and Powder Coated Marine Grade Aluminum
- Ball Size:B Size 1" Rubber Ball
- Plate Dimensions:2.5W x 5.0H"
- Note:The "U" in the part number reflects product packaged in poly bag.
- Weight:1.03 lbs.
