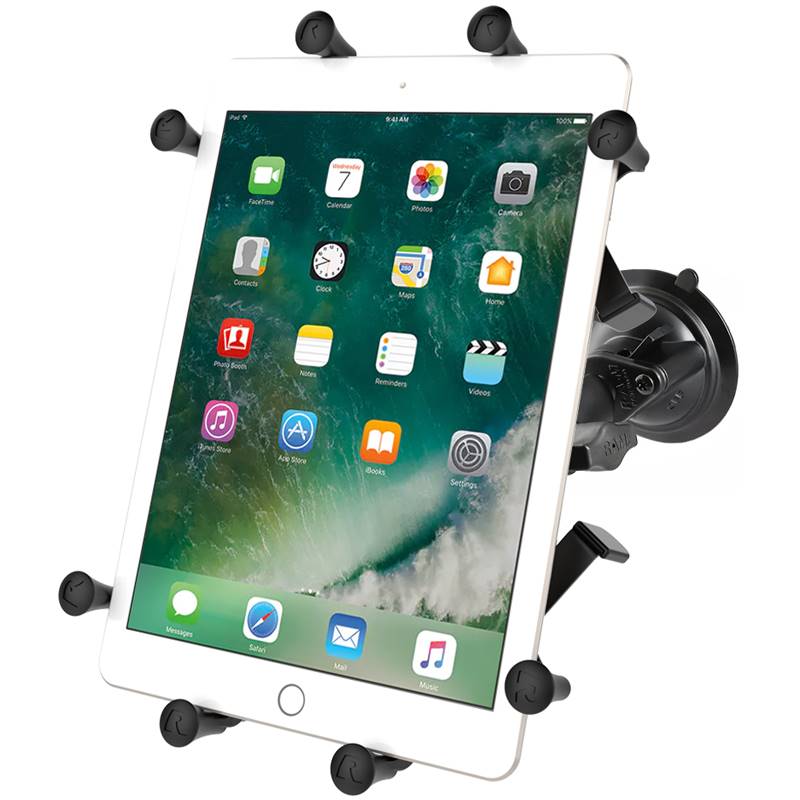

RAM-B-166-UN9U_RAM X-Grip with RAM Twist-Lock Suction C

The RAM-B-166-UN9U consists of a 3.3" diameter suction cup twist lock base, double socket arm, round
base adapter and universal X-Grip clamping cradle for 10" tablets. The suction cup base is designed
to have a strong hold on glass and non-porous plastic surfaces. The mount is designed with a RAM 1"
diameter patented rubber ball and socket system that has adjustment points at both ends of the
double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The
X-Grip clamping cradle consists of a composite spring loaded cradle, expandable grip arms and
additional bottom support keeper. Included are extra easy access grip knobs, located on the back of
the cradle for quick release of your tablet. The X-Grip clamping cradle expands and contracts for
perfect fit of most 10" tablets with or without sleeves, as well as some smaller tablets. Please
verify dimensions of your tablet below for compatibility with the X-Grip. The X-Grip cradle is
compatible with handheld devices that will fit the dimensions listed below. It is important to
verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall
size.

HARDWARE INCLUDED
Assembly Hardware

HOLDER DIMENSIONS
Max Height: 10.25" (using optional supports)
Width Range: 6.25" - 8.1"
Max Depth: .875"

SUCTION SIZE
3.3" Diameter

SOCKET-TO-SOCKET LENGTH
3"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag

FEATURES:
Spring-loaded 'X' design with rubber caps sports great holding power without hiding your tablet;
fits most 9"-10" tablets

Includes RAM Twist-Lock suction cup base ideal for vehicle windshields and medium length B size
RAM double socket arm; ball and socket technology allows for near-infinite adjustability

Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength
composite for durability and reliability in the most demanding environments

Backed by a lifetime warranty


WEIGHT
1.74 lbs.
