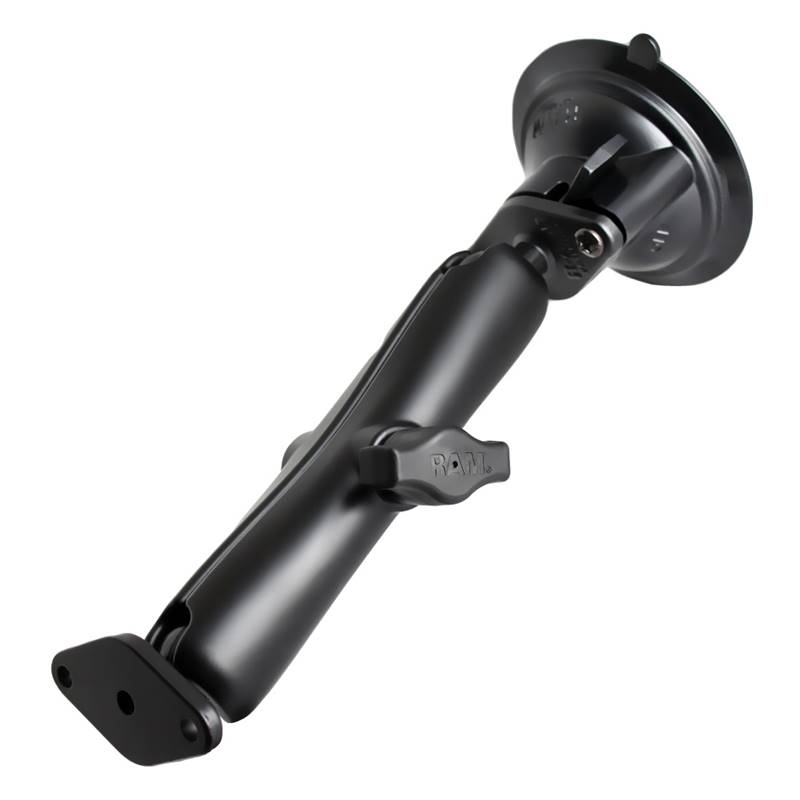

RAM-B-166U-C_RAM Twist-Lock Suction Cup Double Ball Mou

The RAM-B-166U-C consists of a 3.3" diameter suction cup twist lock base, LONG double socket arm and
diamond base adapter. The suction cup base is designed to have a strong hold on glass and non-porous
plastic surfaces, including RAM adhesive disks. The mount is designed with a RAM 1" diameter
patented rubber ball and socket system that has adjustment points at both ends of the double socket
arm; this allowing for almost infinite adjustment and perfect viewing angles. The hole pattern found
on the diamond base adapter will connect to most RAM cradles.

HARDWARE INCLUDED
Assembly Hardware

PRODUCT DIMENSIONS
Overall Height: 9"

SUCTION SIZE
3.3" Diameter

SOCKET-TO-SOCKET LENGTH
5.31"

HOLE PATTERN
2-Hole AMPS: 1.912"

PLATE SIZE
2.43" x 1.31"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag

WEIGHT
0.85 lbs.
