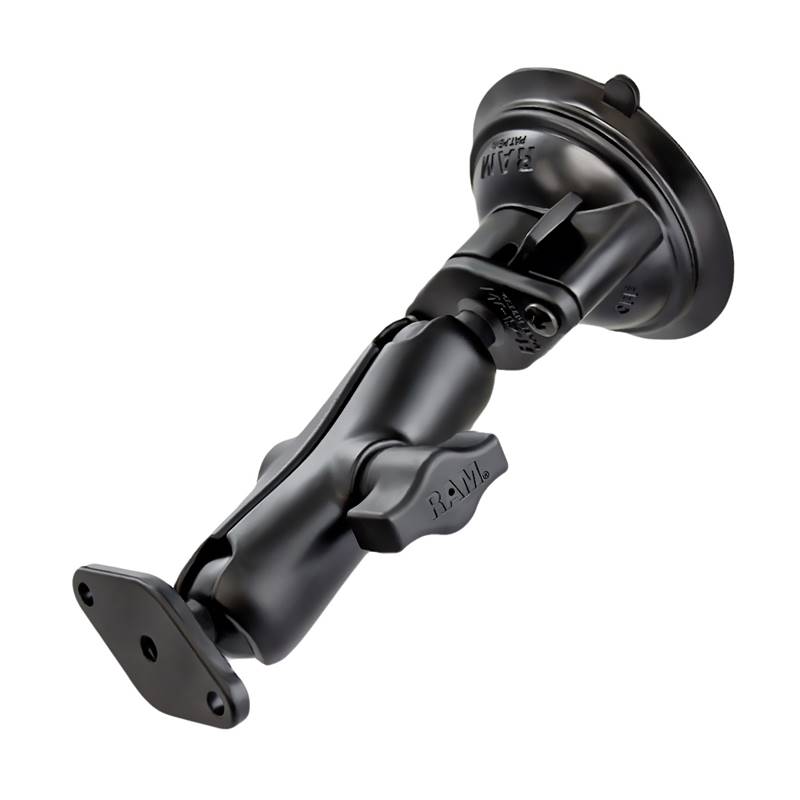

RAM-B-166U_RAM Twist-Lock Suction Cup Double Ball Mount

The RAM-B-166U consists of a 3.3" diameter suction cup twist lock base, STANDARD length double
socket arm and diamond base adapter. The suction cup base is designed to have a strong hold on glass
and non-porous plastic surfaces, including RAM adhesive disks. The mount is designed with a RAM 1"
diameter patented rubber ball and socket system that has adjustment points at both ends of the
double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The hole
pattern found on the diamond base adapter will connect to most RAM cradles.

HARDWARE INCLUDED
Assembly Hardware

PRODUCT DIMENSIONS
Overall Height: 6.69"

SUCTION SIZE
3.3" Diameter

SOCKET-TO-SOCKET LENGTH
3"

HOLE PATTERN
2-Hole AMPS: 1.912"

PLATE SIZE
2.43" x 1.31"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag

FEATURES:
RAM Twist-Lock suction cup base is ideal for vehicle windshields and other nonporous surfaces

Includes B size medium length RAM double socket arm and diamond bases with B size 1" rubber balls;
ball and socket technology allows for near-infinite adjustability

Made of powder-coated, marine-grade aluminum and high-strength composite for durability and
reliability in the most demanding environments

Backed by a lifetime warranty


WEIGHT
0.6 lbs.
