RAM Brake/Clutch Reservoir Mount with LE
RAM Brake/Clutch Reservoir Mount with LE
Regular price
$150.49 USD
Regular price
Sale price
$150.49 USD
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
Ball Size:
B Size 1"
UPC:
793442910500
Mfg Part #:
RAM-B-174-152U
Availability:
In Stock
Part Number:
RAM-B-174-152U
Quantity
Couldn't load pickup availability
Share
- Description
- Additional Info
- Components

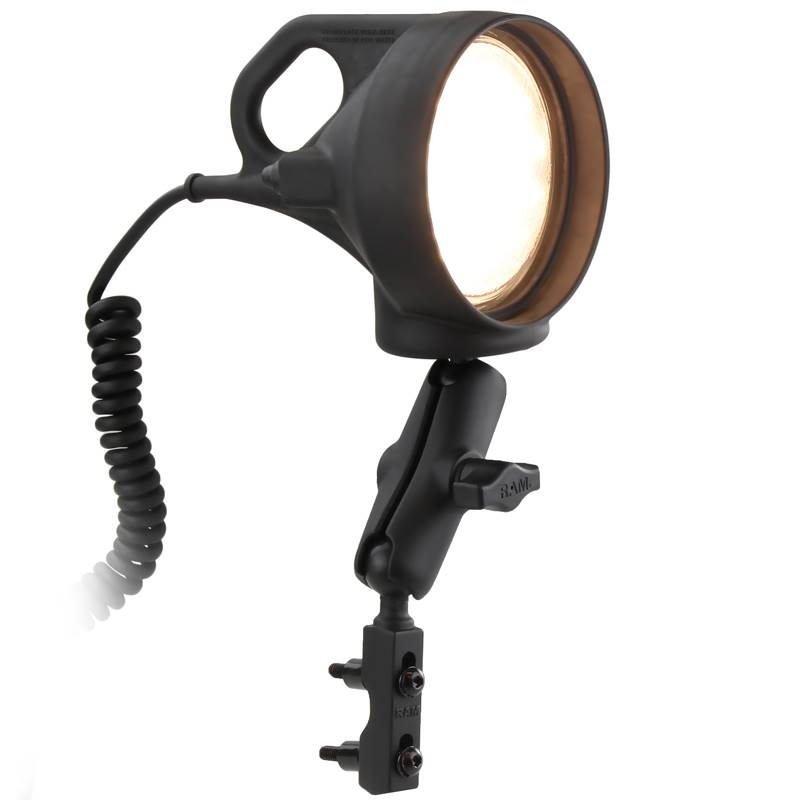

The RAM-B-174-152U consists of a 1" dia. ball rubber coated LED spotlight with brake/clutch
reservoir and handlebar/rail mount. The base consists of a 1" diameter rubber ball, hardware for
mounting to both brake/clutch reservoirs and rails that are 0.5" to 1.25" in diameter. The mounting
hardware for brake/clutch reservoirs include both standard and metric mounting bolts. Multiple pivot
points, rubber ball and socket technology allows for almost infinite adjustment and perfect viewing
angles.
HARDWARE INCLUDED
(2) M6 x 55mm Hex Bolts
(2) #1/4-20 x 2" Hex Bolts
(2) 1/4"-20 x 2.5" Hex Bolts
(2) 1/2" Spacers
(2) 1/4" Split Lock Washers
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
BULB SPECIFICATIONS
PAR36
12 Volts DC
9 Watts
1900 Lumens
Sealed Beam
30-Degree Spot Light
Frosted Lens
4500K Color Temp
CLAMP RANGE
.5" - 1.25" diameter
SOCKET-TO-SOCKET LENGTH
3"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
Rubber
PACKAGING TYPE
Poly Bag
WEIGHT
0.51 lbs.
reservoir and handlebar/rail mount. The base consists of a 1" diameter rubber ball, hardware for
mounting to both brake/clutch reservoirs and rails that are 0.5" to 1.25" in diameter. The mounting
hardware for brake/clutch reservoirs include both standard and metric mounting bolts. Multiple pivot
points, rubber ball and socket technology allows for almost infinite adjustment and perfect viewing
angles.
HARDWARE INCLUDED
(2) M6 x 55mm Hex Bolts
(2) #1/4-20 x 2" Hex Bolts
(2) 1/4"-20 x 2.5" Hex Bolts
(2) 1/2" Spacers
(2) 1/4" Split Lock Washers
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
BULB SPECIFICATIONS
PAR36
12 Volts DC
9 Watts
1900 Lumens
Sealed Beam
30-Degree Spot Light
Frosted Lens
4500K Color Temp
CLAMP RANGE
.5" - 1.25" diameter
SOCKET-TO-SOCKET LENGTH
3"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
Rubber
PACKAGING TYPE
Poly Bag
WEIGHT
0.51 lbs.
Bulb Specifications:
- PAR36
- 12 Volts DC
- 9 Watts
- 1900 Lumens
- Sealed Beam
- 30-Degree Spot Light
- Frosted Lens
- 4500K Color Temp
- Material:Powder Coated Marine Grade Aluminum
- Ball Size:B Size 1" Rubber Ball
- Note:The RAM-B-174-152U can mount to both the brake/clutch reservoir or any round rail that is 0.5" to 1.25" in diameter. To see if the RAM-B-174-152U base will mount to your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centers have a minimum width of 0.94" and a maximum of 1.58". The "U" in the part number reflects product packaged in poly bag.
- Weight:0.51 lbs.
