RAM Motorcycle Brake/Clutch Reservoir Mo
RAM Motorcycle Brake/Clutch Reservoir Mo
Regular price
$48.99 USD
Regular price
Sale price
$48.99 USD
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
Ball Size:
B Size 1"
UPC:
793442901799
Mfg Part #:
RAM-B-174-202U
Availability:
In Stock
Part Number:
RAM-B-174-202U
Quantity
Couldn't load pickup availability
Share
- Description
- Additional Info
- Components

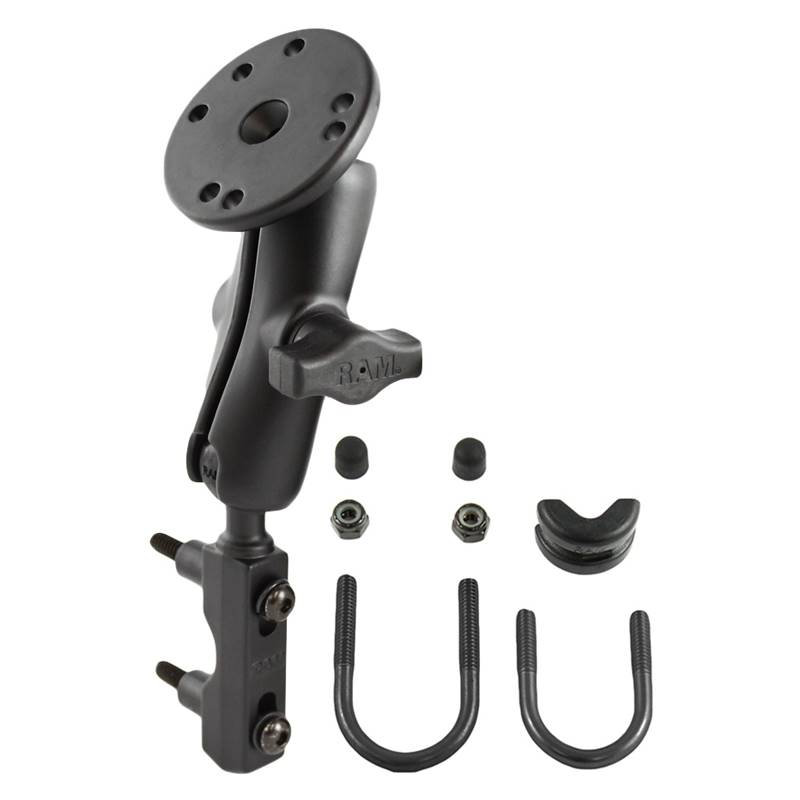

The RAM-B-174-202U consists of a hardware for mounting to both brake/clutch reservoirs and rails
that are 0.5" to 1.25" in diameter, double socket arm and 2.5" diameter round base adapter that
contains the universal AMPs hole pattern. The mounting hardware for brake/clutch reservoirs include
both standard and metric mounting bolts. The mount is designed with a RAM 1" diameter patented
rubber ball and socket system that has adjustment points at both ends of the double socket arm; this
allowing for almost infinite adjustment and perfect viewing angles.
HARDWARE INCLUDED
(2) M6 x 55mm Hex Bolts
(2) #1/4-20 x 2" Hex Bolts
(2) 1/4"-20 x 2.5" Hex Bolts
(2) 1/2" Spacers
(2) 1/4" Split Lock Washers
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
CLAMP RANGE
.5" - 1.25" diameter
SOCKET-TO-SOCKET LENGTH
3"
HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
0.51 lbs.
that are 0.5" to 1.25" in diameter, double socket arm and 2.5" diameter round base adapter that
contains the universal AMPs hole pattern. The mounting hardware for brake/clutch reservoirs include
both standard and metric mounting bolts. The mount is designed with a RAM 1" diameter patented
rubber ball and socket system that has adjustment points at both ends of the double socket arm; this
allowing for almost infinite adjustment and perfect viewing angles.
HARDWARE INCLUDED
(2) M6 x 55mm Hex Bolts
(2) #1/4-20 x 2" Hex Bolts
(2) 1/4"-20 x 2.5" Hex Bolts
(2) 1/2" Spacers
(2) 1/4" Split Lock Washers
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
CLAMP RANGE
.5" - 1.25" diameter
SOCKET-TO-SOCKET LENGTH
3"
HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
0.51 lbs.
- Material:Marine Grade Aluminum with Chrome Finish
- Ball Size:B Size 1" Rubber Ball
- Note:The "U" in the part number reflects product packaged in poly bag. This product can mount to both the brake/clutch reservoir or any round rail that is 0.5" to 1.25" in diameter. To see if the base will mount to your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centers have a minimum width of 0.94" and a maximum of 1.58".
- Weight:0.51 lbs.
