RAM Power Plate III Brake/Clutch Reser

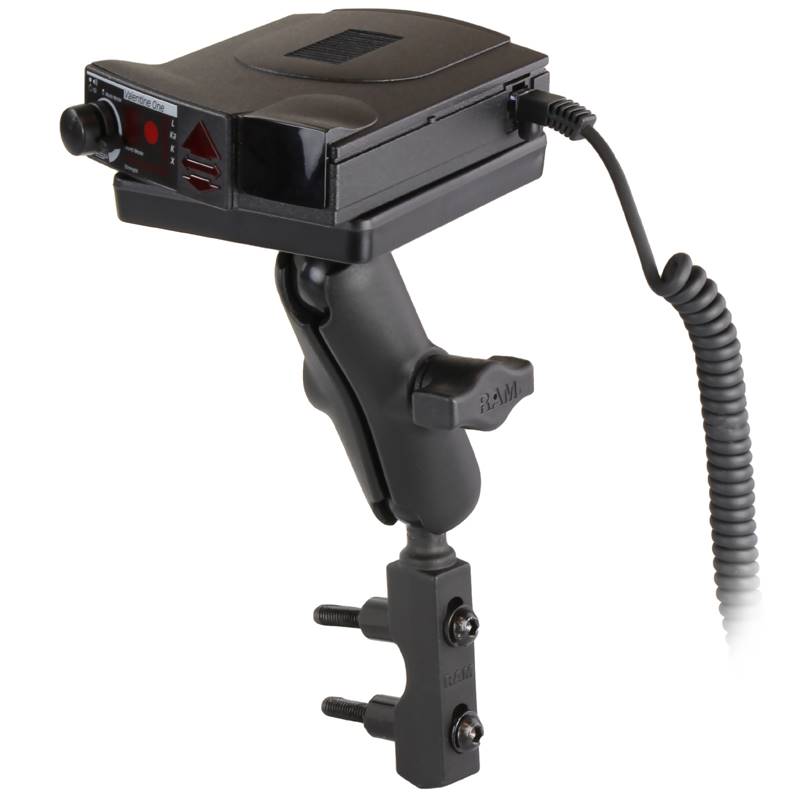

The RAM Magnetic Power Plate III U-Bolt Handlebar Mount is designed to hold radar detectors
securely while on the road. The magnetic plate includes two powerful rare earth magnets, composite
cradle and one adhesive steel plate. To mount your device to the magnet, simply adhere the steel
plate to the back of you device and lock up against the holder. This holder includes a quick-release
function, where the device conventiely can be removed by twisting out of the holder in one easy
motion. The brake/clutch reservoir mount includes both standard and metric mounting bolts to replace
the factory bolts on your bike. The patented double ball and socket design provides infinite
adjustability, so you can articulate your radar detector to the perfect viewing and operating angle.
The rubber ball components provide shock and vibration damping, making this mount suitable for any
rugged environment.

HARDWARE INCLUDED
Assembly Hardware
(1) 50mm x 38mm Steel Adhesive Plate
(2) M6 x 55mm Hex Bolts
(2) #1/4-20 x 2" Hex Bolts
(2) 1/4"-20 x 2.5" Hex Bolts
(2) 1/2" Spacers
(2) 1/4" Split Lock Washers
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

CLAMP RANGE
.5" - 1.25" diameter

SOCKET-TO-SOCKET LENGTH
3"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag
