RAM Motorcycle Brake/Clutch Reservoir

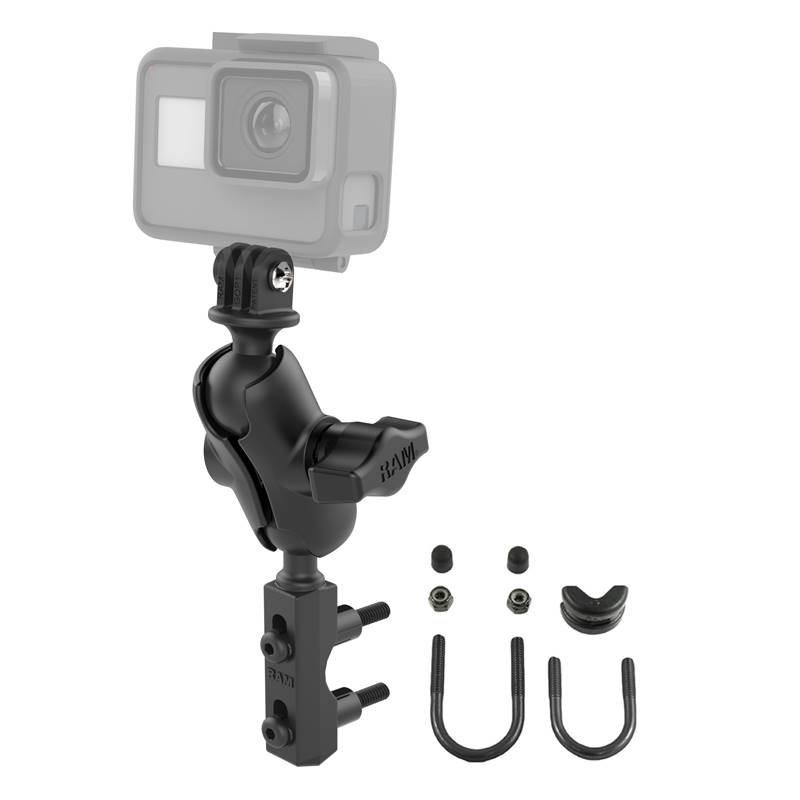

The RAM-B-174-A-132 consists of hardware for mounting to either brake/clutch reservoirs and rails
that are 0.5" to 1.25" in diameter, short length double socket arm and action cammera mount.
Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment
points at both ends of the socket arm. The mounting hardware for brake/clutch reservoirs include
both standard and metric mounting bolts.

HARDWARE INCLUDED
Assembly Hardware
(2) M6 x 55mm Hex Bolts
(2) #1/4-20 x 2" Hex Bolts
(2) 1/4"-20 x 2.5" Hex Bolts
(2) 1/2" Spacers
(2) 1/4" Split Lock Washers
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

CLAMP RANGE
.5" - 1.25" diameter

SOCKET-TO-SOCKET LENGTH
1.75"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag
