RAM Brake/Clutch Reservoir Mount for Ga
RAM Brake/Clutch Reservoir Mount for Ga
Regular price
$58.99 USD
Regular price
Sale price
$58.99 USD
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
Ball Size:
B Size 1"
UPC:
793442929854
Mfg Part #:
RAM-B-174-GA35U
Availability:
Out Of Stock
Part Number:
RAM-B-174-GA35U
Quantity
Couldn't load pickup availability
Share
- Description
- Additional Info
- Components

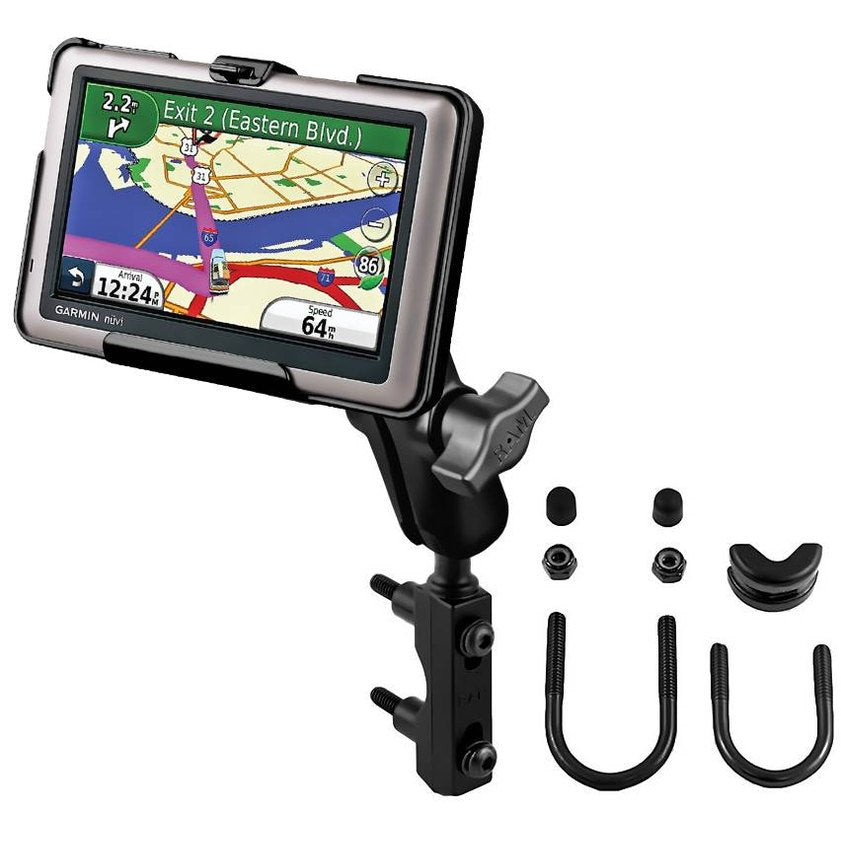

The RAM-B-174-GA35U consists of a double socket arm, hardware for mounting to both brake/clutch
reservoirs and rails that are 0.5" to 1.25" in diameter, diamond base adapter and custom form-fitted
cradle. Designed into the mount is a 1" diameter patented rubber ball and socket system with
adjustment points at both ends of the socket arm; this with a twist of the arm knob, allows you to
move the cradle to your optimum viewing position. The mounting hardware for brake/clutch reservoirs
include both standard and metric mounting bolts.
HARDWARE INCLUDED
Assembly Hardware
(2) M6 x 55mm Hex Bolts
(2) #1/4-20 x 2" Hex Bolts
(2) 1/4"-20 x 2.5" Hex Bolts
(2) 1/2" Spacers
(2) 1/4" Split Lock Washers
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
CLAMP RANGE
.5" - 1.25" diameter
SOCKET-TO-SOCKET LENGTH
3"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
High strength composite
PACKAGING TYPE
Poly Bag
WEIGHT
0.51 lbs.
reservoirs and rails that are 0.5" to 1.25" in diameter, diamond base adapter and custom form-fitted
cradle. Designed into the mount is a 1" diameter patented rubber ball and socket system with
adjustment points at both ends of the socket arm; this with a twist of the arm knob, allows you to
move the cradle to your optimum viewing position. The mounting hardware for brake/clutch reservoirs
include both standard and metric mounting bolts.
HARDWARE INCLUDED
Assembly Hardware
(2) M6 x 55mm Hex Bolts
(2) #1/4-20 x 2" Hex Bolts
(2) 1/4"-20 x 2.5" Hex Bolts
(2) 1/2" Spacers
(2) 1/4" Split Lock Washers
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
CLAMP RANGE
.5" - 1.25" diameter
SOCKET-TO-SOCKET LENGTH
3"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
High strength composite
PACKAGING TYPE
Poly Bag
WEIGHT
0.51 lbs.
- Material:High Strength Composite &
Powder Coated Marine Grade Aluminum - Ball Size:B Size 1" Rubber Ball
- Note:The "U" in the part number reflects product packaged in poly bag. This product can mount to both the brake/clutch reservoir or any round rail that is 0.5" to 1.25" in diameter. To see if the base will mount to your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centers have a minimum width of 0.94" and a maximum of 1.58".
- Weight:0.51 lbs.
