RAM Brake/Clutch Reservoir Mount with U
RAM Brake/Clutch Reservoir Mount with U
Regular price
$50.99 USD
Regular price
Sale price
$50.99 USD
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
Ball Size:
B Size 1"
UPC:
793442943706
Mfg Part #:
RAM-B-174-GOP1U
Availability:
In Stock
Part Number:
RAM-B-174-GOP1U
Quantity
Couldn't load pickup availability
Share
- Description
- Additional Info
- Components

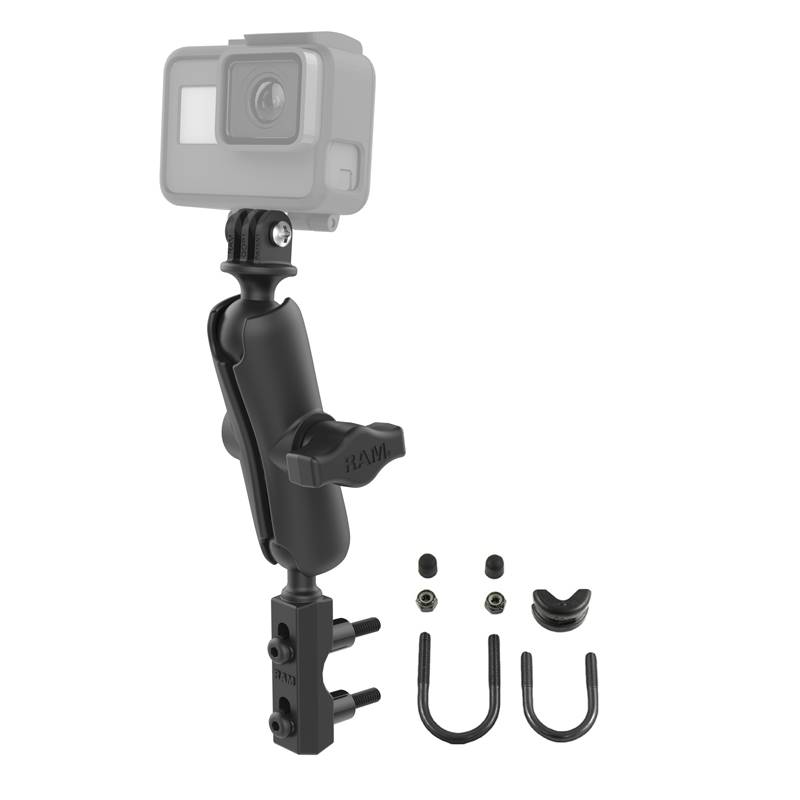

The RAM-B-174-GOP1U consists of a hardware for mounting to both brake/clutch reservoirs and rails
that are 0.5" to 1.25" in diameter, double socket arm and 1" diameter ball with custom GoPro Hero
adapter. The mounting hardware for brake/clutch reservoirs include both standard and metric mounting
bolts. The GoPro Hero adapter attaches directly to the under-side of the camera, replacing the
factory mounting bracket. The mount is designed with a RAM 1" diameter patented rubber ball and
socket system that has adjustment points at both ends of the double socket arm; this allowing for
almost infinite adjustment and perfect viewing angles.
HARDWARE INCLUDED
Assembly Hardware
(2) M6 x 55mm Hex Bolts
(2) #1/4-20 x 2" Hex Bolts
(2) 1/4"-20 x 2.5" Hex Bolts
(2) 1/2" Spacers
(2) 1/4" Split Lock Washers
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
CLAMP RANGE
.5" - 1.25" diameter
SOCKET-TO-SOCKET LENGTH
3"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
High strength composite
PACKAGING TYPE
Poly Bag
WEIGHT
0.51 lbs.
that are 0.5" to 1.25" in diameter, double socket arm and 1" diameter ball with custom GoPro Hero
adapter. The mounting hardware for brake/clutch reservoirs include both standard and metric mounting
bolts. The GoPro Hero adapter attaches directly to the under-side of the camera, replacing the
factory mounting bracket. The mount is designed with a RAM 1" diameter patented rubber ball and
socket system that has adjustment points at both ends of the double socket arm; this allowing for
almost infinite adjustment and perfect viewing angles.
HARDWARE INCLUDED
Assembly Hardware
(2) M6 x 55mm Hex Bolts
(2) #1/4-20 x 2" Hex Bolts
(2) 1/4"-20 x 2.5" Hex Bolts
(2) 1/2" Spacers
(2) 1/4" Split Lock Washers
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
CLAMP RANGE
.5" - 1.25" diameter
SOCKET-TO-SOCKET LENGTH
3"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
High strength composite
PACKAGING TYPE
Poly Bag
WEIGHT
0.51 lbs.
- Material:Powder Coated Marine Grade Aluminum and High Strength Composite
- Ball Size:B Size 1" Rubber Ball
- Note:The "U" in the part number reflects product packaged in poly bag. To see if the RAM-B-174-GOP1U base will mount to your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centers have a minimum width of 0.94" and a maximum of 1.58". GoPro camera and black thumb screw not included with purchase.
- Weight:0.51 lbs.
