RAM Brake/Clutch Reservoir Mount for To
RAM Brake/Clutch Reservoir Mount for To
Regular price
$46.99 USD
Regular price
Sale price
$46.99 USD
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
Ball Size:
B Size 1"
UPC:
793442906107
Mfg Part #:
RAM-B-174-TOM1U
Availability:
In Stock
Part Number:
RAM-B-174-TOM1U
Quantity
Couldn't load pickup availability
Share
- Description
- Additional Info
- Components

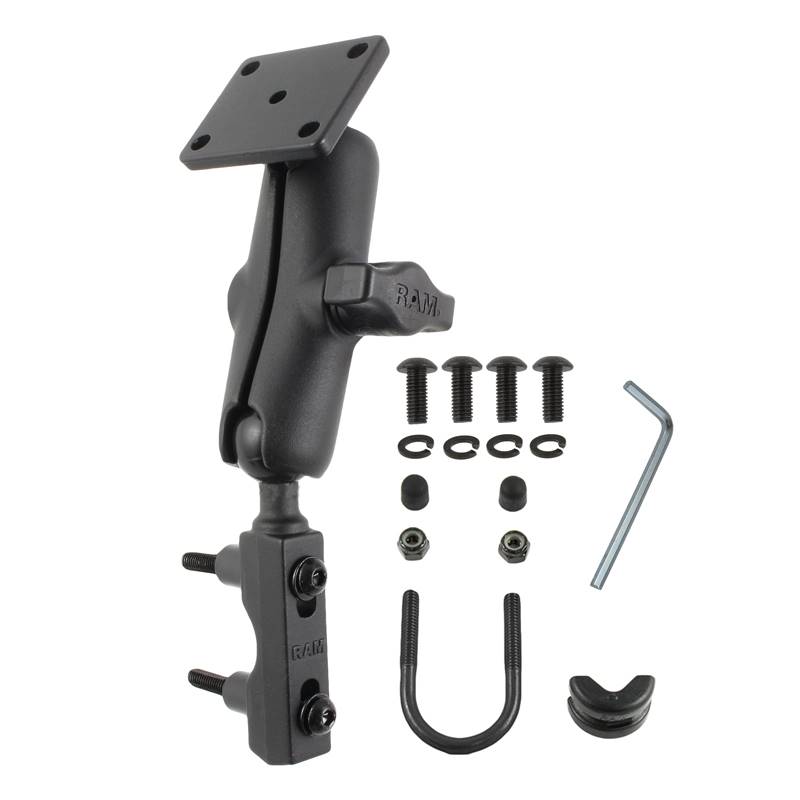

The RAM-B-174-TOM1U consists of a hardware for mounting to both brake/clutch reservoirs and rails
that are 0.5" to 1.25" in diameter, double socket arm and custom TomTom base adapter. The mounting
hardware for brake/clutch reservoirs include both standard and metric mounting bolts. The custom
TomTom adapter base connects to the back of the factory cradle that is included with the purchase of
the TomTom Rider 2/Urban Rider. The screws that are included with the RAM-B-174-TOM1U match up with
the threads on the back of the RIDER 2/Urban Rider. The mount is designed with a RAM 1" diameter
patented rubber ball and socket system that has adjustment points at both ends of the double socket
arm; this allowing for almost infinite adjustment and perfect viewing angles.
HARDWARE INCLUDED
(4) M5 x 12mm Machine Screws
(4) M5 Stainless Steel Lock Washers
(1) M3 Hex Key Wrench
(2) M6 x 55mm Hex Bolts
(2) #1/4-20 x 2" Hex Bolts
(2) 1/2" Spacers
(2) 1/4" Split Lock Washers
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
CLAMP RANGE
.5" - 1.25" diameter
SOCKET-TO-SOCKET LENGTH
3"
HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
0.76 lbs.
that are 0.5" to 1.25" in diameter, double socket arm and custom TomTom base adapter. The mounting
hardware for brake/clutch reservoirs include both standard and metric mounting bolts. The custom
TomTom adapter base connects to the back of the factory cradle that is included with the purchase of
the TomTom Rider 2/Urban Rider. The screws that are included with the RAM-B-174-TOM1U match up with
the threads on the back of the RIDER 2/Urban Rider. The mount is designed with a RAM 1" diameter
patented rubber ball and socket system that has adjustment points at both ends of the double socket
arm; this allowing for almost infinite adjustment and perfect viewing angles.
HARDWARE INCLUDED
(4) M5 x 12mm Machine Screws
(4) M5 Stainless Steel Lock Washers
(1) M3 Hex Key Wrench
(2) M6 x 55mm Hex Bolts
(2) #1/4-20 x 2" Hex Bolts
(2) 1/2" Spacers
(2) 1/4" Split Lock Washers
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
CLAMP RANGE
.5" - 1.25" diameter
SOCKET-TO-SOCKET LENGTH
3"
HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
0.76 lbs.
- Material:Powder Coated Marine Grade Aluminum and High Strength Composite
- Ball Size:B Size 1" Rubber Ball
- Note:The "U" in the part number reflects product packaged in poly bag. This product can mount to both the brake/clutch reservoir or any round rail that is 0.5" to 1.25" in diameter. To see if the base will mount to your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centers have a minimum width of 0.94" and a maximum of 1.58".
- Weight:0.76 lbs.
