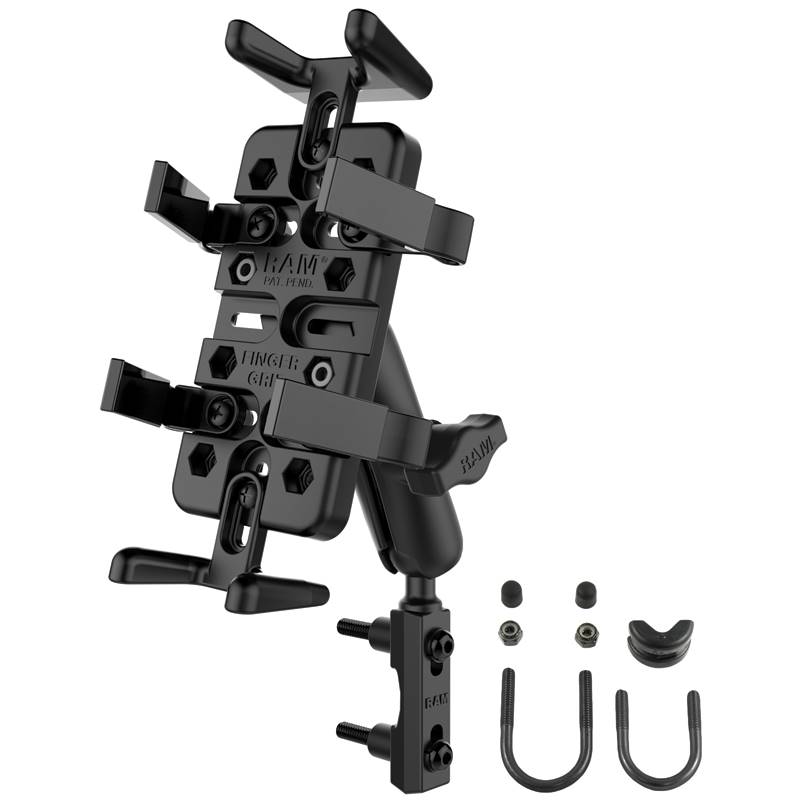

The RAM-B-174-UN4U consists of a hardware for mounting to both brake/clutch reservoirs and rails
that are 0.5" to 1.25" in diameter, double socket arm, diamand adapter base and high strength
universal Finger Grip cradle. The mounting hardware for brake/clutch reservoirs include both
standard and metric mounting bolts. The base fits the control clamps on your motorcycle with 40mm x
6mm stainless steel hardware, provided in the kit. To see if the base will mount to your motorcycle,
check the hole spacing of the base against your clutch/brake reservoir. The holes centers have a
minimum width of 0.94" and a maximum of 1.58".
HARDWARE INCLUDED
Assembly Hardware
(2) M6 x 55mm Hex Bolts
(2) #1/4-20 x 2" Hex Bolts
(2) 1/4"-20 x 2.5" Hex Bolts
(2) 1/2" Spacers
(2) 1/4" Split Lock Washers
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
HOLDER DIMENSIONS
Height Range: 7.25" max (using optional supports)
Width Range: 1.25" - 3.5"
Max Depth: 1.5"
CLAMP RANGE
.5" - 1.25" diameter
SOCKET-TO-SOCKET LENGTH
3"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
High strength composite
PACKAGING TYPE
Poly Bag
ADDITIONAL INFORMATION
WEIGHT
1.25 lbs.
that are 0.5" to 1.25" in diameter, double socket arm, diamand adapter base and high strength
universal Finger Grip cradle. The mounting hardware for brake/clutch reservoirs include both
standard and metric mounting bolts. The base fits the control clamps on your motorcycle with 40mm x
6mm stainless steel hardware, provided in the kit. To see if the base will mount to your motorcycle,
check the hole spacing of the base against your clutch/brake reservoir. The holes centers have a
minimum width of 0.94" and a maximum of 1.58".
HARDWARE INCLUDED
Assembly Hardware
(2) M6 x 55mm Hex Bolts
(2) #1/4-20 x 2" Hex Bolts
(2) 1/4"-20 x 2.5" Hex Bolts
(2) 1/2" Spacers
(2) 1/4" Split Lock Washers
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
HOLDER DIMENSIONS
Height Range: 7.25" max (using optional supports)
Width Range: 1.25" - 3.5"
Max Depth: 1.5"
CLAMP RANGE
.5" - 1.25" diameter
SOCKET-TO-SOCKET LENGTH
3"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
High strength composite
PACKAGING TYPE
Poly Bag
ADDITIONAL INFORMATION
WEIGHT
1.25 lbs.
Purchase Includes:
- (QTY. 1) Universal Finger Gripâ„¢ cradle
- (QTY. 1) Base/ball adaptor (attaches directly to cradle)
- (QTY. 1) Standard size double socket arm
- (QTY. 1) Mounting base (mounts to either brake/clutch reservoir or rail/handlebar)
- (QTY. 1) Hardware for mounting to either brake/clutch reservoir or rail/handlebar
Height Dimensions:
- Minimum with Top and Bottom Supports: 5.25"
- Maximum with Top and Bottom Supports: 7.25"
- The top and bottom plates can be removed for larger devices.
Dimensions for Short Arm Clamps:
- Maximum Depth: 0.75"
- Minimum Width: 1.25"
- Maximum Width: 3.0"
Dimensions for Medium Arm Clamps:
- Maximum Depth: 1.25"
- Minimum Width: 1.5"
- Minimum Width: 3.5"
Dimensions for Long Arm Clamps:
- Maximum Depth: 1.6"
- Maximum Depth: 2.25"
- Maximum Depth: 3.5"
- Material:High Strength Composite &
Powder Coated Marine Grade Aluminum - Ball Size:B Size 1" Rubber Ball
- Plate Dimensions:2.5W x 5.0H"
- Note:The "U" in the part number reflects product packaged in poly bag. This product can mount to both the brake/clutch reservoir or any round rail that is 0.5" to 1.25" in diameter. To see if the base will mount to your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centers have a minimum width of 0.94" and a maximum of 1.58".
- Weight:1.25 lbs.
