RAM Chrome Motorcycle Brake/Clutch Res
RAM Chrome Motorcycle Brake/Clutch Res
Regular price
$135.99 USD
Regular price
Sale price
$135.99 USD
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
Ball Size:
B Size 1"
UPC:
793442947964
Mfg Part #:
RAM-B-174CH-202U
Availability:
In Stock
Part Number:
RAM-B-174CH-202U
Quantity
Couldn't load pickup availability
Share
- Description
- Additional Info
- Components

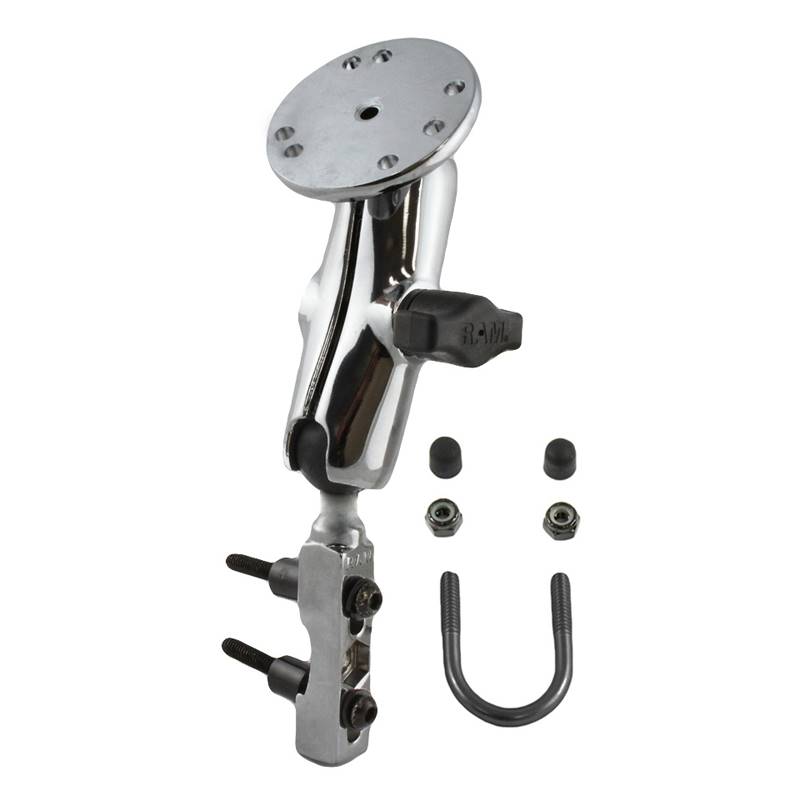

The RAM-B-174CH-202U consists of a chrome 1" diameter rubber ball, double socket arm, hardware for
mounting to both brake/clutch reservoirs and rails that are 0.5" to 1" in diameter and 2.5" diameter
round base that contains the universal AMPs hole pattern. The mounting hardware for brake/clutch
reservoirs include both standard and metric mounting bolts. Designed into the mount is a 1" diameter
patented rubber ball and socket system with adjustment points at both ends of the socket arm; this
with a twist of the arm knob allows you to move the mount to your optimum viewing position.
HARDWARE INCLUDED
(2) M6 x 55mm Hex Bolts
(2) #1/4-20 x 2" Hex Bolts
(2) 1/4"-20 x 2.5" Hex Bolts
(2) 1/2" Spacers
(2) 1/4" Split Lock Washers
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
CLAMP RANGE
.5" - 1.25" diameter
SOCKET-TO-SOCKET LENGTH
3"
HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
0.79 lbs.
mounting to both brake/clutch reservoirs and rails that are 0.5" to 1" in diameter and 2.5" diameter
round base that contains the universal AMPs hole pattern. The mounting hardware for brake/clutch
reservoirs include both standard and metric mounting bolts. Designed into the mount is a 1" diameter
patented rubber ball and socket system with adjustment points at both ends of the socket arm; this
with a twist of the arm knob allows you to move the mount to your optimum viewing position.
HARDWARE INCLUDED
(2) M6 x 55mm Hex Bolts
(2) #1/4-20 x 2" Hex Bolts
(2) 1/4"-20 x 2.5" Hex Bolts
(2) 1/2" Spacers
(2) 1/4" Split Lock Washers
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
CLAMP RANGE
.5" - 1.25" diameter
SOCKET-TO-SOCKET LENGTH
3"
HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
0.79 lbs.
- Material:Powder Coated Marine Grade Aluminum
- Ball Size:B Size 1" Rubber Ball
- Note:The "U" in the part number reflects product packaged in poly bag. This product can mount to both the brake/clutch reservoir or any round rail that is 0.5" to 1.25" in diameter. To see if the base will mount to your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centers have a minimum width of 0.94" and a maximum of 1.58".
- Weight:0.79 lbs.
