RAM Motorcycle Brake/Clutch Reservoir Moun
RAM Motorcycle Brake/Clutch Reservoir Moun
Regular price
$45.99 USD
Regular price
Sale price
$45.99 USD
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
Ball Size:
B Size 1"
UPC:
793442952623
Mfg Part #:
RAM-B-174U-A
Availability:
In Stock
Part Number:
RAM-B-174U-A
Quantity
Couldn't load pickup availability
Share
- Description
- Additional Info
- Components
The RAM-B-174U-A consists of hardware for mounting to either brake/clutch reservoirs and rails that
are 0.5" to 1.25" in diameter, short length double socket arm and diamond plate for mounting to RAM
device cradles or anything with an AMPs hole pattern. The mounting hardware for brake/clutch
reservoirs include both standard and metric mounting bolts. Designed into the mount is a 1" diameter
patented rubber ball and socket system with adjustment points at both ends of the socket arm; this
with a twist of the arm knob allows you to move the mount to your optimum viewing position.
HARDWARE INCLUDED
(2) M6 x 55mm Hex Bolts
(2) #1/4-20 x 2" Hex Bolts
(2) 1/4"-20 x 2.5" Hex Bolts
(2) 1/2" Spacers
(2) 1/4" Split Lock Washers
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
CLAMP RANGE
.5" - 1.25" diameter
SOCKET-TO-SOCKET LENGTH
1.75"
HOLE PATTERN
2-Hole AMPS: 1.912"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
0.75 lbs.
are 0.5" to 1.25" in diameter, short length double socket arm and diamond plate for mounting to RAM
device cradles or anything with an AMPs hole pattern. The mounting hardware for brake/clutch
reservoirs include both standard and metric mounting bolts. Designed into the mount is a 1" diameter
patented rubber ball and socket system with adjustment points at both ends of the socket arm; this
with a twist of the arm knob allows you to move the mount to your optimum viewing position.
HARDWARE INCLUDED
(2) M6 x 55mm Hex Bolts
(2) #1/4-20 x 2" Hex Bolts
(2) 1/4"-20 x 2.5" Hex Bolts
(2) 1/2" Spacers
(2) 1/4" Split Lock Washers
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
CLAMP RANGE
.5" - 1.25" diameter
SOCKET-TO-SOCKET LENGTH
1.75"
HOLE PATTERN
2-Hole AMPS: 1.912"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
0.75 lbs.

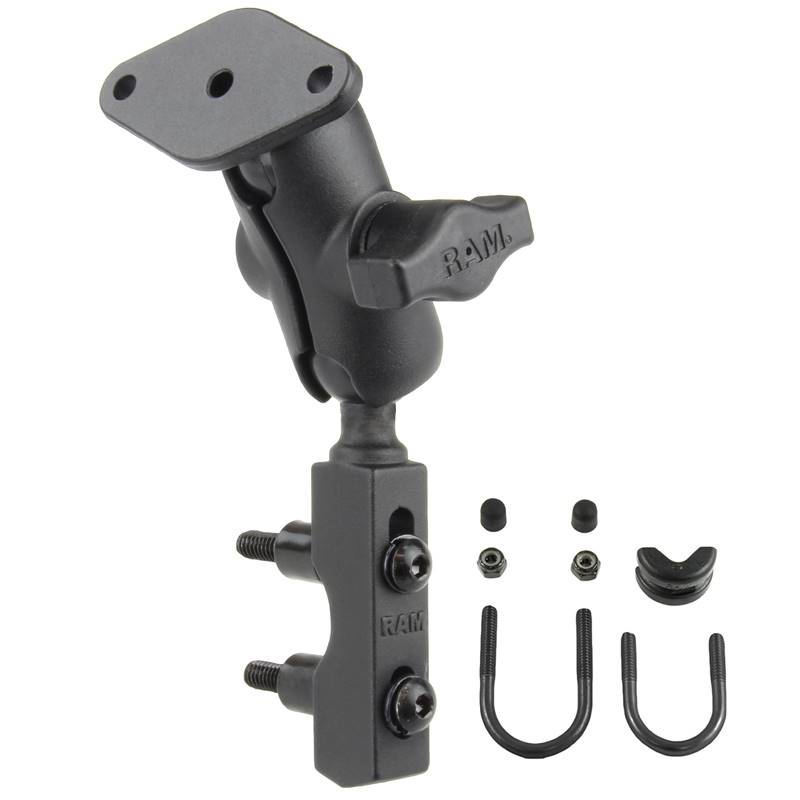

Purchase Includes:
- (QTY. 1), Diamond Plate adaptor (attaches directly to cradle)
- (QTY. 1), Short size double socket arm
- (QTY. 1), Mounting base (mounts to either brake/clutch reservoir or rail/handlebar)
- (QTY. 1), Hardware for mounting to either brake/clutch reservoir or rail/handlebar
- Material:Powder Coated Marine Grade Aluminum
- Ball Size:B Size 1" Rubber Ball
- Note:The RAM-B-174U-A can mount to both the brake/clutch reservoir or any round rail that is 0.5" to 1.25" in diameter. To see if the RAM-B-174U base will mount to your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centers have a minimum width of 0.94" and a maximum of 1.58". The "U" in the part number reflects product packaged in poly bag.
- Weight:0.75 lbs.
