RAM Motorcycle Brake/Clutch Reservoir Mount
RAM Motorcycle Brake/Clutch Reservoir Mount
Regular price
$47.99 USD
Regular price
Sale price
$47.99 USD
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
Ball Size:
B Size 1"
UPC:
793442901812
Mfg Part #:
RAM-B-174U
Availability:
In Stock
Part Number:
RAM-B-174U
Quantity
Couldn't load pickup availability
Share
- Description
- Additional Info
- Components

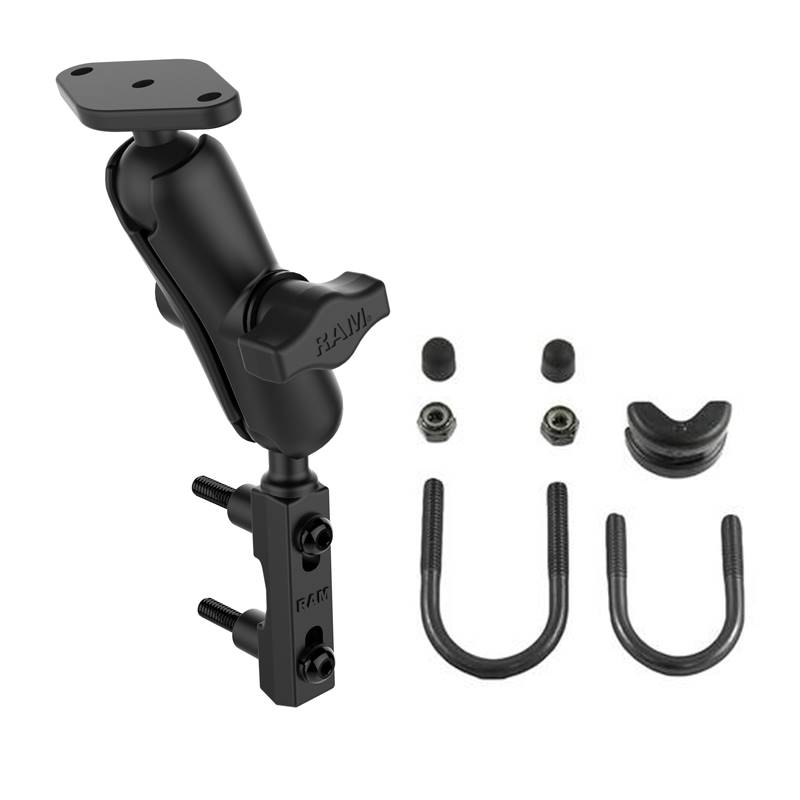

The RAM-B-174U consists of a 1" diameter rubber ball, double socket arm, hardware for mounting to
both brake/clutch reservoirs and rails that are 0.5" to 1.25" in diameter. The mounting hardware for
brake/clutch reservoirs include both standard and metric mounting bolts. Designed into the mount is
a 1" diameter patented rubber ball and socket system with adjustment points at both ends of the
socket arm; this with a twist of the arm knob allows you to move the mount to your optimum viewing
position.
HARDWARE INCLUDED
(2) M6 x 55mm Hex Bolts
(2) #1/4-20 x 2" Hex Bolts
(2) 1/4"-20 x 2.5" Hex Bolts
(2) 1/2" Spacers
(2) 1/4" Split Lock Washers
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
CLAMP RANGE
.5" - 1.25" diameter
SOCKET-TO-SOCKET LENGTH
3"
HOLE PATTERN
2-Hole AMPS: 1.912"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
0.75 lbs.
both brake/clutch reservoirs and rails that are 0.5" to 1.25" in diameter. The mounting hardware for
brake/clutch reservoirs include both standard and metric mounting bolts. Designed into the mount is
a 1" diameter patented rubber ball and socket system with adjustment points at both ends of the
socket arm; this with a twist of the arm knob allows you to move the mount to your optimum viewing
position.
HARDWARE INCLUDED
(2) M6 x 55mm Hex Bolts
(2) #1/4-20 x 2" Hex Bolts
(2) 1/4"-20 x 2.5" Hex Bolts
(2) 1/2" Spacers
(2) 1/4" Split Lock Washers
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
CLAMP RANGE
.5" - 1.25" diameter
SOCKET-TO-SOCKET LENGTH
3"
HOLE PATTERN
2-Hole AMPS: 1.912"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
0.75 lbs.
Purchase Includes:
- (QTY. 1), Base/ball adaptor (attaches directly to cradle)
- (QTY. 1), Standard size double socket arm
- (QTY. 1), Mounting base (mounts to either brake/clutch reservoir or rail/handlebar)
- (QTY. 1), Hardware for mounting to either brake/clutch reservoir or rail/handlebar
- Material:Powder Coated Marine Grade Aluminum
- Ball Size:B Size 1" Rubber Ball
- Note:The RAM-B-174U can mount to both the brake/clutch reservoir or any round rail that is 0.5" to 1.25" in diameter. To see if the RAM-B-174U base will mount to your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centers have a minimum width of 0.94" and a maximum of 1.58". The "U" in the part number reflects product packaged in poly bag.
- Weight:0.75 lbs.
