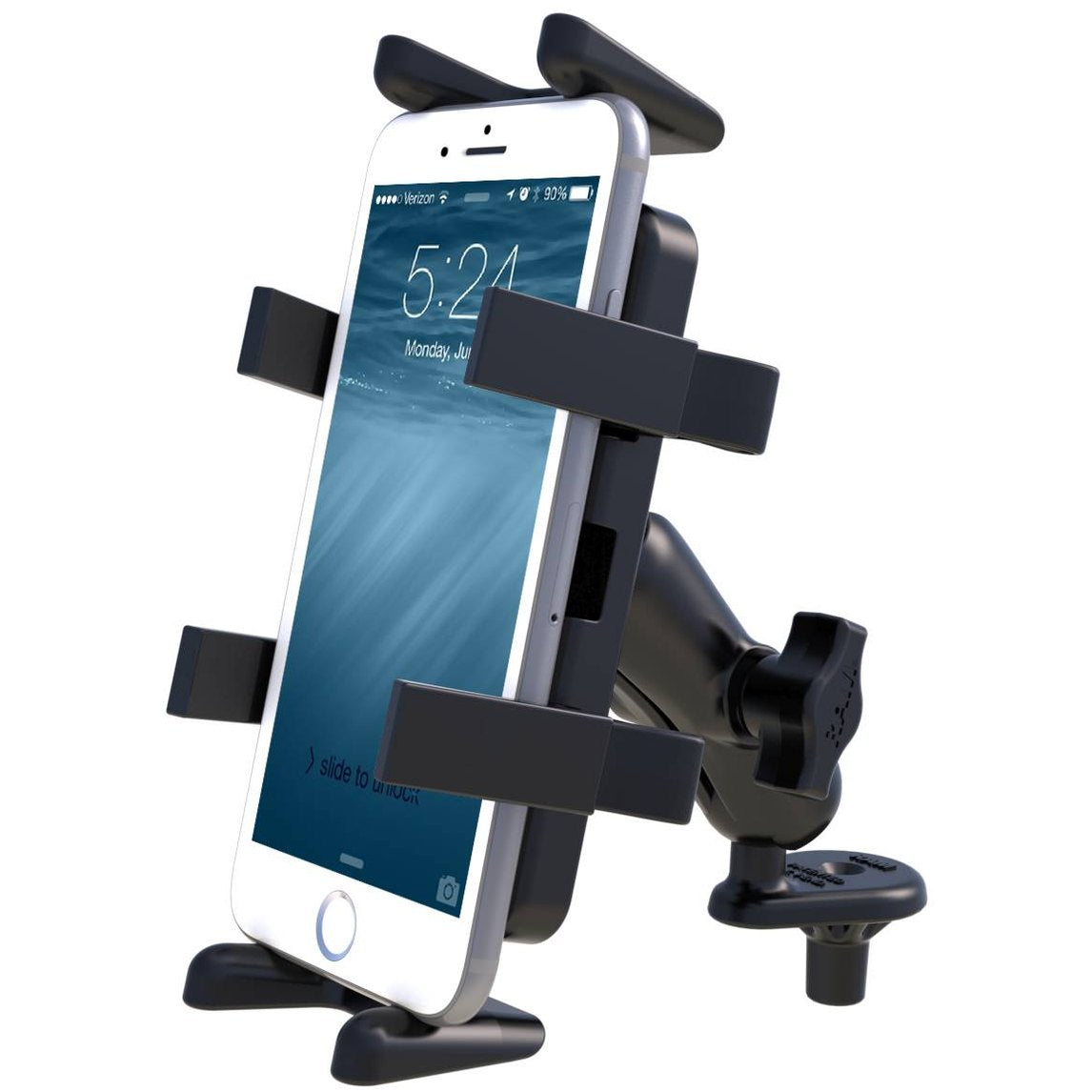

The RAM-B-176-UN4 consists of a fork stem base, double socket arm, diamand adapter base and high
strength universal Finger Grip cradle. This part is designed to fit into the cylindrical bore wall
of fork stems and will work with stems that measure from 12 - 38mm (.5” – 1.49”).
HARDWARE INCLUDED
Assembly Hardware
(1) Expansion Plug for 12mm - 38mm (.5" - 1.49") Fork Stem Holes
(1) M5 x 60mm Machine Screw
(1) Steel Washer Set
(1) Nut Pocket Washer Set
(1) Brass Nylock Nut
HOLDER DIMENSIONS
Height Range: 7.25" max (using optional supports)
Width Range: 1.25" - 3.5"
Max Depth: 1.5"
SOCKET-TO-SOCKET LENGTH
3"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
High strength composite
PACKAGING TYPE
Poly Bag
ADDITIONAL INFORMATION
WEIGHT
1.05 lbs.
strength universal Finger Grip cradle. This part is designed to fit into the cylindrical bore wall
of fork stems and will work with stems that measure from 12 - 38mm (.5” – 1.49”).
HARDWARE INCLUDED
Assembly Hardware
(1) Expansion Plug for 12mm - 38mm (.5" - 1.49") Fork Stem Holes
(1) M5 x 60mm Machine Screw
(1) Steel Washer Set
(1) Nut Pocket Washer Set
(1) Brass Nylock Nut
HOLDER DIMENSIONS
Height Range: 7.25" max (using optional supports)
Width Range: 1.25" - 3.5"
Max Depth: 1.5"
SOCKET-TO-SOCKET LENGTH
3"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
High strength composite
PACKAGING TYPE
Poly Bag
ADDITIONAL INFORMATION
WEIGHT
1.05 lbs.
Dimensions:
- Minimum with Top and Bottom Supports: 5.25"
- Maximum with Top and Bottom Supports: 7.25"
- The top and bottom plates can be removed for larger devices.
Dimensions using Short Arm Clamps:
- Maximum Depth: 0.75"
- Minimum Width: 1.25"
- Maximum Width: 3.0"
Dimensions using Medium Arm Clamps:
- Maximum Depth: 1.25"
- Minimum Width: 1.5"
- Maximum Width: 3.5"
Dimensions using Long Arm Clamps:
- Maximum Depth: 1.6"
- Minimum Width: 2.25"
- Maximum Width: 3.5"
- Material:High Strength Composite &
Powder Coated Marine Grade Aluminum - Ball Size:B Size 1" Rubber Ball
- Plate Dimensions:3" Width x 3" Height
- Note:The "U" in the part number reflects product packaged in poly bag.
- Weight:1.05 lbs.
