RAM Glare Shield Clamp Double Ball Mount

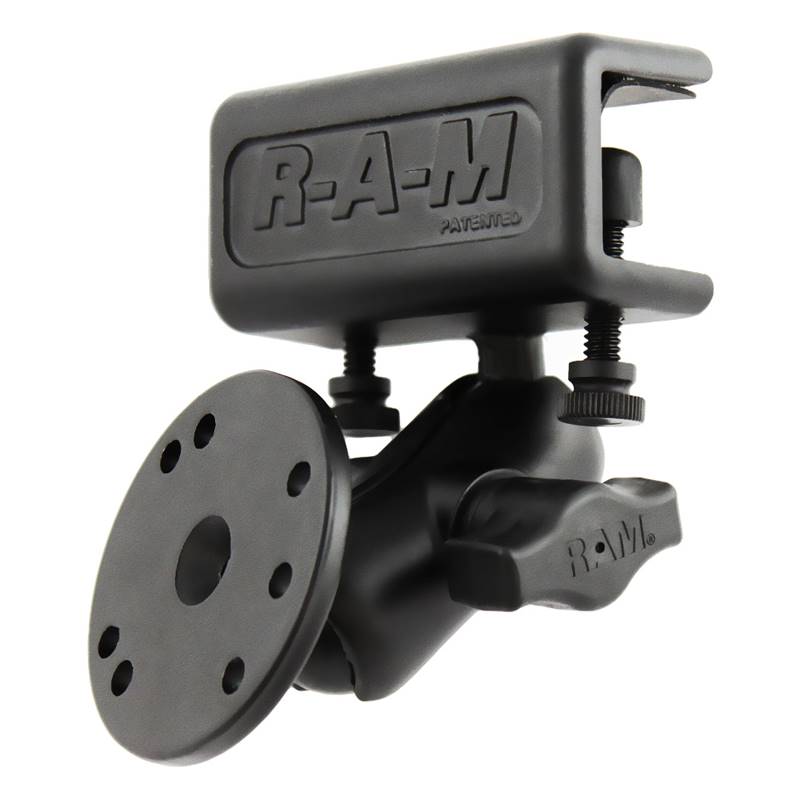

The RAM-B-177-202U consists of a glare shield clamp base, short double socket arm and round base
that contains the universal AMPs hole pattern. This mount is designed to mount to the lip edge of a
flat surface up to 5/8" thick. Popular mounting edges include a car side window edge lip or glare
shield on an airplance. The base has two composite bolts that, when tightened, clamp the base to the
lip surface. A RAM 1" diameter rubber ball is connected to the base allowing you to connect a RAM 1"
diamter arm socket and connection plates to create the perfect mount for your application. The mount
is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points
at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect
viewing angles.

HARDWARE INCLUDED
(2) 1/4"-20 x 1.25" Composite Thumb Screws
(2) Rubber Caps
(1) 1.93" x 3.06" Rubber Adhesive Pad

CLAMP RANGE
.625" max

SOCKET-TO-SOCKET LENGTH
1.75"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum

PACKAGING TYPE
Poly Bag

WEIGHT
0.61 lbs.
