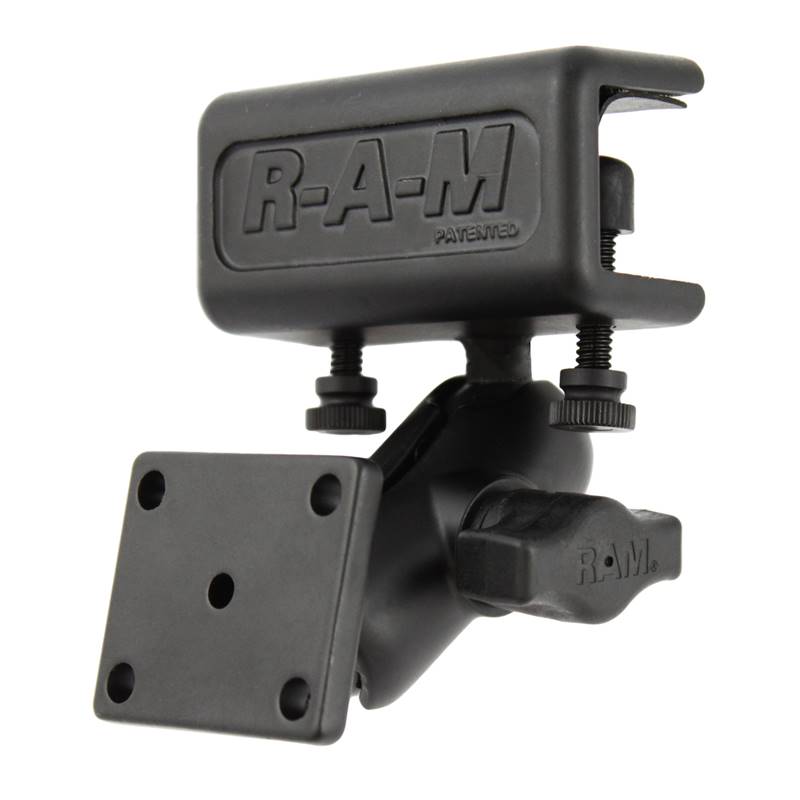

RAM Glare Shield Clamp Double Ball Mount

The RAM-B-177-347U consists of a glare shield clamp base, short double socket arm and 2" x 1.7"
rectangular base that contains the universal AMPs hole pattern. This mount is designed to mount to
the lip edge of a flat surface up to 5/8" thick. Popular mounting edges include a car side window
edge lip or glare shield on an airplance. The base has two composite bolts that, when tightened,
clamp the base to the lip surface. A RAM 1" diameter rubber ball is connected to the base allowing
you to connect a RAM 1" diamter arm socket and connection plates to create the perfect mount for
your application. The mount is designed with a RAM 1" diameter patented rubber ball and socket
system that has adjustment points at both ends of the double socket arm; this allowing for almost
infinite adjustment and perfect viewing angles.

HARDWARE INCLUDED
(2) 1/4"-20 x 1.25" Composite Thumb Screws
(2) Rubber Caps
(1) 1.93" x 3.06" Rubber Adhesive Pad

CLAMP RANGE
.625" max

SOCKET-TO-SOCKET LENGTH
1.75"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum

PACKAGING TYPE
Poly Bag

WEIGHT
0.61 lbs.
