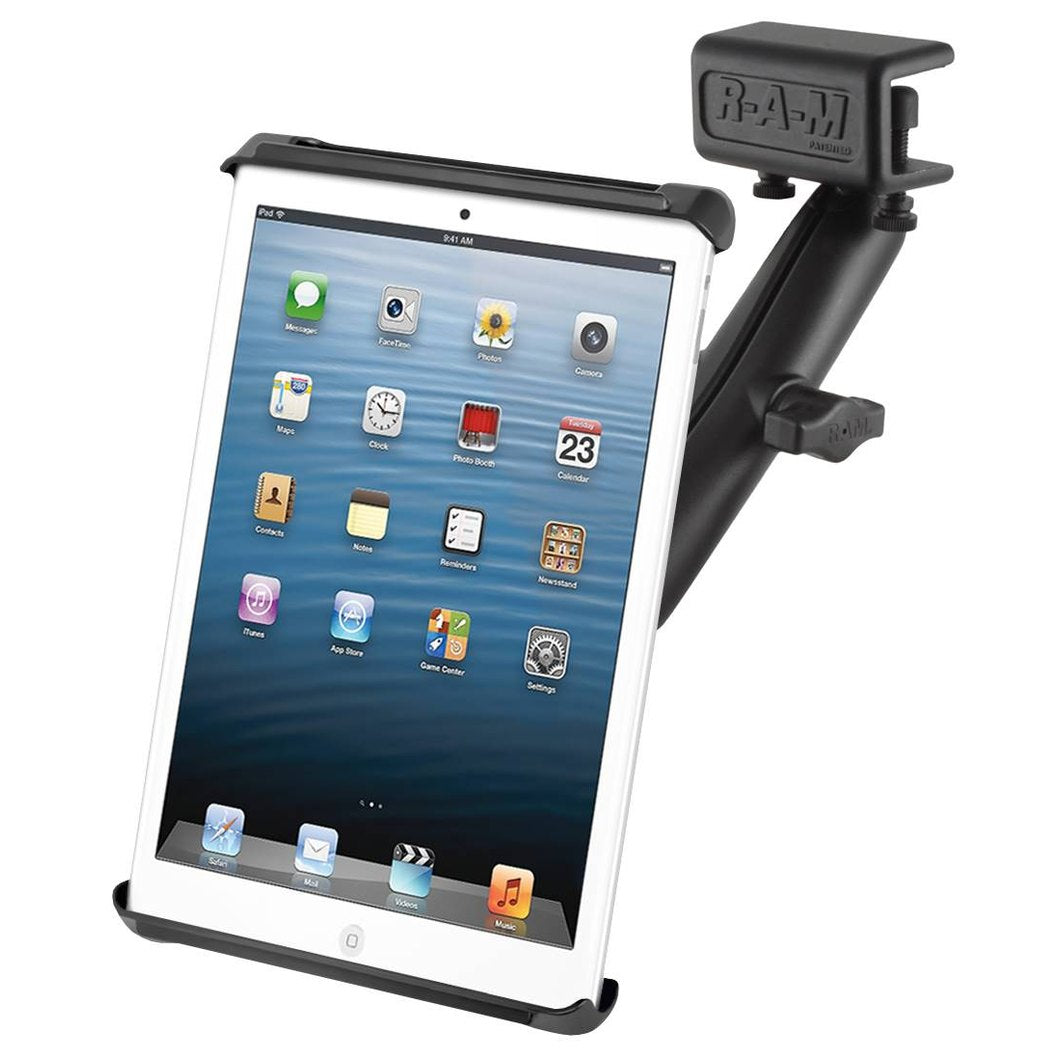

RAM Tab-Tite with Glare Shield Clamp

The RAM-B-177-C-TAB2U consists of a glare shield clamp base, long double socket arm, round base
adapter and Tab-Tite universal clamping cradle. This mount is designed to mount to the lip edge of
a flat surface up to 5/8" thick. Popular mounting edges include a car side window edge lip or glare
shield on an airplane. The base has two composite bolts that, when tightened, clamp the base to the
lip surface. The spring loaded Tab-Tite cradle makes it easy to load and unload your tablet, along
with keeping it secure while on the go. Interchangeable cup ends are designed to optimize the
functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your
tablet can be used just as it was intended. The included backplate is interchangeable with various
size support cups, making it compatible with numerous tablet models. New detachable support cups are
the only components needed for purchase, attach to the backplate for support of your new tablet. The
included back plate is interchangeable with various size support cups, making it compatible with
numerous tablet models. New detachable support cups are the only components needed for purchase,
attach to the back plate for support of your new tablet.

HARDWARE INCLUDED
Assembly Hardware
(2) 1/4"-20 x 1.25" Composite Thumb Screws
(2) Rubber Caps
(1) 1.93" x 3.06" Rubber Adhesive Pad

HOLDER DIMENSIONS
Height Range: 7" - 9.625"
Width Range: 4" - 5.31"
Depth Range: .13" - .56"

CLAMP RANGE
.625" max

SOCKET-TO-SOCKET LENGTH
5.31"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag

WEIGHT
1.4 lbs.
